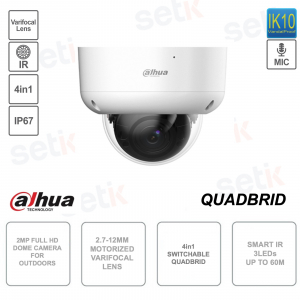

HAC-HDBW1200RA-Z-S6 - è una telecamera dome HDCVI da 2MP progettata per offrire immagini in alta definizione anche in ambienti difficili. Dotata di ottica motorizzata da 2.7–12 mm, consente un'inquadratura flessibile e precisa. Grazie alla tecnologia Starlight e all’illuminatore IR integrato fino a 30 m, assicura visibilità anche in condizioni di scarsa luce. Supporta le principali tecnologie video (CVI/TVI/AHD/CVBS) per la massima compatibilità ed è ideale per installazioni esterne grazie alla protezione IP67 e alla resistenza IK10. Una soluzione solida ed efficiente per la videosorveglianza professionale. Dahua
Riferimento: HAC-HDBW1200RA-Z-S6
Marca: Dahua
EAN: 6923172596659
Disponibilità: 25
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
HAC-HDBW1200RA-Z-S6 | TELECAMERA 4IN1 DA ESTERNO - OTTICA VARIFOCALE 2.7-13.5mm 2MP VERSIONE S6

La Dahua HAC-HDBW1200RA-Z-S6 è una telecamera dome HDCVI da 2MP progettata per offrire immagini ad alta definizione in ambienti interni ed esterni. Grazie all’ottica motorizzata varifocale da 2.7–12 mm e alle tecnologie di visione notturna Smart IR fino a 60 metri, garantisce sorveglianza chiara anche in condizioni di scarsa illuminazione. Il design compatto e la scocca resistente IP67 e IK10 la rendono ideale per applicazioni in ambito residenziale, commerciale e industriale.
Specifiche principali:
- Risoluzione Full HD 1080p (2 Megapixel)
- Ottica varifocale motorizzata da 2.7–12 mm
- Visione notturna Smart IR fino a 60 m
- Compatibile con CVI/CVBS/AHD/TVI (commutabile)
- Custodia resistente IP67 (impermeabile) e IK10 (anti-vandalo)
- Funzioni di immagine: DWDR, BLC, HLC, 2D DNR
- Funzione PoE: alimentazione e trasmissione dati semplificata con un solo cavo
- Installazione rapida con supporto per cavo coassiale lungo fino a 800m in 1080p
Ulteriori dettagli
✅ Protezione IP67 & IK10:
✅ Microfono integrato:

Scheda tecnica
| Model | HAC-HDBW1200RA-Z-S6 |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s |
| Min. Illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 60 m (196.85 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Video | |
| Video Frame Rate |
CVI: |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto |
| Gain Control | 3D NR |
| Image Rotation | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certifications | |
| Certifications |
CE-LVD: EN 62368-1; |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption |
Max 4.1 W (12 VDC, IR on) |
| Environment | |
| Operating Conditions | –30 °C to +60 °C (–22 °F to 140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Conditions | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Ingress Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing | Metal |

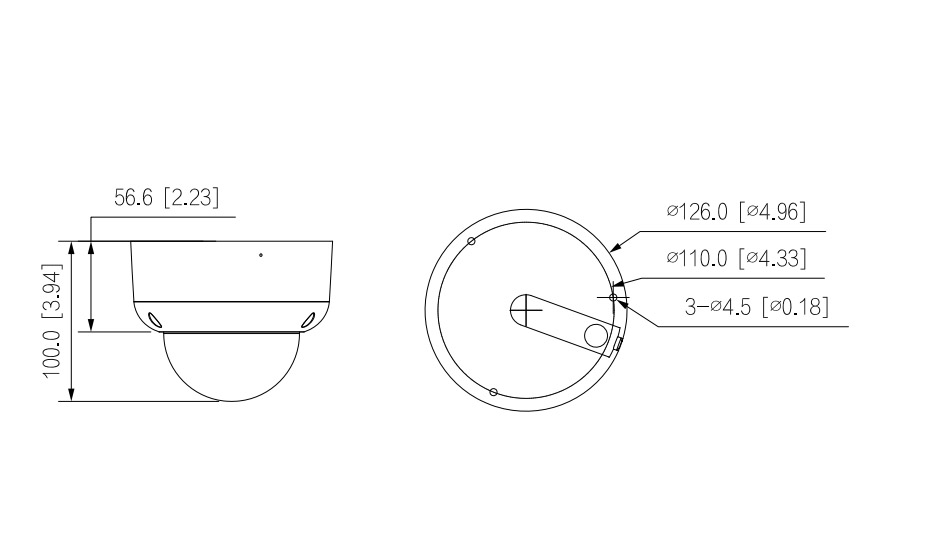

| Dimensions | φ126 mm × 100 mm (φ4.96" × 3.94") |
| Net Weight | 0.63 kg (1.38 lb) |
| Gross Weight | 0.81 kg (1.78 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
