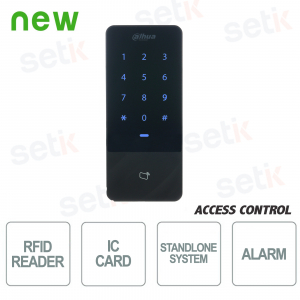

RFID IC CARD PROXIMITY READER STANDALONE WITH TOUCH KEYPAD - DAHUA

|
 DESCRIPTION: Extremely reliable product.  |
Product details
- Waterproof RFID Reader - Dahua Security
 - Useful for access control
 - Touch keyboard with blue backlight
 - Communication: TCP/IP (RJ45 10/100M), RS485, Wiegand 26/34
 - Identification via RFID Cards, Password or Combination
 - Compatible with RFID IC cards
 - 34Bit Processor
 - Fast card reading/response times (<0.1s)
 - Door time out alarm , intrusion alarm , duress alarm and tamper alarm
 - Capacity up to 30,000 users, 60,000 events
 - IP66 protection
 - Power supply: DC 12V 1A
 - Size: 142mm × 62mm × 23mm

Technical data sheet
| Model | ASI1201E-V1 |
| System | |
| Main processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | TCP/IP |
| OSDP Protocol | Yes |
| Basic | |
| Product Type | Standalone |
| Buzzer | Yes |
| Backlight | Yes |
| Casing Material | PC |
| Function | |
| Verification Method | Card;Password;Remote |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Peripheral Card Reader | Includes 1-channel RS-485 card reader and 1-channel Wiegand card reader |
| Issuing Card by Master Card | Yes |
| Multi-User Authentication | Yes |
| RFID | |
| Card Type | IC card |
| Performance | |
| Card Reading Distance | 0mm–60mm (0"–2.36") |
| User | |
| User (Card) Type | Normal user |
| Capacity | |
| User Capacity | 30,000 |
| Card Capacity | 30000 |
| Password Capacity | 30,500 (Includes 30,000 user passwords and 500 public passwords) |
| Record Capacity | 60000 |
| Interface | |
| To PC |
 RJ45 (10/100M)  |
| To Reader |
 Wiegand26/34, RS485  |
| General | |
| Ingress Protection |
 IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)  |
| RTC |
 Yes  |
| Beep Tone |
 Buzzer  |
| Keyboard |
 Sensitive touch keypad with blue backlight  |
| Ingress protection |
 IP55  |
| Power Supply |
 DC 9-15V/100mA  |
| Operating Temperature |
 -30°C to +55°C  |
| Working Humidity |
 10%RH–90%RH (no-condensation)  |
| Dimensions(W×D×H) |
 62.0mm×142.0mm×23.0mm  |
| Weight |
 0.5Kg  |
| Working Environment | Outdoor |
Further details
![]()  |
 This terminal is STANDALONE . This means that it is autonomous, able to manage functions without having to integrate other devices.  |
![]()  |
 32BIT Processor  |
|


  |
 Standalone RFID reader with touch keyboard and identification via: - Combination - Mifare card (13.56MHz)
  |
![]() ![]()  |
 Communication via TCP/IP (RJ45 10/100M), RS485 or Wiegand26/34  |
|

  |
 Up to 30,000 users , 60,000 events  |
![]()  |
 Smart functions: - Intrusion alarm, Door time out alarm, Tamper alarm, Duress alarm  |
![]()  |
 Watchdog function for device anomaly analysis  |
|
 This product is covered by a 24 month warranty.  |
