Controllo Accessi Dahua ASI1201E-V1 Lettore RFID IC tessere, Impermeabile. Standalone sistema autonomo con tastierino touch retroilluminato. Allarme time out porta, allarme intrusione, allarme coercizione e allarme manomissione. Processore 32bit, protocollo RS485, Wiegand 26/34, 30.000 tessere, 60.000 eventi, IP66. Dahua Technology
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

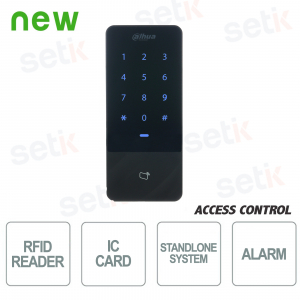

LETTORE DI PROSSIMITA' RFID IC CARD STANDALONE CON TASTIERINO TOUCH - DAHUA

|
DESCRIZIONE: Prodotto estremamente affidabile. |
Dettagli prodotto
- Lettore RFID Impermeabile - Dahua Security
- Utile per controllo accesso
- Tastiera touch con retroilluminazione blu
- Comunicazione: TCP/IP (RJ45 10/100M), RS485, Wiegand 26/34
- Identificazione attraverso Tessere RFID, Password o combinazione
- Compatibile tessere RFID IC
- Processore 34Bit
- Tempi di lettura tessera/risposta veloci (<0.1s)
- Allarme time out porta, allarme intrusione, allarme coercizione e allarme manomissione
- Capacità fino a 30.000 utenti, 60.000 eventi
- Protezione IP66
- Alimentazione: DC 12 V 1 A
- Dimensioni: 142 mm × 62 mm × 23 mm
Scheda tecnica
| Model | ASI1201E-V1 |
| System | |
| Main processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | TCP/IP |
| OSDP Protocol | Yes |
| Basic | |
| Product Type | Standalone |
| Buzzer | Yes |
| Backlight | Yes |
| Casing Material | PC |
| Function | |
| Verification Method | Card;Password;Remote |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Peripheral Card Reader | Includes 1-channel RS-485 card reader and 1-channel Wiegand card reader |
| Issuing Card by Master Card | Yes |
| Multi-user Authentication | Yes |
| RFID | |
| Card Type | IC card |
| Performance | |
| Card Reading Distance | 0 mm–60 mm (0"–2.36") |
| User | |
| User (Card) Type | Normal user |
| Capacity | |
| User Capacity | 30,000 |
| Card Capacity | 30000 |
| Password Capacity | 30,500 (Includes 30,000 user passwords and 500 public passwords) |
| Record Capacity | 60000 |
| Interface | |
| To PC |
RJ45 (10/100M) |
| To Reader |
Wiegand26/34, RS485 |
| General | |
| Ingress Protection |
IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| RTC |
Yes |
| Beep Tone |
Buzzer |
| Keyboard |
Sensitive touch keypad with blue backlight |
| Ingress protection |
IP55 |
| Power Supply |
DC 9-15V/100mA |
| Operating Temperature |
-30°C to +55°C |
| Working Humidity |
10%RH–90%RH (no-condensation) |
| Dimension(W×D×H) |
62.0mm×142.0mm×23.0mm |
| Weight |
0.5Kg |
| Working Environment | Outdoor |
Ulteriori dettagli
![]() |
Questo terminale è STANDALONE. Ciò significa che è autonomo, in grado di gestire le funzioni senza dover integrare altri dispositivi. |
![]() |
Processore 32BIT |
|
|
Lettore RFID autonomo con tastiera touch e identificazione tramite: - Combinazione - Tessera Mifare (13.56MHz)
|
![]() ![]() |
Comunicazione tramite TCP/IP (RJ45 10/100M), RS485 o Wiegand26/34
|
|
|
Fino a 30.000 utenti, 60.000 eventi |
![]() |
Funzioni intelligenti: - Allarme intrusione, Allarme porta time out, Allarme manomissione, Allarme coercizione |
![]() |
Funzione Watchdog per analisi anomalie dispositivo |
|
Questo prodotto è coperto da Garanzia di 24 mesi. |
