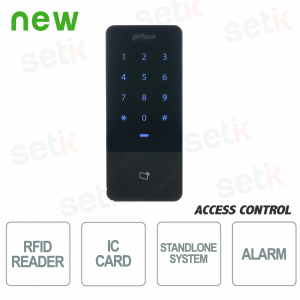

RFID IC CARD PROXIMITY READER STANDALONE WITH TOUCH KEYPAD - DAHUA

DESCRIPTION: Extremely reliable product. |
Product details

- Waterproof RFID Reader - Dahua Security
- Useful for access control
- Touch keyboard with blue backlight
- Communication: TCP/IP (RJ45 10/100M), RS485, Wiegand 26/34
- Identification via RFID Cards, Password or Combination
- Compatible with RFID IC cards
- 34Bit Processor
- Fast card reading/response times (<0.1s)
- Door time out alarm , intrusion alarm , duress alarm and tamper alarm
- Capacity up to 30,000 users, 60,000 events
- IP66 protection
- Power supply: DC 12V 1A
- Size: 142mm × 62mm × 23mm
Technical data sheet
Model | ASI1201E-V1 |
System | |
Main processor | Embedded Processor |
Button Type | Touch button |
Network Protocol | TCP/IP |
OSDP Protocol | Yes |
Basic | |
Product Type | Standalone |
Buzzer | Yes |
Backlight | Yes |
Casing Material | PC |
Function | |
Verification Method | Card;Password;Remote |
Period List | 128 groups |
Holiday Period | 128 groups |
Network Update | Yes |
First User Unlock | Yes |
Remote Verification | Yes |
Peripheral Card Reader | Includes 1-channel RS-485 card reader and 1-channel Wiegand card reader |
Issuing Card by Master Card | Yes |
Multi-User Authentication | Yes |
RFID | |
Card Type | IC card |
Performance | |
Card Reading Distance | 0mm–60mm (0"–2.36") |
User | |
User (Card) Type | Normal user |
Capacity | |
User Capacity | 30,000 |
Card Capacity | 30000 |
Password Capacity | 30,500 (Includes 30,000 user passwords and 500 public passwords) |
Record Capacity | 60000 |
Interface | |
To PC |
RJ45 (10/100M) |
To Reader |
Wiegand26/34, RS485 |
General | |
Ingress Protection |
IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
RTC |
Yes |
Beep Tone |
Buzzer |
Keyboard |
Sensitive touch keypad with blue backlight |
Ingress protection |
IP55 |
Power Supply |
DC 9-15V/100mA |
Operating Temperature |
-30°C to +55°C |
Working Humidity |
10%RH–90%RH (no-condensation) |
Dimensions(W×D×H) |
62.0mm×142.0mm×23.0mm |
Weight |
0.5Kg |
Working Environment | Outdoor |
Further details
![]() |
This terminal is STANDALONE . This means that it is autonomous, able to manage functions without having to integrate other devices. |
![]() |
32BIT Processor |
|
Standalone RFID reader with touch keyboard and identification via: - Combination - Mifare card (13.56MHz) |
![]() ![]() |
Communication via TCP/IP (RJ45 10/100M), RS485 or Wiegand26/34 |
|
Up to 30,000 users , 60,000 events |
![]() |
Smart functions: - Intrusion alarm, Door time out alarm, Tamper alarm, Duress alarm |
![]() |
Watchdog function for device anomaly analysis |
![]() |
This product is covered by a 24 month warranty. |
