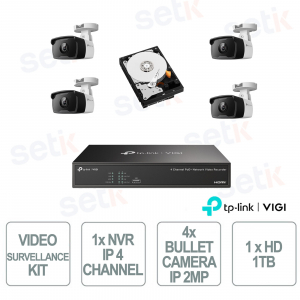

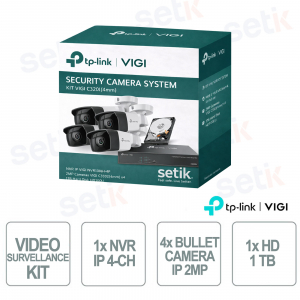

Complete VIGI video surveillance kit 1 x IP NVR ( VIGI NVR1004H-4P ), 4x 2MP bullet cameras ( VIGI C320I(4mm) ) and 1x 1TB hard disk ( HD1000U )
ONLY 10 PIECES!
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

ONLY 10 PIECES!
The VIGI NVR1004H-4P video surveillance kit with 4 VIGI C320I(4mm) cameras and 1TB hard disk is a complete and professional solution for the security of homes, offices and commercial activities.
The VIGI NVR1004H-4P is a 4-channel PoE network video recorder that directly powers cameras via Ethernet, simplifying installation and ensuring a stable connection. It supports H.265+ compression, remote viewing via the VIGI app, and intelligent video stream management to optimize storage and performance.
The VIGI C320I (4mm) cameras offer 4MP resolution with a 4mm fixed lens, infrared night vision up to 30 meters and AI functions such as motion, intrusion and manipulation detection.
Weatherproof with IP67 protection, they ensure effective surveillance even outdoors.
Completing the kit is a 1TB hard drive for continuous recording and secure footage storage, making this system a reliable, ready-to-use choice for 24/7 security.
Product details
✅ 1x VIGI NVR1004H-4P - IP NVR
-
Video Resolution: H.265+/H.265/H.264+/H.264
4 Channel PoE+ 2 Channel 8MP / 4 Channel 4MP
80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
Maximum resolution 8MP
Ports: 2x USB 2.0, 1x RJ-45 bidirectional audio
Supports 1 HDD up to 10TB
-
Smart Detection - Two-Way Audio - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
-
Remote monitoring
✅ 4x VIGI C320I(4mm) – IP bullet cameras
-
Video Resolution: H.265+/H.265/H.264+/H.264
Sensor: 1/3" Progressive Scan CMOS
Illumination: 0 Lux with IR/White Light
-
Frame Rate: 1920x1080, 1280x960, 1280x720
Lens: 4mm fixed lens
✅ 1x HD1000U - Hard Disk
-
Internal Hard Disk
Type: 3.5" SATA Audio/Video
Capacity: 1TB
Technical data sheet
| VIGI NVR1004H-4P | |
|---|---|
| VIDEO AND AUDIO | |
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1.4 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| RECORD MANAGEMENT | |
| Record Mode |
|
| Playback Mode |
|
| Backup Mode |
|
| Playback Function |
|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T/G, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD 1 × 2TB HDD Preinstalled |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| ALARM | |
| General Alarm |
|
| Anomaly Alarm |
|
| Alarm Linkage |
|
| VIGI C320I(4MM) | |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents |
|
| Working Temperature | NVR: -10–55 °C Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions (L x W x H) | 246.2 × 148.2 × 45 mm |
| External power supply | 53.5V DC/1.31A |
| Power Consumption | 4.25 W (without disk) 13.10 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| ROOM | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. Illumination | 0 Lux with IR/white light |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| LENS | |
| Focal Lens | 4 mm |
| Openings | F2.0 |
| Focus | Fixed |
| FOV | 74.6°/41.3°/88.1° (H/V/D) |
| Lens Mount | M12 |
| ILLUMINATOR | |
| IR Range | 30m |
| Wavelength | 850nm |
| COMPRESSION STANDARD | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| SMART FEATURE-SET | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned, Object Detection, Object Removal Detection, Vehicle Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| IMAGE | |
| Max. Resolution | 2MP (1920 × 1080) |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, Rotation(90°/270°) |
| Day/Night Switch | Day/Night/Auto/Schedule |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening |
| API | ONVIF |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI Security Manager, VIGI app |
| INTERFACE | |
| Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Video Output | No |
| Reset Button | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Power Supply | PoE (802.3af/at, class 0) |
| Power Consumption | PoE: Class 0 |
| Ingression Protection | IP67 |
| Material | Plastic |
| Product Dimensions (L x W x H) | 174 × 74 × 71 mm |
| Certifications | CE/BSMI/VCCI/ONVIF |
