Video Surveillance Kit – 1 NVR + 4 Bullet Cameras + 1 TB Hard Disk - Vigi

Video Surveillance Kit – 1 NVR + 4 Bullet Cameras + 1 TB Hard Disk - Vigi

IN DER FÖRDERUNG -45% Neu

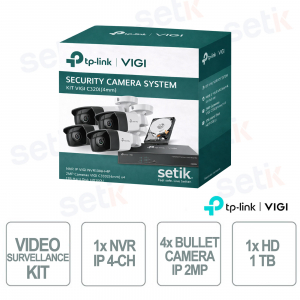

Complete VIGI video surveillance kit 1 x IP NVR ( VIGI NVR1004H-4P ), 4x 2MP bullet cameras ( VIGI C320I(4mm) ) and 1x 1TB hard disk ( HD1000U )


ONLY 10 PIECES!


Artikel-Nr.: KIT VIGI C320I(4MM)

Marke: VIGI

Disponibilità: 10

Manufacturer Object ( [id] => 52 [name] => VIGI [description] =>

Die Geschichte von VIGI reicht bis zur zunehmenden Nachfrage nach hochwertigen Videoüberwachungslösungen zurück. Mit dem wachsenden Bewusstsein für Sicherheit suchten die Menschen nach zuverlässigen Lösungen, um ihre Räume zu überwachen und zu schützen. TP-Link reagierte auf diese Bedürfnisse, indem sie die Marke VIGI einführten
VIGI-Produkte umfassen verschiedene Arten von Überwachungskameras, wie Bullet-Kameras, Dome-Kameras, PTZ-Kameras und mehr. Diese Kameras verfügen über fortschrittliche Funktionen wie hochauflösende Videoauflösung, Nachtsicht, Bewegungserkennung, Push-Benachrichtigungen und vieles mehr. Darüber hinaus bieten viele VIGI-Kameras die Möglichkeit, Videos auf microSD-Karten zu speichern oder Cloud-Speicherdienste zu verwenden.
TP-Link hat sich in der Netzwerkbranche einen Ruf für Zuverlässigkeit und Qualität erworben, und die Marke VIGI setzt diese Tradition im Bereich der Videosicherheit fort. Mit einem konstanten Engagement für Innovation und Qualität erweitert TP-Link kontinuierlich die Produktpalette von VIGI, um den wachsenden Sicherheitsanforderungen des Marktes gerecht zu werden.

[short_description] =>


Die Marke VIGI wurde von TP-Link als Linie fortschrittlicher Videoüberwachungsprodukte eingeführt, die sich auf Heim- und Gewerbesicherheit konzentriert. Diese Produktlinie wurde entwickelt, um zuverlässige, leistungsstarke und benutzerfreundliche Videoüberwachungslösungen anzubieten, um Menschen dabei zu helfen, ihre Häuser, Unternehmen und Eigentum zu schützen.

[id_address] => [date_add] => 2024-06-11 17:20:54 [date_upd] => 2025-09-12 15:53:36 [link_rewrite] => vigi [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Made VIGI

ONLY 10 PIECES!


The VIGI NVR1004H-4P video surveillance kit with 4 VIGI C320I(4mm) cameras and 1TB hard disk is a complete and professional solution for the security of homes, offices and commercial activities.

The VIGI NVR1004H-4P is a 4-channel PoE network video recorder that directly powers cameras via Ethernet, simplifying installation and ensuring a stable connection. It supports H.265+ compression, remote viewing via the VIGI app, and intelligent video stream management to optimize storage and performance.

The VIGI C320I (4mm) cameras offer 4MP resolution with a 4mm fixed lens, infrared night vision up to 30 meters and AI functions such as motion, intrusion and manipulation detection.

Weatherproof with IP67 protection, they ensure effective surveillance even outdoors.

Completing the kit is a 1TB hard drive for continuous recording and secure footage storage, making this system a reliable, ready-to-use choice for 24/7 security.

Product details

1x VIGI NVR1004H-4P - IP NVR

  • Video Resolution: H.265+/H.265/H.264+/H.264

    4 Channel PoE+ 2 Channel 8MP / 4 Channel 4MP

    80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth

    Maximum resolution 8MP

    Ports: 2x USB 2.0, 1x RJ-45 bidirectional audio

    Supports 1 HDD up to 10TB

  • Smart Detection - Two-Way Audio - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame

  • Remote monitoring

4x VIGI C320I(4mm) – IP bullet cameras

  • Video Resolution: H.265+/H.265/H.264+/H.264

    Sensor: 1/3" Progressive Scan CMOS

    Illumination: 0 Lux with IR/White Light

  • Frame Rate: 1920x1080, 1280x960, 1280x720

    Lens: 4mm fixed lens

1x HD1000U - Hard Disk

  • Internal Hard Disk

    Type: 3.5" SATA Audio/Video

    Capacity: 1TB

Technical data sheet

VIGI NVR1004H-4P
VIDEO AND AUDIO
IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1.4
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 4-Channel
Capability 25fps:
2-ch @ 8MP, 4-ch @ 4MP
30fps:
4-ch @ 4MP, 3-ch @ 5MP
RECORD MANAGEMENT
Record Mode
  • Manual Recording
  • Scheduling Recording
  • Motion Detection Recording
Playback Mode
  • Instant Playback
  • Regular Playback
  • Tag Playback
  • Event Playback
Backup Mode
  • Regular Backup
  • Video Clip Backup
Playback Function
  • Play
  • Breaks
  • Stop
  • Fast Forward
  • Fast Backward
  • Play By Frame
  • Full Screen
  • Video Clip
  • Export Clip
  • Digital Zoom
  • Lock Recording
  • Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S/T/G, CGI
EXTERNAL INTERFACE
Network Interface 1, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD
1 × 2TB HDD Preinstalled
POE
Standard 802.3at/af Compliant
Interface 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 53 W△ Available for All PoE+ Ports, 30 W Max per Port
ALARM
General Alarm
  • Motion Detection
  • Video Tampering
  • Scene Change Detection
  • Line-Crossing Detection
  • Intrusion Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Loitering Detection
  • Object Abandoned/Removal Detection
  • Vehicle Detection
  • Human Detection
  • Abnormal Sound Detection
  • Smart Frame
Note: The alarm function requires the use of a camera
Anomaly Alarm
  • Video Loss
  • Offline and IP Conflict
  • Disk Exception
  • Login Exception
Note: The alarm function requires the use of a camera
Alarm Linkage
  • Recording
  • White Light Alarm
  • Buzzer
  • Log
  • Audible Alarm
Note: The alarm function requires the use of a camera
VIGI C320I(4MM)
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents
  • VIGI Network Video Recorder
  • Power Adapter
  • HDD Screws
  • Mouse
  • Quick Installation Guide
Working Temperature NVR: -10–55 °C
Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions (L x W x H) 246.2 × 148.2 × 45 mm
External power supply 53.5V DC/1.31A
Power Consumption 4.25 W (without disk)
13.10 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
ROOM
Image Sensor 1/3” Progressive Scan CMOS
Min. Illumination 0 Lux with IR/white light
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR DWDR
LENS
Focal Lens 4 mm
Openings F2.0
Focus Fixed
FOV 74.6°/41.3°/88.1° (H/V/D)
Lens Mount M12
ILLUMINATOR
IR Range 30m
Wavelength 850nm
COMPRESSION STANDARD
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned, Object Detection, Object Removal Detection, Vehicle Detection
Basic Event Motion Detection, Video Tampering Detection, Exception (Illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
Max. Resolution 2MP (1920 × 1080)
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920x1080, 1280x960, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Image Settings Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, Rotation(90°/270°)
Day/Night Switch Day/Night/Auto/Schedule
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
General Function Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening
API ONVIF
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI Security Manager, VIGI app
INTERFACE
Communication Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Video Output No
Reset Button N/A
GENERAL
Operating Temperature -30–60 °C
Power Supply PoE (802.3af/at, class 0)
Power Consumption PoE: Class 0
Ingression Protection IP67
Material Plastic
Product Dimensions (L x W x H) 174 × 74 × 71 mm
Certifications CE/BSMI/VCCI/ONVIF
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
