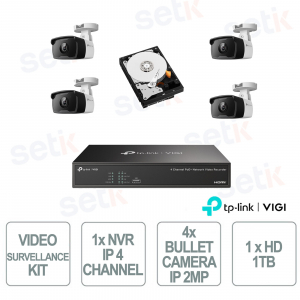

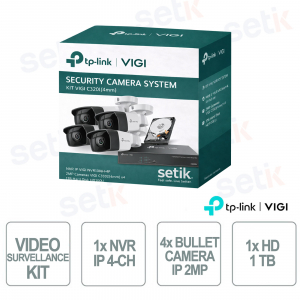

Kit videosorveglianza VIGI completo 1 x NVR IP (VIGI NVR1004H-4P), 4x Telecamere bullet 2MP (VIGI C320I(4mm)) e 1x Hard disk 1TB (HD1000U)
SOLO 10 PEZZI!
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
SOLO 10 PEZZI!
Il kit di videosorveglianza VIGI NVR1004H-4P con 4 telecamere VIGI C320I(4mm) e hard disk da 1TB è una soluzione completa e professionale per la sicurezza di abitazioni, uffici e attività commerciali.
Il VIGI NVR1004H-4P è un videoregistratore di rete PoE con 4 canali, che alimenta direttamente le telecamere tramite cavo Ethernet, semplificando l’installazione e garantendo connessione stabile. Supporta compressione H.265+, visione remota via app VIGI e gestione intelligente dei flussi video per ottimizzare spazio e prestazioni.
Le telecamere VIGI C320I (4mm) offrono risoluzione 4MP con ottica fissa da 4mm, visione notturna a infrarossi fino a 30 metri e funzioni AI come rilevamento di movimento, intrusione e manipolazione.
Resistenti agli agenti atmosferici con protezione IP67, assicurano sorveglianza efficace anche in esterno.
Completano il kit un hard disk da 1TB per registrazioni continue e archiviazione sicura dei filmati, rendendo questo sistema una scelta affidabile e pronta all’uso per una sicurezza 24/7.
Dettagli prodotto
✅ 1x VIGI NVR1004H-4P - NVR IP
-
Risoluzione Video: H.265+/H.265/H.264+/H.264
4 Canali PoE+ 2 canali 8MP / 4 canali 4MP
80 Mbps di larghezza di banda in entrata e 60 Mbps di larghezza di banda in uscita
Risoluzione massima 8MP
Porte: 2x USB 2.0, 1x RJ-45 audio bidirezionale
Supporta 1 HDD fino a 10TB
-
Smart Detection - Audio bidirezionale - Motion Detection - rilevamento di oggetti abbandonati - rilevamento di veicoli e persone - smart frame
-
Monitoraggio da remoto
✅ 4x VIGI C320I(4mm) – Telecamere bullet IP
-
Risoluzione Video: H.265+/H.265/H.264+/H.264
Sensore: 1/3" Progressive Scan CMOS
Illuminazione: 0 Lux con IR/Luce Bianca
-
Frequenza dei Fotogrammi: 1920x1080, 1280x960, 1280x720
Obiettivo: Lente fissa 4 mm
✅ 1x HD1000U - Hard Dirsk
-
Hard Disk Interno
Tipologia: Audio/Video SATA 3,5"
Capacità: 1TB
Scheda tecnica
| VIGI NVR1004H-4P | |
|---|---|
| VIDEO AND AUDIO | |
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1,4 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| RECORD MANAGEMENT | |
| Record Mode |
|
| Playback Mode |
|
| Backup Mode |
|
| Playback Function |
|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T/G, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD 1 × 2TB HDD Preinstalled |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| ALARM | |
| General Alarm |
|
| Anomaly Alarm |
|
| Alarm Linkage |
|
| VIGI C320I(4MM) | |
| GENERALE | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Contenuto della confezione |
|
| Working Temperature | NVR: -10–55 °C Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensioni ( L x P x A ) | 246.2 × 148.2 × 45 mm |
| Alimentazione esterna | 53.5V DC/1.31A |
| Power Consumption | 4.25 W (without disk) 13.10 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. Illumination | 0 Lux with IR/white light |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| LENS | |
| Focal Lens | 4 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | 74.6°/41.3°/88.1° (H/V/D) |
| Lens Mount | M12 |
| ILLUMINATOR | |
| IR Range | 30m |
| Wavelength | 850nm |
| COMPRESSION STANDARD | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| SMART FEATURE-SET | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned, Object Detection, Object Removal Detection, Vehicle Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| IMAGE | |
| Max. Resolution | 2MP (1920 × 1080) |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, Rotation(90°/270°) |
| Day/Night Switch | Day/Night/Auto/Schedule |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| API | ONVIF |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI Security Manager, VIGI app |
| INTERFACE | |
| Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Video Output | No |
| Reset Button | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Power Supply | PoE (802.3af/at, class 0) |
| Power Consumption | PoE: Class 0 |
| Ingression Protection | IP67 |
| Material | Plastic |
| Product Dimensions (L x W x H) | 174 × 74 × 71 mm |
| Certifications | CE/BSMI/VCCI/ONVIF |
