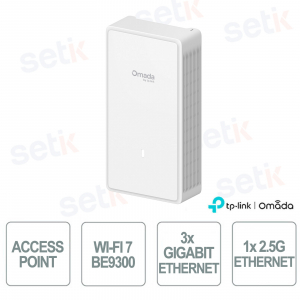

TP-Link Omada EAP775-Wall Tri-Band BE9300 Wi-Fi 7 Access Point, 2.5G PoE Ports, Omada SDN, 380+ Clients, Wall Mount

TP-Link Omada EAP775-Wall Tri-Band BE9300 Wi-Fi 7 Access Point, 2.5G PoE Ports, Omada SDN, 380+ Clients, Wall Mount

 
nuevo

The EAP775-Wall is a wall-mounted tri-band Wi-Fi 7 access point designed to offer high-performance connectivity in hotels, offices and enterprise environments. Thanks to the BE9300 Wi-Fi 7 technology with speeds up to 10.7 Gbps , 6-stream tri-band configuration (2.4 GHz, 5 GHz and 6 GHz) and support for Multi-Link Operation and 4K-QAM , it guarantees fast and stable connections even with numerous devices. It integrates 2.5G multigigabit ports with PoE++/PoE+ power supply and Gigabit ports with PoE Out to power devices such as IP phones or cameras. The paintable cover and wall-mounted design allows for discreet integration into environments. With centralized management Omada SDN, Mesh and Seamless Roaming , it supports over 380 simultaneous clients and coverage up to 100 m² , ideal for professional wireless networks. Omada

Technical Data Sheet

referencia : EAP775-Wall

brand : OMADA

EAN: 1210002619080

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

EAP775-Wall | ACCESS POINT WALL PLATE WI-FI 7 BE9300


Made Omada

The TP-Link Omada EAP775-Wall is a tri-band Wi-Fi 7 wall-mounted access point designed to offer high-performance wireless connectivity in hotels, offices and professional environments. Thanks to the Wi-Fi 7 BE9300 technology with speeds of up to 10.7 Gbps and the 6-stream tri-band configuration (2.4 GHz, 5 GHz and 6 GHz) it guarantees fast, stable and low-latency connections. It integrates 2.5G multigigabit ports with PoE++/PoE+ support and Gigabit ports with PoE Out to power devices such as IP phones or cameras. The paintable cover and wall-mounted design allows for discreet integration into environments. With centralized cloud management Omada SDN, Mesh and Seamless Roaming , it supports over 380 simultaneous clients and coverage of up to 100 m² , ideal for high-density business wireless networks.

Main specifications:

- BE9300 tri-band Wi-Fi 7 up to 10.7 Gbps

- 6-stream configuration with 2.4 GHz, 5 GHz and 6 GHz bands

- Advanced Wi-Fi 7 technologies such as Multi-Link Operation, Multi-RUs and 4K-QAM

- 2 multigigabit 2.5G ports and 3 Gigabit Ethernet ports

- Support PoE++/PoE+ input and PoE Out to power other devices

- Centralized management via Omada SDN Cloud platform

- Support up to 380+ devices with wireless coverage up to 100m²

- Wall-mounted design with paintable cover for aesthetic integration

Further details

✅ 6-Channel Tri-Band Wi-Fi 7:
The access point integrates tri-band Wi-Fi 7 technology with 6-stream architecture on the 2.4 GHz, 5 GHz and 6 GHz bands, capable of reaching speeds of up to 10.7 Gbps , offering ultra-fast wireless connections and greater capacity to manage numerous devices simultaneously in high-density professional environments.
✅ Versatile and elegant design:
The device is designed with a paintable cover and a compact wall-mounted design , allowing for perfect aesthetic integration in hotels, offices or business environments without altering the style of the environment thanks to the possibility of customizing the color of the cover.
✅ Anti-theft design:
The wall-mounted junction box structure and dedicated mounting bracket allow for secure and stable mounting of the device, reducing the risk of tampering or unauthorized removal in professional installations.
✅ Ports with PoE flexibility:
The access point integrates 2 2.5G multigigabit ports and 3 Gigabit Ethernet ports , with PoE++/PoE+ input support and configurable PoE Out , allowing you to power devices such as IP phones, cameras or other network devices directly from the access point.
✅ Reduced latency and interference:
Thanks to Multi-Link Operation (MLO), Multi-RUs and 4K-QAM modulation technologies, the device improves wireless spectrum management by reducing latency, congestion and interference , ensuring more stable connections and high performance.
✅ Simple and intuitive installation:
The system supports quick setup via Omada SDN, mobile app or web interface , with automatic device discovery and one-click adoption capabilities, making network deployment easy even in complex infrastructures.
✅ Advanced features:
The access point offers Omada SDN cloud centralized management, Mesh Wi-Fi, Seamless Roaming and advanced WPA3 security , enabling complete control of your business wireless network with advanced monitoring and optimization tools.
✅ Shared Wi-Fi connection:
Designed for multi-user environments such as hotels or offices, it supports over 380 simultaneously connected devices with coverage of up to 100 m² , ensuring a dedicated and stable Wi-Fi network for each room or work area .

Technical data sheet

Model EAP775-Wall
HARDWARE FEATURES
Interface Uplink: 1× 2.5G Ethernet Port
Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports
(Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input.)
Physical security lock Yes
Key Reset
Diet 802.3bt/at PoE
PoE Out Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.
The PoE Out feature requires 802.3bt input.
Energy consumption 45W (with 25W PoE Out)
Dimensions (L x W x H) 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)
Antenna 6× Internal Antennas
2.4 GHz: 2× 5 dBi
5 GHz: 4× 5.5 dBi
6 GHz: 2× 5.5 dBi
Bluetooth V5.2
Mounting type Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 1050 ft² (100 m²)*
Concurrent Clients 380+**
Wireless standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Wireless functionality 320 MHz Bandwidth‡
MLO‡
4K-QAM‡
Multi-RUs‡
24 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
Seamless Roaming△
Beamforming
Band Steering
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless security Captive Portal Authentication△
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power 4-22 dBm (2.4 GHz)
4-22 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
4-22 dBm (6 GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requires the use of an Omada controller.
Email alerts Yes
LED ON/OFF Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
Local and remote system logs System Log
SSH Yes
Web-based management Yes
L3 Management Yes
Multi-site Management Yes
VLAN Management Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHER
Certification

FCC, RoHS
Package Contents

EAP775-Wall
Paintable Cover
Installation Guide
Mounting Kits
Environment

Operating Temperature: 0°C–40°C (32°F–104°F);
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
