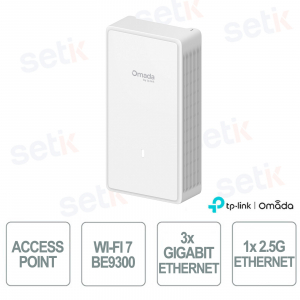

Access Point Wi-Fi 7 TP-Link Omada EAP775-Wall Tri-Band BE9300, porte 2.5G PoE, Omada SDN, 380+ client, installazione a parete
EAP775-Wall è un access point Wi-Fi 7 tri-band da parete progettato per offrire connettività ad alte prestazioni in hotel, uffici e ambienti enterprise. Grazie alla tecnologia Wi-Fi 7 BE9300 con velocità fino a 10.7 Gbps, configurazione 6-stream tri-band (2.4 GHz, 5 GHz e 6 GHz) e supporto Multi-Link Operation e 4K-QAM, garantisce connessioni rapide e stabili anche con numerosi dispositivi. Integra porte multigigabit 2.5G con alimentazione PoE++/PoE+ e porte Gigabit con PoE Out per alimentare dispositivi come telefoni IP o telecamere. Il design con cover verniciabile e installazione a parete permette un’integrazione discreta negli ambienti. Con gestione centralizzata Omada SDN, Mesh e Seamless Roaming, supporta oltre 380 client simultanei e copertura fino a 100 m², ideale per reti wireless professionali. Omada
EAP775-Wall | ACCESS POINT WALL PLATE WI-FI 7 BE9300

Il TP-Link Omada EAP775-Wall è un access point Wi-Fi 7 tri-band da parete progettato per offrire connettività wireless ad alte prestazioni in hotel, uffici e ambienti professionali. Grazie alla tecnologia Wi-Fi 7 BE9300 con velocità fino a 10.7 Gbps e alla configurazione 6-stream tri-band (2.4 GHz, 5 GHz e 6 GHz) garantisce connessioni veloci, stabili e a bassa latenza. Integra porte multigigabit 2.5G con supporto PoE++/PoE+ e porte Gigabit con PoE Out per alimentare dispositivi come telefoni IP o telecamere. Il design con cover verniciabile e installazione a parete permette un’integrazione discreta negli ambienti. Con gestione cloud centralizzata Omada SDN, Mesh e Seamless Roaming, supporta oltre 380 client simultanei e copertura fino a 100 m², ideale per reti wireless aziendali ad alta densità.
Specifiche principali:
- Wi-Fi 7 tri-band BE9300 fino a 10.7 Gbps
- Configurazione 6-stream con bande 2.4 GHz, 5 GHz e 6 GHz
- Tecnologie Wi-Fi 7 avanzate come Multi-Link Operation, Multi-RUs e 4K-QAM
- 2 porte multigigabit 2.5G e 3 porte Gigabit Ethernet
- Supporto PoE++/PoE+ in ingresso e PoE Out per alimentare altri dispositivi
- Gestione centralizzata tramite piattaforma Omada SDN Cloud
- Supporto fino a 380+ dispositivi con copertura wireless fino a 100 m²
- Design da parete con cover verniciabile per integrazione estetica
Ulteriori dettagli
Scheda tecnica
| Model | EAP775-Wall |
| CARATTERISTICHE HARDWARE | |
| Interfaccia | Uplink: 1× 2.5G Ethernet Port Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input.) |
| Physical security lock | Yes |
| Tasto | Reset |
| Alimentazione | 802.3bt/at PoE |
| PoE Out | Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input. |
| Consumo energetico | 45W (with 25W PoE Out) |
| Dimensioni ( L x P x A ) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |
| Antenna | 6× Internal Antennas 2.4 GHz: 2× 5 dBi 5 GHz: 4× 5.5 dBi 6 GHz: 2× 5.5 dBi |
| Bluetooth | V5.2 |
| Tipo di montaggio | Wall Mounting (Kits included) |
| CARATTERISTICHE WIRELESS | |
| Coverage | 1050 ft² (100 m²)* |
| Concurrent Clients | 380+** |
| Standard wireless | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequenza | 6 GHz, 5 GHz, and 2.4 GHz |
| Funzionalità wireless | 320 MHz Bandwidth‡ MLO‡ 4K-QAM‡ Multi-RUs‡ 24 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming△ Beamforming Band Steering Rate Limit (Based on SSID/Client) Load Balance Airtime Fairness Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP |
| Sicurezza wireless | Captive Portal Authentication△ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Potenza di trasmissione | 4-22 dBm (2.4 GHz) 4-22 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3) 4-22 dBm (6 GHz) |
| GESTIONE | |
| Omada App | Yes |
| Centralized Management | Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Avvisi e-mail | Yes |
| LED ON/OFF | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| Log di sistema locale e remoto | System Log |
| SSH | Yes |
| Gestione web-based | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| ALTRO | |
| Certificazione |
FCC, RoHS |
| Contenuto della confezione |
EAP775-Wall |
| Ambiente |
Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
