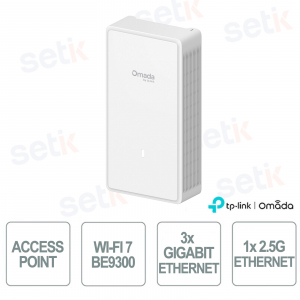

TP-Link Omada EAP775-Wall Tri-Band BE9300 Wi-Fi 7 Access Point, 2.5G PoE Ports, Omada SDN, 380+ Clients, Wall Mount

TP-Link Omada EAP775-Wall Tri-Band BE9300 Wi-Fi 7 Access Point, 2.5G PoE Ports, Omada SDN, 380+ Clients, Wall Mount

New

The EAP775-Wall is a wall-mounted tri-band Wi-Fi 7 access point designed to offer high-performance connectivity in hotels, offices and enterprise environments. Thanks to the BE9300 Wi-Fi 7 technology with speeds up to 10.7 Gbps , 6-stream tri-band configuration (2.4 GHz, 5 GHz and 6 GHz) and support for Multi-Link Operation and 4K-QAM , it guarantees fast and stable connections even with numerous devices. It integrates 2.5G multigigabit ports with PoE++/PoE+ power supply and Gigabit ports with PoE Out to power devices such as IP phones or cameras. The paintable cover and wall-mounted design allows for discreet integration into environments. With centralized management Omada SDN, Mesh and Seamless Roaming , it supports over 380 simultaneous clients and coverage up to 100 m² , ideal for professional wireless networks. Omada

Technical Data Sheet

Reference: EAP775-Wall

Brand: OMADA

EAN: 1210002619080

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


EAP775-Wall | ACCESS POINT WALL PLATE WI-FI 7 BE9300


Made Omada

The TP-Link Omada EAP775-Wall is a tri-band Wi-Fi 7 wall-mounted access point designed to offer high-performance wireless connectivity in hotels, offices and professional environments. Thanks to the Wi-Fi 7 BE9300 technology with speeds of up to 10.7 Gbps and the 6-stream tri-band configuration (2.4 GHz, 5 GHz and 6 GHz) it guarantees fast, stable and low-latency connections. It integrates 2.5G multigigabit ports with PoE++/PoE+ support and Gigabit ports with PoE Out to power devices such as IP phones or cameras. The paintable cover and wall-mounted design allows for discreet integration into environments. With centralized cloud management Omada SDN, Mesh and Seamless Roaming , it supports over 380 simultaneous clients and coverage of up to 100 m² , ideal for high-density business wireless networks.

Main specifications:

- BE9300 tri-band Wi-Fi 7 up to 10.7 Gbps

- 6-stream configuration with 2.4 GHz, 5 GHz and 6 GHz bands

- Advanced Wi-Fi 7 technologies such as Multi-Link Operation, Multi-RUs and 4K-QAM

- 2 multigigabit 2.5G ports and 3 Gigabit Ethernet ports

- Support PoE++/PoE+ input and PoE Out to power other devices

- Centralized management via Omada SDN Cloud platform

- Support up to 380+ devices with wireless coverage up to 100m²

- Wall-mounted design with paintable cover for aesthetic integration

Further details

6-Channel Tri-Band Wi-Fi 7:
The access point integrates tri-band Wi-Fi 7 technology with 6-stream architecture on the 2.4 GHz, 5 GHz and 6 GHz bands, capable of reaching speeds of up to 10.7 Gbps , offering ultra-fast wireless connections and greater capacity to manage numerous devices simultaneously in high-density professional environments.
Versatile and elegant design:
The device is designed with a paintable cover and a compact wall-mounted design , allowing for perfect aesthetic integration in hotels, offices or business environments without altering the style of the environment thanks to the possibility of customizing the color of the cover.
Anti-theft design:
The wall-mounted junction box structure and dedicated mounting bracket allow for secure and stable mounting of the device, reducing the risk of tampering or unauthorized removal in professional installations.
Ports with PoE flexibility:
The access point integrates 2 2.5G multigigabit ports and 3 Gigabit Ethernet ports , with PoE++/PoE+ input support and configurable PoE Out , allowing you to power devices such as IP phones, cameras or other network devices directly from the access point.
Reduced latency and interference:
Thanks to Multi-Link Operation (MLO), Multi-RUs and 4K-QAM modulation technologies, the device improves wireless spectrum management by reducing latency, congestion and interference , ensuring more stable connections and high performance.
Simple and intuitive installation:
The system supports quick setup via Omada SDN, mobile app or web interface , with automatic device discovery and one-click adoption capabilities, making network deployment easy even in complex infrastructures.
Advanced features:
The access point offers Omada SDN cloud centralized management, Mesh Wi-Fi, Seamless Roaming and advanced WPA3 security , enabling complete control of your business wireless network with advanced monitoring and optimization tools.
Shared Wi-Fi connection:
Designed for multi-user environments such as hotels or offices, it supports over 380 simultaneously connected devices with coverage of up to 100 m² , ensuring a dedicated and stable Wi-Fi network for each room or work area .

Technical data sheet

Model EAP775-Wall
HARDWARE FEATURES
Interface Uplink: 1× 2.5G Ethernet Port
Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports
(Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input.)
Physical security lock Yes
Key Reset
Diet 802.3bt/at PoE
PoE Out Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.
The PoE Out feature requires 802.3bt input.
Energy consumption 45W (with 25W PoE Out)
Dimensions (L x W x H) 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)
Antenna 6× Internal Antennas
2.4 GHz: 2× 5 dBi
5 GHz: 4× 5.5 dBi
6 GHz: 2× 5.5 dBi
Bluetooth V5.2
Mounting type Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 1050 ft² (100 m²)*
Concurrent Clients 380+**
Wireless standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Wireless functionality 320 MHz Bandwidth‡
MLO‡
4K-QAM‡
Multi-RUs‡
24 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
Seamless Roaming△
Beamforming
Band Steering
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP

Wireless security Captive Portal Authentication△
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power 4-22 dBm (2.4 GHz)
4-22 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
4-22 dBm (6 GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requires the use of an Omada controller.
Email alerts Yes
LED ON/OFF Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
Local and remote system logs System Log
SSH Yes
Web-based management Yes
L3 Management Yes
Multi-site Management Yes
VLAN Management Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHER
Certification

FCC, RoHS

Package Contents

EAP775-Wall
Paintable Cover
Installation Guide
Mounting Kits

Environment

Operating Temperature: 0°C–40°C (32°F–104°F);
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
