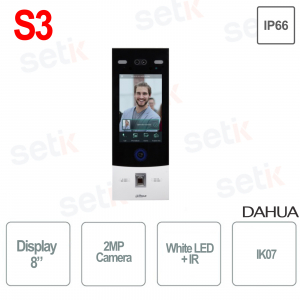

Multi-family condominium outdoor IP station 2MP 8 inch LCD display IP65

Multi-family condominium outdoor IP station 2MP 8 inch LCD display IP65
-58% nuevo

VTO7541G-S3 Multi-Family Outdoor Station with Integrated Camera with 2Mp CMOS Sensor, Low Illumination Dual Camera, 8" LCD Display, Card Reader and Touch Keypad - RS-485 and Wiegard Interface - 2x Input + 2x Alarm Output - IP65 - Dahua



referencia : VTO7541G-S3

brand : Dahua

EAN: 6923172580573

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MULTI-FAMILY OUTDOOR STATION WITH 2MP CAMERA, 8" LCD TOUCH DISPLAY AND CARD READER - DAHUA

DESCRIPTION:
Dahua VTO7541G-S2 Multi-Family Outdoor Station is one of the best stations on the market
Ideal for installations in condominiums or buildings with multiple homes.
Equipped with a 2Mp CMOS sensor camera , 8" LCD touch display and card reader .

Quality product. Dahua Security

Product Details:

Postazione esterna in acciaio Multi Famigliare con telecamera, tastierino numerico, display da 3.5

  • Multi-Family Outdoor Station - Dahua
  • Category: Video Intercom
  • Non-modular. Cannot be integrated with other modules
  • Camera equipped with 2Mp CMOS image sensor
  • 8" display
  • Card Reader
  • Supports night vision
  • RS-485 and Wiegand ports
  • 2 inputs + 2 alarm outputs
  • Adopt TCP Network Host
  • Waterproof IP65
  • Power supply 12V DC 3A; Standard PoE
  • Flush or wall mounting
  • Quality product
  • 24 month warranty

Technical data sheet

Model VTO7541G-S3
System
Main Processor Embedded processor
Operating System Embedded Linux OS
Button Type Touch button
Interoperability CGI;ONVIF
Internet Protocol TCP;RTMP;HTTP/HTTPS;DNS;RTSP;ONVIF;SIP;RTP
Basic
Screen Type Capacitive Touchscreen
Display 8-inch display screen
Screen Resolution 800(H)×1280(V)
Room 1/2.8” 2MP CMOS high-definition, low illumination, dual cameras
Angle of View H: 95°; V: 50°; D: 110°
WDR 120db
Noise Reduction 3D NR
Video Compression H.264; H.265
Video Resolution Main stream: 720P/D1/WVGA;
Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
Video Frame Rate 25fps
Video Bitrate 1,024kbps–8,192kbps
Light Compensation Car white light
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bitrate 16kHz, 16bit
Function
Communication Mode Full digital
Unlock Mode Remote/password/face/fingerprint/card
Auto Snapshot Yes
Information Release Receive and view text information released by the management center.
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
Storage Supports Micro SD card (up to 512 GB)
WebConfiguration Yes
Self-Registration Yes
RFID
Card Type IC card
Performance
Card Reading Distance 0cm–4cm (IC card)
Issue Card Locally Yes
Face Recognition Height Range 1.1 m–2.2 m (3.61 ft–7.22 ft)
Face Recognition Distance 0.3 m–2.0 m (0.98 ft–6.56 ft)
Face Verification Accuracy >99%
Face Recognition Speed ≤0.2s
Fingerprint Sensor Type Capacitive
Fingerprint Comparison Time ≤1.5 sec
Fingerprint Recognition Time ≤1 sec
Casing Material Metal
Capacity
Card Capacity 50,000
Face Image Capacity 50,000
Fingerprint Capacity 10, 000
Port
RS-485 1
Wiegand 1 (they can be set as an input or output port)
Alarm Input 2 channels
AlarmOutput 2 channels
Power Output Port 1 port (12V, 500mA)
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel, open by default
Ethernet 1 × 10Mbps/100Mbps Ethernet port
Alarm
Tamper Alarm Yes
General
Unlock Password Mode User, public and hard passwords
Appearance Color Silver
Power Supply 12 VDC, 3 A;
PoE Standards
Power Adapter Optional
Installation Flush Mount;Wall Mount
Certifications THERE IS
Accessories Power supply (optional);
Flush mount box (optional)
Product Dimensions 389 mm × 145 mm × 43.5 mm (15.31" × 5.70" × 1.71")
Protection Grade IP65 rated (Silicone sealant is required. See the quick start guide for more information).
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 0%–90% (RH), non-condensing
Operating Altitude 0 m–1,300 m (0 ft–4265.09 ft)
Power Consumption ≤5W (standby), ≤18W (working)
Gross Weight 1.91kg (4.21lb)

Further details

Videocitofono con telecamera integrata

Camera built into the device.
2Mp CMOS image sensor.

OC500 - Anviz RFID EM MIFARE Access Control and Attendance OC500 - Setik.biz

8" Multi-line LCD display

1x Integrated Card Reader for door unlocking (Card not included)

Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps)

Connection via Communication port via RS485 or Wiegand
This DVR presents 8 alarm entries and 1 alarm exit 2 inputs + 2 alarm outputs
Protezione Waterproof Station suitable for outdoor environments thanks to the Waterproof -IP66 feature

Up to 50,000 cards , 50,000 faces and 10,000 fingerprints

12VDC_Power

Power supply 12 VDC, 3 A; Standard PoE
Materiale con cui è stato creato il dispositivo Panel made of AL+PC+ABS .
Italian Guarantee Icon This product is covered by a 24 month warranty.

Installation

Diagramma Sistema IP Appartamento Dahua
