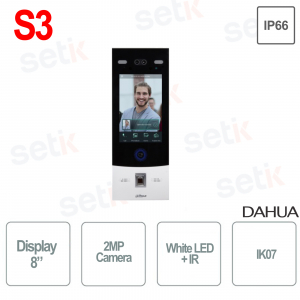

POSTAZIONE ESTERNA MULTI-FAMIGLIARE CON TELECAMERA 2MP, DISPLAY 8" LCD TOUCH E LETTORE CARD - DAHUA
DESCRIZIONE:
La postazione esterna Multi-Famigliare VTO7541G-S2 di Dahua, è una delle migliori postazioni sul mercato
Ideale per installazioni in condomini o palazzi con più abitazioni.
Dotato di telecamera con sensore CMOS 2Mp, Display da 8" LCD touch e Lettore Card.
Prodotto di qualità. Dahua Security
Dettagli Prodotto:
|
Scheda tecnica
Model | VTO7541G-S3 |
System | |
Main Processor | Embedded processor |
Operating System | Embedded Linux OS |
Button Type | Touch button |
Interoperability | CGI;ONVIF |
Internet Protocol | TCP;RTMP;HTTP/HTTPS;DNS;RTSP;ONVIF;SIP;RTP |
Basic | |
Screen Type | Capacitive Touchscreen |
Display | 8-inch display screen |
Screen Resolution | 800(H)×1280(V) |
Camera | 1/2.8” 2MP CMOS high-definition, low illumination, dual cameras |
Angle of View | H: 95°; V: 50°; D: 110° |
WDR | 120 db |
Noise Reduction | 3D NR |
Video Compression | H.264; H.265 |
Video Resolution | Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
Video Frame Rate | 25 fps |
Video Bit Rate | 1,024 kbps–8,192 kbps |
Light Compensation | Auto white light |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 channel |
Audio Output | Built-in speaker |
Audio Mode | Two-way audio |
Audio Enhancement | Echo suppression/digital noise reduction |
Audio Bit Rate | 16 kHz, 16 bit |
Function | |
Communication Mode | Full digital |
Unlock Mode | Remote/password/face/fingerprint/card |
Auto Snapshot | Yes |
Information Release | Receive and view text information released by the management center. |
Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
Storage | Supports Micro SD card (up to 512 GB) |
Web Configuration | Yes |
Auto-Registration | Yes |
RFID | |
Card Type | IC card |
Performance | |
Card Reading Distance | 0 cm–4 cm (IC card) |
Issue Card Locally | Yes |
Face Recognition Height Range | 1.1 m–2.2 m (3.61 ft–7.22 ft) |
Face Recognition Distance | 0.3 m–2.0 m (0.98 ft–6.56 ft) |
Face Verification Accuracy | >99% |
Face Recognition Speed | ≤0.2s |
Fingerprint Sensor Type | Capacitive |
Fingerprint Comparison Time | ≤1.5 sec |
Fingerprint Recognition Time | ≤1 sec |
Casing Material | Metal |
Capacity | |
Card Capacity | 50, 000 |
Face Image Capacity | 50, 000 |
Fingerprint Capacity | 10, 000 |
Port | |
RS-485 | 1 |
Wiegand | 1 (they can be set as an input or output port) |
Alarm Input | 2 channels |
Alarm Output | 2 channels |
Power Output Port | 1 port (12 V, 500 mA) |
Exit Button | 1 channel |
Door Status Detection | 1 channel |
Lock Control | 1 channel, open by default |
Ethernet | 1 × 10 Mbps/100 Mbps Ethernet port |
Alarm | |
Tamper Alarm | Yes |
General | |
Unlock Password Mode | User, public and duress passwords |
Appearance Color | Silver |
Power Supply | 12 VDC, 3 A; Standard PoE |
Power Adapter | Optional |
Installation | Flush Mount;Wall Mount |
Certifications | CE |
Accessory | Power supply (optional); Flush mount box (optional) |
Product Dimensions | 389 mm × 145 mm × 43.5 mm (15.31" × 5.70" × 1.71") |
Protection Grade | IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity | 0%–90% (RH), non-condensing |
Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
Power Consumption | ≤5 W (standby), ≤18 W (working) |
Gross Weight | 1.91kg (4.21 lb) |
Ulteriori dettagli
![]() |
Telecamera integrata nel dispositivo. |
![]() |
Display LCD multilinea da 8" |
![]() |
1x Lettore Tessere integrato per sblocco porta (Tessera non inclusa) |
|
Connessione tramite porta Comunicazione tramite RS485 o Wiegand |
![]() |
2 ingressi + 2 uscite allarme |
![]() |
Postazione adatta ad ambienti esterni grazie alla caratteristica Waterproof -IP66 |
![]() |
Fino a 50.000 carte, 50.000 volti e 10.000 impronte digitali |
|
Alimentazione 12 VDC, 3 A; Standard PoE |
![]() |
Pannello realizzato in AL+PC+ABS. |
![]() |
Questo prodotto è coperto da Garanzia di 24 mesi. |
