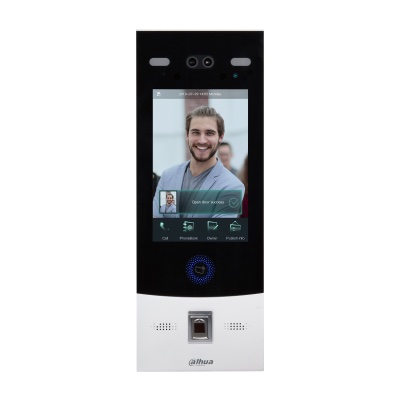

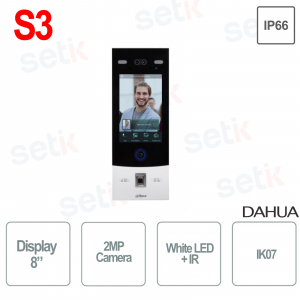

MULTI-FAMILY OUTDOOR STATION WITH 2MP CAMERA, 8" LCD TOUCH DISPLAY AND CARD READER - DAHUA
DESCRIPTION:
 Dahua VTO7541G-S2 Multi-Family Outdoor Station is one of the best stations on the market
 Ideal for installations in condominiums or buildings with multiple homes.
 Equipped with a 2Mp CMOS sensor camera , 8" LCD touch display and card reader .
Quality product. Dahua Security
Product Details:
|


  |
Technical data sheet
| Model | VTO7541G-S3 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux OS |
| Button Type | Touch button |
| Interoperability | CGI;ONVIF |
| Internet Protocol | TCP;RTMP;HTTP/HTTPS;DNS;RTSP;ONVIF;SIP;RTP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display | 8-inch display screen |
| Screen Resolution | 800(H)×1280(V) |
| Room | 1/2.8” 2MP CMOS high-definition, low illumination, dual cameras |
| Angle of View | H: 95°; V: 50°; D: 110° |
| WDR | 120db |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA  |
| Video Frame Rate | 25fps |
| Video Bitrate | 1,024kbps–8,192kbps |
| Light Compensation | Car white light |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bitrate | 16kHz, 16bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Remote/password/face/fingerprint/card |
| Auto Snapshot | Yes |
| Information Release | Receive and view text information released by the management center. |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 512 GB) |
| WebConfiguration | Yes |
| Self-Registration | Yes |
| RFID | |
| Card Type | IC card |
| Performance | |
| Card Reading Distance | 0cm–4cm (IC card) |
| Issue Card Locally | Yes |
| Face Recognition Height Range | 1.1 m–2.2 m (3.61 ft–7.22 ft) |
| Face Recognition Distance | 0.3 m–2.0 m (0.98 ft–6.56 ft) |
| Face Verification Accuracy | >99% |
| Face Recognition Speed | ≤0.2s |
| Fingerprint Sensor Type | Capacitive |
| Fingerprint Comparison Time | ≤1.5 sec |
| Fingerprint Recognition Time | ≤1 sec |
| Casing Material | Metal |
| Capacity | |
| Card Capacity | 50,000 |
| Face Image Capacity | 50,000 |
| Fingerprint Capacity | 10, 000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (they can be set as an input or output port) |
| Alarm Input | 2 channels |
| AlarmOutput | 2 channels |
| Power Output Port | 1 port (12V, 500mA) |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel, open by default |
| Ethernet | 1 × 10Mbps/100Mbps Ethernet port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Unlock Password Mode | User, public and hard passwords |
| Appearance Color | Silver |
| Power Supply | 12 VDC, 3 A; PoE Standards  |
| Power Adapter | Optional |
| Installation | Flush Mount;Wall Mount |
| Certifications | THERE IS |
| Accessories | Power supply (optional); Flush mount box (optional)  |

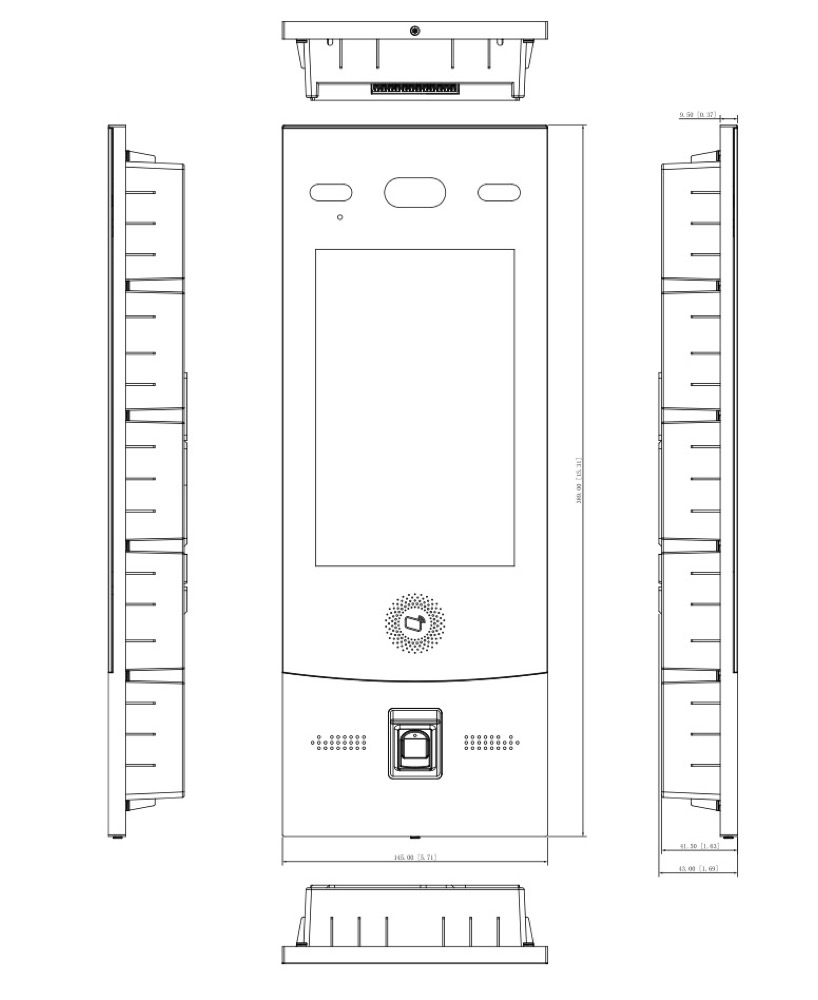

| Product Dimensions | 389 mm × 145 mm × 43.5 mm (15.31" × 5.70" × 1.71") |
| Protection Grade | IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| Power Consumption | ≤5W (standby), ≤18W (working) |
| Gross Weight | 1.91kg (4.21lb) |
Further details
![]()  |
 Camera built into the device.  |
![]()  |
 8" Multi-line LCD display  |
![]()  |
 1x Integrated Card Reader for door unlocking (Card not included)  |
|


  |
Connection via Communication port via RS485 or Wiegand |
![]()  |
2 inputs + 2 alarm outputs |
![]()  |
Station suitable for outdoor environments thanks to the Waterproof -IP66 feature |
![]()  |
 Up to 50,000 cards , 50,000 faces and 10,000 fingerprints  |
|

  |
Power supply 12 VDC, 3 A; Standard PoE |
![]()  |
Panel made of AL+PC+ABS . |
| This product is covered by a 24 month warranty. |
