IPC-HDBW5459Z-ZHE-PV-PRO 4MP 2.7-12mm Varifocal Dome WizMind AI WizColor IP67 IK10 with Alarm and Audio - Dahua
IPC-HDBW5459Z-ZHE-PV-PRO - is a professional dome camera with 2.7–12 mm motorized varifocal lens, designed to offer maximum flexibility and adaptable coverage in any scenario. Thanks to the 4MP resolution and the high-sensitivity 1/1.8" CMOS sensor, it guarantees clear images even in low light conditions, enhanced by WizColor technology for color night vision. It integrates advanced WizMind Artificial Intelligence functions with support for Xinghan AI models , offering advanced analysis such as AcuPick, face detection and people counting . The Smart Dual Light system with IR up to 60 m and warm light up to 50 m ensures optimal visibility, while H.265+ compression optimizes bandwidth and storage. Equipped with IP67 and IK10 protection, window heating function and two-way audio , it represents a complete solution for professional security even in extreme environments. Dahua
BUSQUE INSTALADOR
IPC-HDBW5459Z-ZHE-PV-PRO | 4MP IP CAMERA WITH 2.7-12mm FIXED LENS - WIZCOLOR - NETWORK CAMERA
The Dahua IPC-HDBW5459Z-ZHE-PV-PRO is a professional dome camera with a 2.7–12 mm motorized varifocal lens, ideal for adapting the field of view from wide angle to zoom according to monitoring needs. Thanks to the 4MP resolution and the high-sensitivity 1/1.8" CMOS sensor, it offers detailed images even in low light conditions, supported by WizColor technology for color night vision. It integrates advanced WizMind Artificial Intelligence functions with Xinghan AI models , ensuring advanced analysis such as AcuPick, face detection, people counting and perimeter protection . The Smart Dual Light system with IR up to 60 m and warm light up to 50 m ensures optimal visibility, while H.265+ compression optimizes bandwidth and storage. Equipped with IP67 and IK10 protection, two-way audio and window heating function, it is designed for outdoor environments and extreme conditions.
Main specifications:
- Motorized 2.7–12 mm varifocal lens for maximum framing flexibility
- 4MP resolution with 1/1.8" CMOS sensor for sharp and detailed images
- WizColor technology for color vision even in low light conditions
- AI WizMind with Xinghan AI Models for advanced analytics and false alarm reduction
- Intelligent AcuPick for fast and precise video search
- Smart Dual Light (IR 60m + warm light 50m) for advanced night vision
- H.265+ compression and AI Coding for bandwidth and storage optimization
- IP67 and IK10 protection resistant to dust, water and vandalism
- Two-way audio with dual microphones and built-in speakers
- Window heating to keep the lens always free from condensation and ice
Further details
✅ Optics :
2.7–12 mm motorized varifocal lens that allows for dynamic adjustment of the field of view (114°–48°) , ideal for adapting to both wide-angle scenarios and zoom and detail needs.
Technical data sheet
| MODEL | IPC-HDBW5459Z-ZHE-PV-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0003 lux@F1.2 (Color, 30 IRE) 0.0001 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° *Remote adjustment (Max. 1000 cycles) |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Openings | F1.2 |
| Field of View | H: 114°–48°; V: 59°–27°; D: 143°–56° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.16 m (0.53 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+. |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Defog (Glass Heating) | Window heating: Quickly removes water, ice, snow, and mist from the window to keep images clear |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Sound Warning | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 5.3W (12VDC); 6.4W (PoE); Max. (IR on + siren and light active deterrence + intelligence on + window heating): 21.3 W (12 VDC); 24.2W (PoE) Heating: 2.1W (12VDC); 2.4W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |

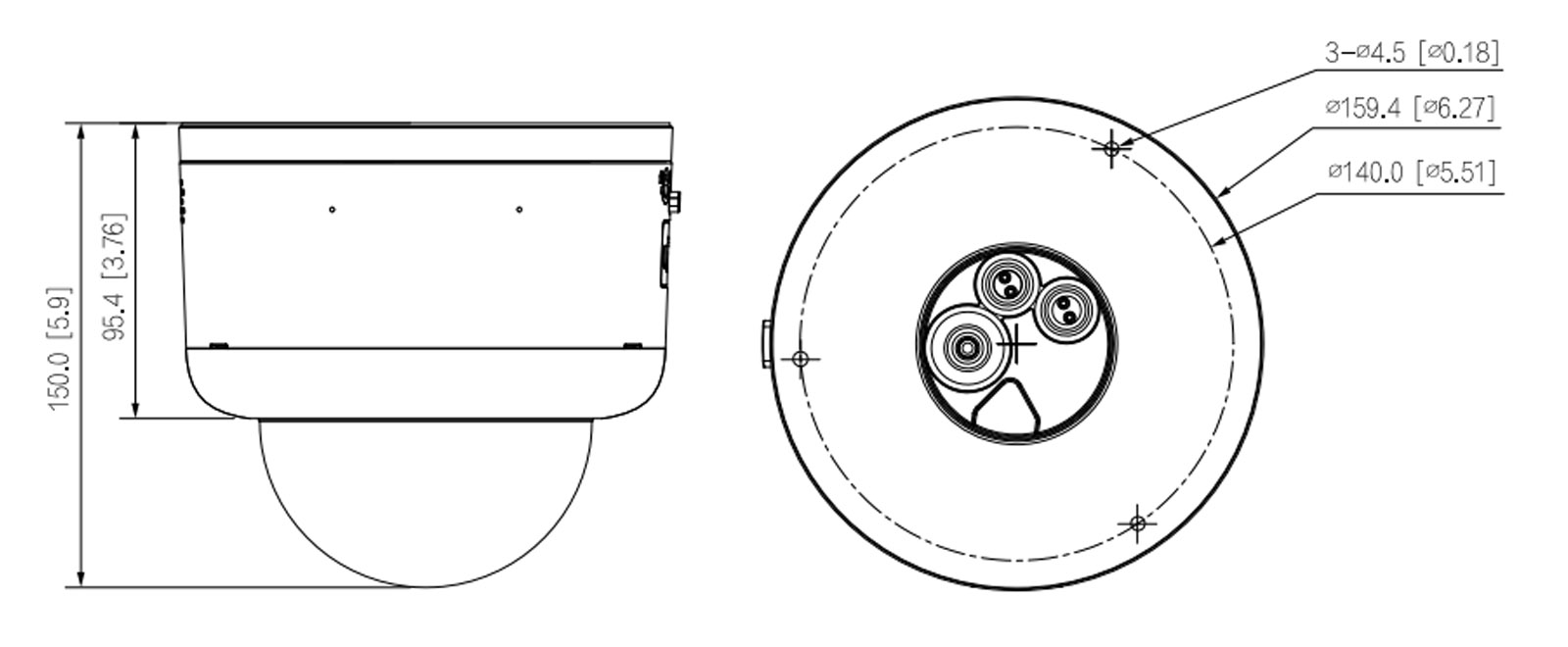

| Product Dimensions | 150mm × Φ159mm (5.91" × Φ6.27") |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
