IPC-HDBW5459Z-ZHE-PV-PRO | 4MP IP CAMERA WITH 2.7-12mm FIXED LENS - WIZCOLOR - NETWORK CAMERA


Dahua

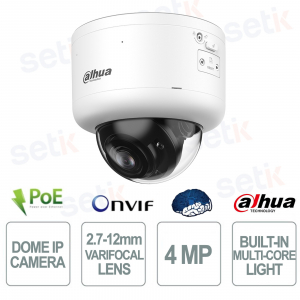

The Dahua IPC-HDBW5459Z-ZHE-PV-PRO is a professional dome camera with a 2.7–12 mm motorized varifocal lens, ideal for adapting the field of view from wide angle to zoom according to monitoring needs. Thanks to the 4MP resolution and the high-sensitivity 1/1.8" CMOS sensor, it offers detailed images even in low light conditions, supported by WizColor technology for color night vision. It integrates advanced WizMind Artificial Intelligence functions with Xinghan AI models , ensuring advanced analysis such as AcuPick, face detection, people counting and perimeter protection . The Smart Dual Light system with IR up to 60 m and warm light up to 50 m ensures optimal visibility, while H.265+ compression optimizes bandwidth and storage. Equipped with IP67 and IK10 protection, two-way audio and window heating function, it is designed for outdoor environments and extreme conditions.

Main specifications:

- Motorized 2.7–12 mm varifocal lens for maximum framing flexibility

- 4MP resolution with 1/1.8" CMOS sensor for sharp and detailed images

- WizColor technology for color vision even in low light conditions

- AI WizMind with Xinghan AI Models for advanced analytics and false alarm reduction

- Intelligent AcuPick for fast and precise video search

- Smart Dual Light (IR 60m + warm light 50m) for advanced night vision

- H.265+ compression and AI Coding for bandwidth and storage optimization

- IP67 and IK10 protection resistant to dust, water and vandalism

- Two-way audio with dual microphones and built-in speakers

- Window heating to keep the lens always free from condensation and ice

Further details

Optics :
2.7–12 mm motorized varifocal lens that allows for dynamic adjustment of the field of view (114°–48°) , ideal for adapting to both wide-angle scenarios and zoom and detail needs.

Resolution:
4MP resolution (2688×1520) with 1/1.8" high-sensitivity CMOS sensor, designed to deliver sharp, detailed images even in low-light conditions.
Xinghan Large-Scale AI Models-Vision :
Xinghan Large-Scale AI Models-Vision based on transformer and NPU architecture , capable of improving object recognition, scene analysis and real-time multi-task management.
WizColor Technology:
WizColor Technology that leverages AI-ISP, high-sensitivity sensor and large aperture , ensuring vivid color images even at night without loss of detail.
AcuPick:
Intelligent AcuPick for advanced video search , combining front-end and back-end analytics to quickly locate people, vehicles and objects.
Artificial Intelligence:
WizMind Artificial Intelligence with features such as face detection, people counting, perimeter protection and video metadata , for professional video analysis and false alarm reduction.
Microphone:
Built-in dual microphone and speaker for two-way audio , enabling real-time communication and remote management via apps and VMS systems.
Alarm:
Active alarm system with customizable light and sound signals , ideal for increasing security and real-time deterrence.
Network camera:
Professional IP network camera with support for advanced protocols (ONVIF, RTSP, HTTPS) for complete integration into advanced video surveillance systems.
Advanced features:
Advanced video features such as WDR 140dB, 3D NR, ROI, Smart Dual Light, AI Coding and IVS , to adapt to any operating scenario.
Doors:
Comprehensive ports and interfaces including RJ-45, RS-485, audio and alarm inputs/outputs , plus MicroSD support up to 1TB for maximum flexibility of use.

IPC-HDBW5459Z-ZHE-PV-PRO dimensions

Technical data sheet

MODEL IPC-HDBW5459Z-ZHE-PV-PRO
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0003 lux@F1.2 (Color, 30 IRE)
0.0001 lux@F1.2 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 60 m (196.85 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto;Manual;Zoomprio
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
*Remote adjustment (Max. 1000 cycles)
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm–12 mm
Max. Openings F1.2
Field of View H: 114°–48°; V: 59°–27°; D: 143°–56°
Iris Control Car
Iris Control Type P-Iris
Close Focus Distance 0.16 m (0.53 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+.
Video Frame Rate Main stream: 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
Fourth stream: 1280 × 720@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 4 stream
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 4 mosaics or 8 color blocks
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS
Browser IE: IE 11 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Defog (Glass Heating) Window heating: Quickly removes water, ice, snow, and mist from the window to keep images clear
Light Warning Warm light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.
Certification
Sound Warning CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
RS-485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 2 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output 2 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Power Output 12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 5.3W (12VDC); 6.4W (PoE);
Max. (IR on + siren and light active deterrence + intelligence on + window heating): 21.3 W (12 VDC); 24.2W (PoE)
Heating: 2.1W (12VDC); 2.4W (PoE)
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material Metal
Product Dimensions 150mm × Φ159mm (5.91" × Φ6.27")
Net Weight 1.4 kg (3.09 lb)
Gross Weight 1.9 kg (4.19 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
