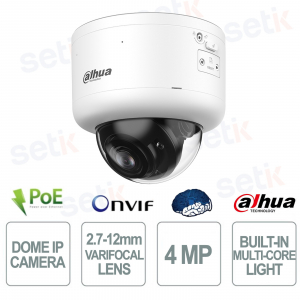

IPC-HDBW5459Z-ZHE-PV-PRO 4MP Dome Varifocale 2.7-12mm WizMind AI WizColor IP67 IK10 con Allarme e Audio - Dahua
IPC-HDBW5459Z-ZHE-PV-PRO - è una telecamera dome professionale con ottica varifocale motorizzata 2.7–12 mm, progettata per offrire massima flessibilità e copertura adattabile in ogni scenario. Grazie alla risoluzione 4MP e al sensore 1/1.8" CMOS ad alta sensibilità, garantisce immagini nitide anche in condizioni di scarsa illuminazione, potenziate dalla tecnologia WizColor per visione a colori notturna. Integra avanzate funzionalità di Intelligenza Artificiale WizMind con supporto ai modelli Xinghan AI, offrendo analisi evolute come AcuPick, face detection e people counting. Il sistema Smart Dual Light con IR fino a 60 m e luce calda fino a 50 m assicura visibilità ottimale, mentre la compressione H.265+ ottimizza banda e storage. Dotata di protezione IP67 e IK10, funzione di window heating e audio bidirezionale, rappresenta una soluzione completa per sicurezza professionale anche in ambienti estremi. Dahua
SCEGLI PROFESSIONISTA
IPC-HDBW5459Z-ZHE-PV-PRO | TELECAMERA IP 4MP OTTICA FISSA 2.7-12mm - WIZCOLOR - NETWORK CAMERA
La Dahua IPC-HDBW5459Z-ZHE-PV-PRO è una telecamera dome professionale con ottica varifocale motorizzata 2.7–12 mm, ideale per adattare il campo visivo da grandangolo a zoom in base alle esigenze di monitoraggio. Grazie alla risoluzione 4MP e al sensore 1/1.8" CMOS ad alta sensibilità, offre immagini dettagliate anche in condizioni di scarsa illuminazione, supportate dalla tecnologia WizColor per visione notturna a colori. Integra avanzate funzionalità di Intelligenza Artificiale WizMind con modelli Xinghan AI, garantendo analisi evolute come AcuPick, face detection, people counting e protezione perimetrale. Il sistema Smart Dual Light con IR fino a 60 m e luce calda fino a 50 m assicura visibilità ottimale, mentre la compressione H.265+ ottimizza banda e storage. Dotata di protezione IP67 e IK10, audio bidirezionale e funzione window heating, è progettata per ambienti esterni e condizioni estreme.
Specifiche principali:
- Ottica varifocale 2.7–12 mm motorizzata per massima flessibilità di inquadratura
- Risoluzione 4MP con sensore 1/1.8" CMOS per immagini nitide e dettagliate
- Tecnologia WizColor per visione a colori anche in condizioni di bassa luminosità
- AI WizMind con Xinghan AI Models per analisi avanzata e riduzione falsi allarmi
- AcuPick intelligente per ricerca rapida e precisa nei video
- Smart Dual Light (IR 60 m + luce calda 50 m) per visione notturna evoluta
- Compressione H.265+ e AI Coding per ottimizzazione banda e archiviazione
- Protezione IP67 e IK10 resistente a polvere, acqua e atti vandalici
- Audio bidirezionale con microfono doppio e speaker integrati
- Window heating per mantenere la lente sempre libera da condensa e ghiaccio
Ulteriori dettagli
✅ Ottica:
Ottica varifocale motorizzata 2.7–12 mm che permette una regolazione dinamica del campo visivo (114°–48°), ideale per adattarsi sia a scenari grandangolari che a esigenze di zoom e dettaglio.
Scheda tecnica
| MODEL | IPC-HDBW5459Z-ZHE-PV-PRO |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0003 lux@F1.2 (Color, 30 IRE) 0.0001 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° *Remote adjustment (Max. 1000 cycles) |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.2 |
| Field of View | H: 114°–48°; V: 59°–27°; D: 143°–56° |
| Iris Control | Auto |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.16 m (0.53 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+. |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android;iOS |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Defog (Glass Heating) | Window heating:Quickly removes water,ice,snow,and mist from the window to keep images clear |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Sound Warning | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 5.3 W (12 VDC); 6.4 W (PoE); Max. (IR on + siren and light active deterrence + intelliegece on + window heating): 21.3 W (12 VDC); 24.2 W (PoE) Heating: 2.1 W (12 VDC); 2.4 W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 150 mm × Φ159 mm (5.91" × Φ6.27") |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
