DS-PM1-I1-WE - Modulo wireless che consente di integrare dispositivi cablati nei sistemi, offrendo comunicazione bidirezionale a 868 MHz, ingresso programmabile, alimentazione a 3,3V e protezione anti-manomissione. Compatto e facile da installare, garantisce sicurezza e flessibilità con autonomia fino a 5 anni. AX PRO
100% INTEGRABILE CON I SENSORI OPTEX
Riferimento: DS-PM1-I1-WE
Marca: Hikvision
EAN: 6931847120993
Disponibilità: 4

FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

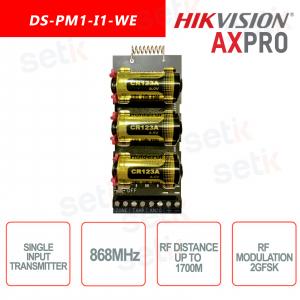

DS-PM1-I1-WE – MODULO WIRELESS S INGRESSO SINGOLO

Il modulo trasmettitore wireless Hikvision DS-PM1-I1-WE è progettato per integrare dispositivi cablati, come sensori PIR, nel sistema di allarme wireless AX PRO, offrendo una soluzione flessibile per la modernizzazione di impianti esistenti.
Ulteriori dettagli
Scheda tecnica
DS-PM1-I1-WE | |
Hardware features | |
Serial port | 1 |
Power switch | 1 |
Alarm input | 1 Alarm, 1 Tamper |
Alarm output | 1 PGM, AM/Output |
3.3v Output | 1, up to 10mA |
Electrical characteristics | |
Power supply | 3 CR123 |
Operation humidity | 10%~90% |
Operation temperature | –10℃ ~ 55℃ |
Power consumption | Quiescent current: 40.29 uA Max current: 47.85mA Voltage: 3 VDC |
Battery life span | More than 5 years (report alarm 50 times per day) |
Wireless Transmission | |
RF frequency | 868MHz |
RF method | Two-way communication |
RF modulation | 2GFSK |
RF distance | 1700m |
Display | |
Indicator | 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength (Green/Red) |
General | |
Installation method | Put inside Wireless Ready Detector |
Dimension(WxHxD) | 102*41*20mm |
Weight | 35g(Without Battery), 90g(With Battery) |
