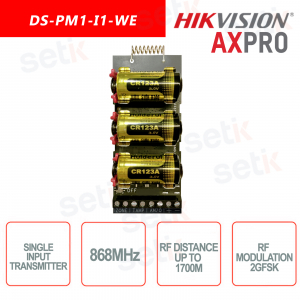

DS-PM1-I1-WE - Hikvison AxPro 868MHz Single Input Transmitter

DS-PM1-I1-WE - Hikvison AxPro 868MHz Single Input Transmitter

 
-45%

DS-PM1-I1-WE - Wireless module that allows you to integrate wired devices into your systems, offering 868 MHz two-way communication, programmable input, 3.3V power supply and tamper protection. Compact and easy to install, it guarantees security and flexibility with up to 5 years of autonomy. AX PRO

100% INTEGRABLE WITH OPTEX SENSORS

Technical Data Sheet

referencia : DS-PM1-I1-WE

brand : Hikvision

EAN: 6931847120993

Disponibilità: 1

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ALARMA HIKVISION×

  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-PM1-I1-WE – SINGLE INPUT WIRELESS MODULE S

Hikvision

The Hikvision DS-PM1-I1-WE wireless transmitter module is designed to integrate wired devices, such as PIR sensors, into the AX PRO wireless alarm system, offering a flexible solution for the modernization of existing installations.

Further details

✅ 868MHz Two-Way Wireless Communication: Ensures secure and reliable transmission up to 1700 meters in open field, with AES-128 encryption for data protection.
✅ Programmable Single Input (PGM): Can be configured as zone input or alarm output, adapting to different system needs.
✅ Separate tamper input: Provides additional protection against tampering, improving the overall security of the system.
✅ 3.3V DC (10mA) power output: Allows you to power external wired devices directly from the module, simplifying installation.
✅ Removal detection via accelerometer: the module is able to detect unauthorized movements or removals, promptly activating alarms.
✅ Compact design: The small size (102 × 41 × 20 mm) allows for discreet installation inside existing wired detectors.
✅ Battery Powered: Operates on 3 CR123A batteries (included), providing up to 5 years of standby time.
✅ LED Indicators: Provide instant information on device status, including alarm, tamper, fault, and signal strength.

Technical data sheet

DS-PM1-I1-WE
Hardware features
Serial port 1
Power switch 1
Alarm input 1 Alarm, 1 Tamper
Alarm output 1 PGM, AM/Output
3.3v Output 1, up to 10mA
Electrical characteristics
Power supply 3 CR123
Operation humidity 10%~90%
Operation temperature –10℃ ~ 55℃
Power consumption Quiescent current: 40.29uA
Max current: 47.85mA
Voltage: 3VDC
Battery lifespan More than 5 years (report alarm 50 times per day)
Wireless Transmission
RF frequency 868MHz
RF method Two-way communication
RF modulation 2GFSK
RF distance 1700m
Display
Indicator 3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength （Green/Red）
General
Installation method Put inside Wireless Ready Detector
Dimensions(WxHxD) 102*41*20mm
Weight 35g(Without Battery), 90g(With Battery)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
