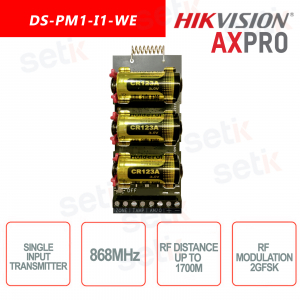

DS-PM1-I1-WE - Hikvison AxPro 868MHz Single Input Transmitter

DS-PM1-I1-WE - Hikvison AxPro 868MHz Single Input Transmitter

-45%

DS-PM1-I1-WE - Wireless module that allows you to integrate wired devices into your systems, offering 868 MHz two-way communication, programmable input, 3.3V power supply and tamper protection. Compact and easy to install, it guarantees security and flexibility with up to 5 years of autonomy. AX PRO


100% INTEGRABLE WITH OPTEX SENSORS


Technical Data Sheet



Artikel-Nr.: DS-PM1-I1-WE

Marke: Hikvision

EAN: 6931847120993

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-PM1-I1-WE – SINGLE INPUT WIRELESS MODULE S

Hikvision

The Hikvision DS-PM1-I1-WE wireless transmitter module is designed to integrate wired devices, such as PIR sensors, into the AX PRO wireless alarm system, offering a flexible solution for the modernization of existing installations.


Further details

868MHz Two-Way Wireless Communication: Ensures secure and reliable transmission up to 1700 meters in open field, with AES-128 encryption for data protection.
Programmable Single Input (PGM): Can be configured as zone input or alarm output, adapting to different system needs.
Separate tamper input: Provides additional protection against tampering, improving the overall security of the system.
3.3V DC (10mA) power output: Allows you to power external wired devices directly from the module, simplifying installation.
Removal detection via accelerometer: the module is able to detect unauthorized movements or removals, promptly activating alarms.
Compact design: The small size (102 × 41 × 20 mm) allows for discreet installation inside existing wired detectors.
Battery Powered: Operates on 3 CR123A batteries (included), providing up to 5 years of standby time.
LED Indicators: Provide instant information on device status, including alarm, tamper, fault, and signal strength.

Technical data sheet

DS-PM1-I1-WE
Hardware features
Serial port 1
Power switch 1
Alarm input 1 Alarm, 1 Tamper
Alarm output 1 PGM, AM/Output
3.3v Output 1, up to 10mA
Electrical characteristics
Power supply 3 CR123
Operation humidity 10%~90%
Operation temperature –10℃ ~ 55℃
Power consumption Quiescent current: 40.29uA
Max current: 47.85mA
Voltage: 3VDC
Battery lifespan More than 5 years (report alarm 50 times per day)
Wireless Transmission
RF frequency 868MHz
RF method Two-way communication
RF modulation 2GFSK
RF distance 1700m
Display
Indicator 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength (Green/Red)
General
Installation method Put inside Wireless Ready Detector
Dimensions(WxHxD) 102*41*20mm
Weight 35g(Without Battery), 90g(With Battery)
