Hikvision AXPro Magnet Wireless 1600M 868Mhz

Hikvision AXPro Magnet Wireless 1600M 868Mhz

BEST SELLER -45%

AXPRO HIKVISION

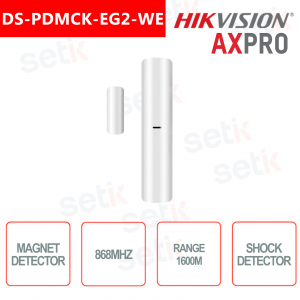

DS-PDMCK-EG2-WE AXIOM Hikvision slim wireless magnetic detector with shock detector and tilt detector. Slim design for minimally invasive installation, remote configuration via app, easy installation. Tri-X Wireless technology, two-way transmission at 868MHz up to 1.6km. Long battery life, up to 3 years.


>> PRODUCT EQUIVALENT TO DS-PDCMK-EG2-WE


Artikel-Nr.: DS-PDMCK-EG2-WE

Marke: Hikvision

EAN: 6942160451930

Disponibilità: 208

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


AXPro Hikvision Alarms

Hikvision AXPro Alarms

DS-PDMCK-EG2-WE | PYRONIX-HIKVISION WIRELESS MAGNETIC CONTACT 868MHZ - 1600M - SHOCK/TILT DETECTOR

This Pyronix-Hikvision DS-PDMCK-EG2-WE sensor is a magnetic/reed contact, installable on walls, ceilings, door and window frames with Shock Detector .

DS-PDMCS-EG2-WE

Product details



The DS-PDMC-EG2-WE is a slim, wireless magnetic contact. Designed for placement in locations where both a shock sensor and a magnetic contact are required, such as walls, ceilings, door frames, and windows; two sensors in one.


Main features

- Communication frequency: 868MHz
- Two-way wireless technology
- slim wireless magnet detector with shock detector and tilt detector
- Operation up to 1600m (in open space)
- Adjustable sensitivity
- Signal Strength Indicator (SSI)
- Tamper protection

Documentation: Brochure

DS-PDMCK-EG2-WE
Detection Performance
Detection method Opening Contact
Detection Gap 43mm Max
Sensitivity

Shock Detection: High, Normal, Low
Tilt Detection: Up to 25°

Feature
Digital Processing Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface
Alarm input Normally Closed; Normally Open; Impulse Count
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life 3 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 1
Typical Voltage 3V
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 22.5mm × 103mm × 23.2mm
13mm × 34.4mm × 11.4mm
Weight 60g
Application Scenario Indoor

HIKVISION AXPRO ALARMS VS AJAX ALARMS. Read our blog post !

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with latest-generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as video surveillance, video intercoms and access control. It also supports metadata from AcuSense devices and Heat Pro thermal cameras. AXPro boasts a simple, intuitive programming interface suitable for both professionals and end users.

Axpro Hikvision alarm system

TRI-X & CAM-X Wireless Technology

TRI-X is a proprietary radio protocol that ensures greater security and simplicity in communication. It allows you to pair and program the system devices via the HikProConnect APP , monitoring their components and their status with real-time alerts. The Tri-X and Cam-X dual frequency and multi-channel Frequency Hopping technology provide immunity to interference, long-distance communication up to 2,000m and long device autonomy [up to 6 years].



Intruder Verification

Intruder Verification is the HD video alarm service that manages video verification from any Hikvision IP camera. It provides a 7-second video clip recording containing pre- and post-event data, sent from the control panel's buffer or via the NVR/IP camera's archive. End users can access the footage and live camera feed directly from the HikConnect app.



Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and as an app, system configuration is extremely simple. The control panel immediately recognizes wireless devices via the Hik-ProConnect app by scanning them via QR codes. Manual operations and installation times are significantly optimized. After configuring the detectors and accessories, it will be possible to proceed with programming their parameters and handing over the system to the user.



Management via APP: Hik-ProConnect and Hik-Connect

Hikvision AXPro alarms are compatible with the Official Hikvision APPs Hik-ProConnect , dedicated to installers and Hik-Connect , for end users.

Hik-ProConnect:
cloud platform designed specifically for installers.
- Time optimization
- Add devices remotely or on-site
- Simplified programming
- Creation of specific rules for the system
- Remote system monitoring
- Identification of any malfunctions and immediate resolution
- Sending automatic reports
- Reduction in plant visits and increased efficiency

Hik-ProConnect: Cloud platform designed specifically for end users.
- Complete management of all Hikvision devices / products
- View system status
- Arming/disarming the alarm
- Receive alarm notifications wherever you are
- Monitoring the status of each individual device [signal level, battery status, ambient temperature]

Download

Download the brochure Brochure
