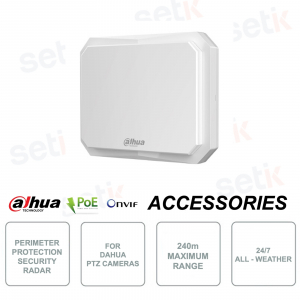

Radar IP POE ONVIF® 240m per protezione perimtero

Radar IP POE ONVIF® 240m per protezione perimtero

-57%

Allarme Radar 24 Ghz IP ONVIF PoE Dahua - PFR4K-B240 - Compatibile con Dome PTZ Camera - Funzionamento 24/7 in ogni condizione meteo - Rilevamento ad ampio raggio: 300m radiale/Cross 240m (umano in marcia)/ Cross 150m (umano che striscia)  - Alta precisone - Target fino a 32 - Collegamento radar PTZ - Controllo PTZ front-end - Gestione centralizzata e Smart Tracking - Multi-level Protecion: Diverse priorità di allarme, collegamento di allarmi esterni, filtraggio persone/veicoli e rilevamento veicoli con bassa e media velocità - 1 ingresso/5 uscite Allarme - 1 slot microSD da 256 GB (non inclusa) - 1xRJ 45 (10Base-T/100Base-TX) - Protezione IP67 / IK10 da atti vandalici - Certificazione FCC ID/CE RED - Dahua Technology.

Riferimento: PFR4K-B240

Marca: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Catalogo Dahua su Setik: Soluzioni AI per la Sicurezza

Dahua offre sistemi avanzati di videosorveglianza intelligente con tecnologie AI per rilevamento persone e veicoli, deterrenza attiva e gestione multi-impianto.


Prodotti Dahua disponibili

  • Telecamere IP Dahua AI
  • Videoregistratori NVR Dahua
  • Kit videosorveglianza completi
  • Telecamere ANPR lettura targhe
  • Allarmi wireless e videocitofonia

Soluzioni ideali per abitazioni evolute, aziende, negozi e infrastrutture pubbliche, con compatibilità ONVIF e supporto tecnico professionale.

[short_description] =>

Videosorveglianza Dahua


Dahua Telecamere IP, NVR e Videosorveglianza Professionale

Dahua è un riferimento nella sicurezza professionale. Su Setik trovi un catalogo completo di telecamere Dahua, NVR AI, kit di videosorveglianza e soluzioni ANPR per installatori e aziende.

Prodotti originali con garanzia italiana (24 mesi), supporto tecnico dedicato e spedizione rapida.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Dahua Telecamere IP, NVR e Kit Videosorveglianza | Catalogo Setik [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Acquista Dahua su Setik: telecamere Dahua IP AI, NVR, kit videosorveglianza e software DSS per installatori e aziende. Prodotti originali con garanzia italiana 24 mesi e supporto tecnico dedicato. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA


ALLARME RADAR 24 GHz - ONVIF® POE - RAGGIO FINO A 240M - COMPATIBILE DOME PTZ CAMERA - 24/7 - MULTI-LEVEL PROTECTION - DAHUA - PFR4K-B240

Dahua Technology
Allarme Radar 24 Ghz ONVIF® PoE - Dahua - PFR4K-B240
Per Protezione perimetro - Rilevamento ad ampio raggio (radiale 300m - Cross: 240m (umano posizione eretta) / 150m (umano a terra) - Compatibile con Dome PTZ Camera - Funzionamento 24/7 - Alta precisone - Filtraggio Target - Collegamento radar PTZ - Controllo PTZ front-end - Gestione centralizzata - Smart Tracking - 1 ingresso + 5 uscite Allarme - 1 slot microSD da 256 GB (non inclusa) - 1 RJ 45 (10Base-T/100Base-TX) - Protezione IP67 / IK10 da atti vandalici - Fabbricato in ADC12 e Policarbonato - Colore bianco.



Dettagli prodotto

allarme radar per dome ptz camera 24/7 dahua - fino a 150m
  • Allarme Radar 24 Ghz ONVIF® PoE - Dahua - PFR4K-B240
  • Rilevamento ad ampio raggio (max 300m radiali / Cross 240m (umano in piedi) - 150m (umano sdraiato)
  • Compatibile con Dome PTZ Camera
  • Funzionamento 24/7
  • Alta precisone
  • Filtraggio Target
  • Collegamento radar PTZ
  • Controllo PTZ front-end
  • Gestione centralizzata
  • Smart Tracking
  • 1 ingresso/5 uscite Allarme
  • 1 slot microSD da 256 GB (non inclusa)
  • 1 RJ 45 (10Base-T/100Base-TX)
  • Multi-level Perimeter Protection: Diverse priorità di allarme, collegamento di allarmi esterni, filtraggio persone/veicoli e rilevamento veicoli con bassa e media velocità
  • Protezione IP67 per uso in esterni
  • Protezione IK10 da atti vandalici
  • Certificazione FCC ID/CE RED
  • Garanzia 24 mesi

Scheda tecnica

Model PFR4K-B240
Performance
Max. Number of Targets 32
Detection Distance Radial 300 m (984.25 ft) (human, 0°)
Cross 240 m (787.40 ft) (human, walking/running)
Cross 150 m (492.12 ft) (human, crouch walking/crawling)
Detection Angle Horizontal: 20°
Vertical: 13°
Max. Detection Speed Radial: 80 km/h
Crossing: 36 km/h
Min. Detection Speed 1.8 km/h
Distance Accuracy ± 1.5 m (± 4.92 ft)
Angle Accuracy ± 1°
Max. Number of Areas 10
Modulation Type FMCW
Scan Frequency 8 Hz
Operating Frequency 24 GHz
Detection Target Type Human and vehicle
Function
Radar+PTZ Smart Tracking Supported on web manager
Track Mode Tour, distance priority, and time priority
Region Setting Intrusion: Alarm area, pre-warning area, and shield area
Tripwire: Alarm area
Target Filtering Human and vehicle filtering
Record Mode Manual record, scheduled record, and alarm record
Record priority: Manual > Alarm > Scheduled
Restore Default Settings Restore default settings with one click
Security Mode Authorized user name and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
Positioning GPS, Glonass
Map Encoding Yes
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x
Interoperability ONVIF® Profile S&G, CGI
User/Host 19
Storage NAS; FTP; micro SD card (256 G)
Browser IE: Versions later than IE7
Google: Versions earlier than Chrome45
Firefox: Versions earlier than Firefox46
Matched Platform DSS Pro
Port
Alarm Input 1 channel (support 5V DC potential and 5mA current)
Alarm Output 5 channels (wet contact; support max 12V DC potential and max 300mA current)
Alarm Linkage Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, and email sending
Alarm Event Radar alarm, no SD card, SD card capacity warning, SD card error, network disconnection, IP conflict, full disk, and illegal access
SD Card Yes
Indicator Light Network connection:Yellow
Running status: Red/Green
Power: Green
Power
Power Supply 12V DC (±30%), 24V AC (±30%), PoE (802.3at)
Power Consumption Basic: 16 W
Max.: 20 W
Environment
Operating Temperature –40°C to +65°C (–40°F to +149°F)
Operating Humidity ≤95% (RH)
Storage Temperature –40°C to +80°C (–40°F to +176°F)
Storage Humidity ≤95% (RH)
Ingress Protection IP67/IK10
ESD Contact discharge: 6k
Air discharge: 8k
Surge Protection Grade Common mode: ± 6kV
Differential Mode: ± 2kV
Structure
Product Color White
Casing ADC12+PC
Product Dimensions 244.9 mm × 184.9 mm × 61.2 mm (9.64" × 7.28" × 2.41")
Packaging Dimensions 328.0 mm × 146.0 mm × 278.0 mm (12.90" × 5.75" × 10.95")
Net Weight 2.84 kg (6.26 lb)
Gross Weight 3.40 kg (7.49 lb)
Installation Method Wall mount, ceiling mount, pole mount
Installation Height 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended)
Installation Position Install separately
Certifications
Certifications CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1
CE RED: EN 300440

Ulteriori dettagli

Standard ONVIF® Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione.
- Smart Tracking
- Multi-level Protecion: Diverse priorità di allarme, collegamento di allarmi esterni, filtraggio persone/veicoli e rilevamento veicoli con bassa e media velocità.
Questa telecamera presenta ingressi e uscite allarme Questa telecamera presenta 1 ingressi + 5 uscite allarme
Protezione IP67 Protezione IP67 da acqua e polvere

IK 10 è il massimo livello di protezione da danno diretto. Questo permette l'utilizzo anche se sono presenti rischi di vandalismo

1x Slot SD Card (Max 256GB) non inclusa: vednuta separatamente

12VDC_Aliment

Alimentazione PoE

Alimentazione DC 12V (±30%), AC 24V (±30%), PoE (802.3at)
Icona Garanzia Italiana Questo prodotto è coperto da Garanzia di 24 mesi.

Download

Dimensioni allarme radar per dome ptz camera 24/7 dahua - fino a 150m
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
