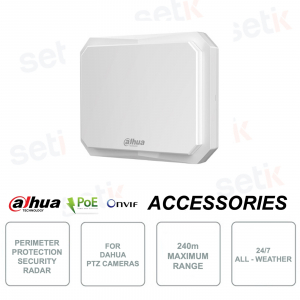

ONVIF® 240m POE IP Radar for Perimeter Protection

ONVIF® 240m POE IP Radar for Perimeter Protection

-57%

Radar Alarm 24 Ghz IP ONVIF PoE Dahua - PFR4K-B240 - Compatible with Dome PTZ Camera - 24/7 operation in all weather conditions - Wide detection range: 300m radial / Cross 240m (walking human) / Cross 150m (crawling human) - High precision - Targets up to 32 - PTZ radar connection - Front-end PTZ control - Centralized management and Smart Tracking - Multi-level Protection : Different alarm priorities, external alarm connection, people / vehicles filtering and vehicle detection with low and medium speed - 1 Alarm input / 5 Alarm outputs - 1 256 GB microSD slot (not included) - 1xRJ 45 (10Base-T / 100Base-TX) - IP67 / IK10 vandalism protection - FCC ID / CE RED certification - Dahua Technology.

Reference: PFR4K-B240

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

24 GHz RADAR ALARM - ONVIF® POE - RANGE UP TO 240M - COMPATIBLE WITH DOME PTZ CAMERA - 24/7 - MULTI-LEVEL PROTECTION - DAHUA - PFR4K-B240

Dahua Technology
24 Ghz ONVIF® PoE Radar Alarm - Dahua - PFR4K-B240
For Perimeter Protection - Wide range detection (radial 300m - Cross: 240m (human standing position) / 150m (human on the ground) - Compatible with Dome PTZ Camera - 24/7 Operation - High accuracy - Target filtering - PTZ radar connection - Front-end PTZ control - Centralized management - Smart Tracking - 1 input + 5 Alarm outputs - 1 256 GB microSD slot (not included) - 1 RJ 45 (10Base-T/100Base-TX) - IP67 / IK10 vandalism protection - Made of ADC12 and Polycarbonate - White color.

Product details

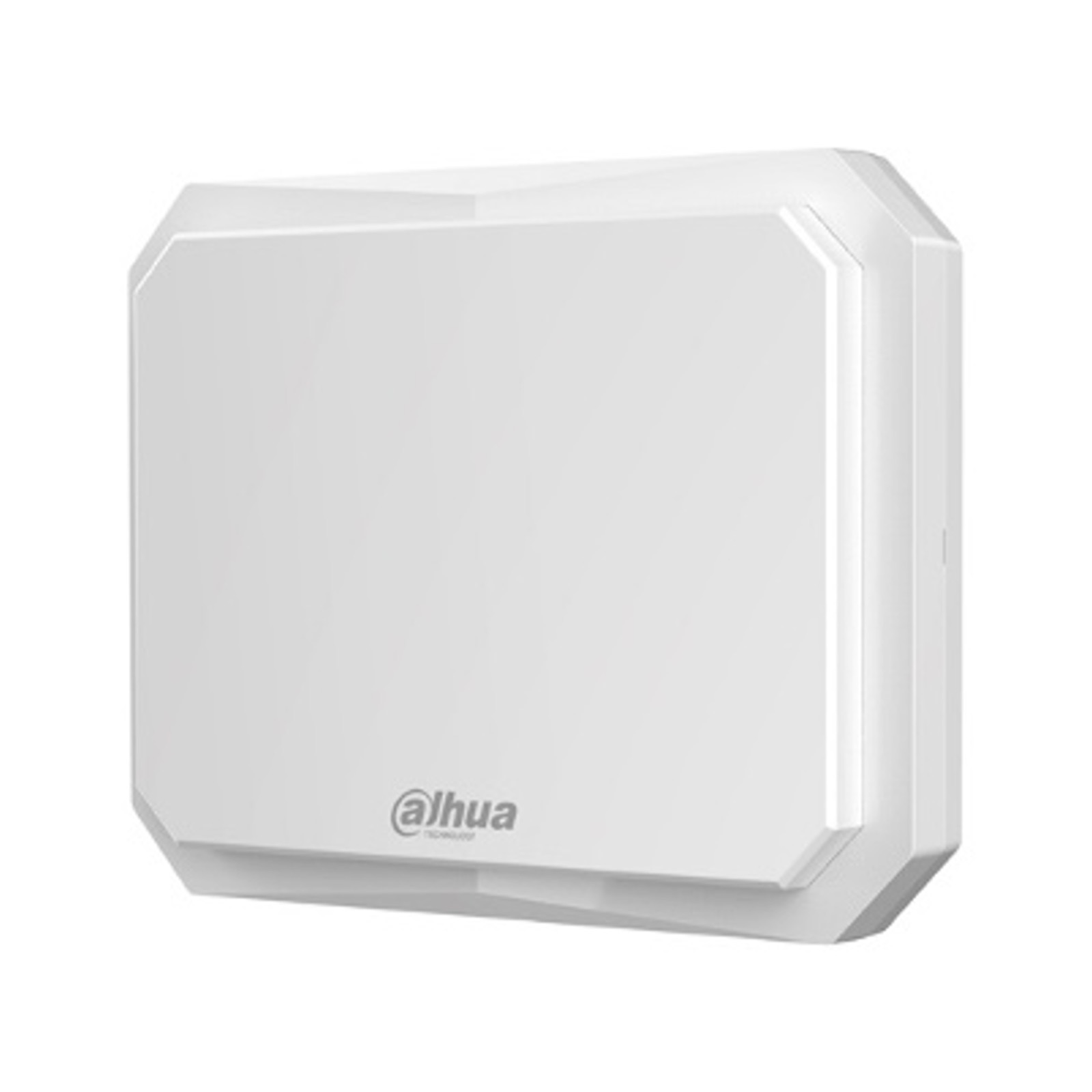

allarme radar per dome ptz camera 24/7 dahua - fino a 150m
  • 24 Ghz ONVIF® PoE Radar Alarm - Dahua - PFR4K-B240
  • Wide range detection (max 300m radial / Cross 240m (human standing) - 150m (human lying down)
  • Compatible with Dome PTZ Camera
  • 24/7 Operation
  • High precision
  • Target Filtering
  • PTZ radar connection
  • Front-end PTZ control
  • Centralized management
  • Smart Tracking
  • 1 input/5 outputs Alarm
  • 1 x 256GB microSD slot (not included)
  • 1 RJ 45 (10Base-T/100Base-TX)
  • Multi-level Perimeter Protection: Different alarm priorities, external alarm linkage, people/vehicle filtering and low and medium speed vehicle detection
  • IP67 protection for outdoor use
  • IK10 protection against vandalism
  • FCC ID/CE RED certification
  • 24 month warranty

Technical data sheet

Model PFR4K-B240
Performance
Max. Number of Targets 32
Detection Distance Radial 300 m (984.25 ft) (human, 0°)
Cross 240 m (787.40 ft) (human, walking/running)
Cross 150 m (492.12 ft) (human, crouch walking/crawling)
Detection Angle Horizontal: 20°
Vertical: 13°
Max. Detection Speed Radial: 80 km/h
Crossing: 36 km/h
Min. Detection Speed 1.8 km/h
Distance Accuracy ± 1.5 m (± 4.92 ft)
Angle Accuracy ± 1°
Max. Number of Areas 10
Modulation Type FMCW
Scan Frequency 8 Hz
Operating Frequency 24 GHz
Detection Target Type Human and vehicle
Function
Radar+PTZ Smart Tracking Supported on web manager
Track Mode Tour, distance priority, and time priority
Region Setting Intrusion: Alarm area, pre-warning area, and shield area
Tripwire: Alarm area
Target Filtering Human and vehicle filtering
Record Mode Manual record, scheduled record, and alarm record
Record priority: Manual > Alarm > Scheduled
Restore Default Settings Restore default settings with one click
Security Mode Authorized user name and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
Positioning GPS, Glonass
Map Encoding Yes
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x
Interoperability ONVIF® Profile S&G, CGI
User/Host 19
Storage NAS; FTP; micro SD card (256G)
Browser IE: Versions later than IE7
Google: Versions earlier than Chrome45
Firefox: Versions earlier than Firefox46
Matched Platform DSS Pro
Port
Alarm Input 1 channel (support 5V DC potential and 5mA current)
Alarm Output 5 channels (wet contact; support max 12V DC potential and max 300mA current)
Alarm Linkage Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, and email sending
Alarm Event Radar alarm, no SD card, SD card capacity warning, SD card error, network disconnection, IP conflict, full disk, and illegal access
SD card Yes
Indicator Light Network connection: Yellow
Running status: Red/Green
Power: Green
Power
Power Supply 12V DC (±30%), 24V AC (±30%), PoE (802.3at)
Power Consumption Basic: 16 W
Max.: 20 W
Environment
Operating Temperature –40°C to +65°C (–40°F to +149°F)
Operating Humidity ≤95% (RH)
Storage Temperature –40°C to +80°C (–40°F to +176°F)
Storage Humidity ≤95% (RH)
Ingress Protection IP67/IK10
ESD Contact discharge: 6k
Air discharge: 8k
Surge Protection Grade Common mode: ± 6kV
Differential Mode: ± 2kV
Structure
Product Color White
Casing ADC12+PC
Product Dimensions 244.9 mm × 184.9 mm × 61.2 mm (9.64" × 7.28" × 2.41")
Packaging Dimensions 328.0 mm × 146.0 mm × 278.0 mm (12.90" × 5.75" × 10.95")
Net Weight 2.84 kg (6.26 lb)
Gross Weight 3.40 kg (7.49 lb)
Installation Method Wall mount, ceiling mount, pole mount
Installation Height 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended)
Installation Position Install separately
Certifications
Certifications CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1
CE RED: EN 300440

Further details

ONVIF® Standard Onvif , the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a stand-alone camera that can never be used with recording systems.
- Smart Tracking
- Multi-level Protection: Different alarm priorities, external alarm connection, people/vehicle filtering and low and medium speed vehicle detection.
This camera features alarm inputs and outputs This camera has 1 input + 5 alarm outputs
IP67 protection IP67 protection from water and dust

IK 10 is the highest level of protection against direct damage. This allows for use even where there is a risk of vandalism.

1x SD Card Slot (Max 256GB) not included: sold separately

12VDC_Power

PoE power supply

Power supply DC 12V (±30%), AC 24V (±30%), PoE (802.3at)
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

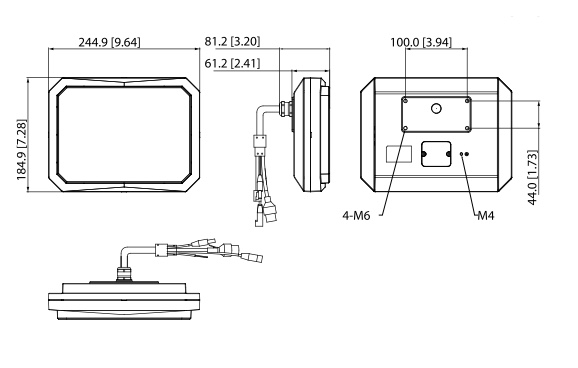

Dahua 24/7 PTZ Dome Camera Radar Alarm Dimensions - Up to 150m
