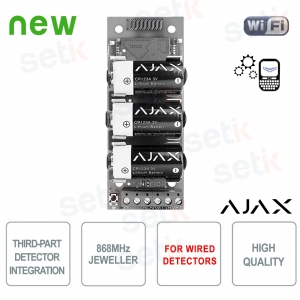

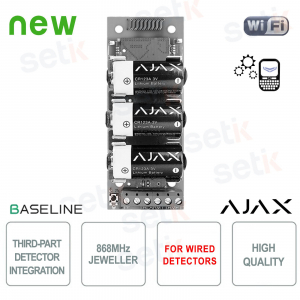

38184.18.NC1 #38184| Ajax Transmitter Jeweller è un modulo compatto progettato per integrare rivelatori cablati di terze parti all’interno dei sistemi di sicurezza Ajax, permettendo di trasformare sensori tradizionali in dispositivi wireless intelligenti. Garantisce comunicazione radio Jeweller bidirezionale e criptata, integrazione di un dispositivo cablato con gestione avanzata degli eventi, protezione antisabotaggio con tamper anti-apertura, alimentazione a batteria con lunga autonomia e configurazione completa da app Ajax, offrendo una soluzione affidabile e professionale per l’aggiornamento degli impianti esistenti. Ajax
Riferimento: 38184.18.NC1
Marca: Ajax Systems
EAN: 4823114015489
Disponibilità: 29
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
38184.18.NC1 | MODULO WIRELESS PER INTEGRARE UN DISPOSITIVO DI TERZE PARTI NEL SISTEMA AJAX

Il Ajax Transmitter Jeweller, 38184.18.NC1, è un modulo compatto progettato per integrare rivelatori cablati di terze parti nei sistemi di sicurezza Ajax, trasformando sensori tradizionali in dispositivi wireless evoluti. Grazie alla tecnologia radio Jeweller e alla gestione completa tramite app, consente di monitorare eventi, stato e alimentazione del dispositivo collegato, garantendo affidabilità, semplicità di installazione e aggiornamento professionale degli impianti esistenti.
Specifiche principali:
- Comunicazione radio Jeweller bidirezionale e criptata
- Integrazione di sensori cablati di terze parti nei sistemi Ajax
- Gestione completa degli eventi e dello stato tramite app Ajax
- Protezione antisabotaggio con tamper anti-apertura e anti-rimozione
- Alimentazione a batteria con lunga autonomia operativa
Ulteriori dettagli
Scheda tecnica
| 38184.18.NC1 | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | up to 25 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,600 m Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming |
| Wired devices connection | |
| Supported configurations | Transmitter Jeweller has two pairs of terminal inputs for tamper and alarm sensor connection. Alarm and tamper inputs can be used to connect a wired device using the AATT (Alarm Alarm Tamper Tamper) scheme |
| Terminals for wired device connection |
|
| Third-party device contact states | NO, NC |
| Tamper contact states | NO, NC |
| Cable length | up to 130 m When using 24 AWG twisted pair cable |
| Operation mode | pulse, bistable |
| Sensor modes | Notify of alarms, Switch arming modes |
| Event types | 14 event types of wired devices
|
| Recommendations | Transmitter Jeweller should be installed inside the wired detector enclosure. The module requires a minimum space with dimensions of 110 × 41 × 24 mm. If it is not possible to install Transmitter Jeweller within the detector’s enclosure, any available radiotransparent casing can be used. |
| Sabotage protection | |
| Protection against spoofing | integration module authenticatio |
| Accelerometer | alert when the integration module is moved |
| Tamper alarm terminals | Terminals for connecting to a wired device tamper (if applicable). |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings |
| Power supply | |
| Battery | 3 × CR123A Pre-installed. Battery life depends on the power consumption of a connected wired device |
| Output to the connected wired device | 3.3 V⎓, up to 125 mA One power supply line from Transmitter Jeweller |
| Enclosure | |
| Color | Black |
| Dimension | 100 × 39 × 22 mm |
| Weight | 74 g |
| Operating temperature range | from −25 °C to +50 °C |
| Operating humidity | up to 75% |
| Electric shock protection | Class III |
| Complete set | Transmitter Jeweller 3 × CR123A battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
