ARC3008C - è una centralina di allarme cablata della serie Fortress, progettata per installazioni residenziali e commerciali fino a 8 zone espandibili fino a 72, con 3 uscite programmabili e supporto fino a 8 tastiere via RS‑485. La scheda gestisce oltre 11 tipologie di zona, inclusi NC, NO, EOL/D-EOL/T-EOL, sensori inerziali e a impulsi, con resistenza configurabile (2K7/4K7/6K8). Dotata di porta LAN, PSTN e moduli GSM/GPRS/LTE, invia notifiche via SMS, voce o app DMSS, garantendo continuità anche in caso di assenza di Ethernet. Supporta allarmi di rete, manomissione, batteria e alimentazione, è aggiornabile via firmware in campo e integra sistema operativo embedded Linux per elevata stabilità e sicurezza. Con log fino a 1000 eventi, 100 utenti e 8 aree/partizioni, è la scelta professionale per sistemi affidabili e scalabili. Dahua
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

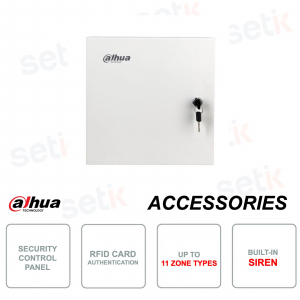

ARC3008C| CENTRALE ALLARME CABLATA

Il Dahua ARC3008C è una centralina di allarme cablata professionale fino a 8 zone (espandibili a 72) e 2 uscite programmabili (fino a 82), ideale per installazioni residenziali e commerciali. Supporta oltre 11 tipologie di zone con terminazioni configurabili (NC, NO, EOL, DEOL, 3DEOL) e ingressi per sensori inerziali o a impulsi. Dotata di porta LAN e moduli GSM/GPRS/LTE/PSTN, invia notifiche via app, SMS o voce, anche in caso di caduta della rete. Rileva anomalie (come manomissioni, guasti o perdita alimentazione), si aggiorna via firmware sul campo e integra log fino a 1.000 eventi, gestione fino a 100 utenti con 7 livelli autorizzativi, garantendo un sistema scalabile e affidabile.
Ulteriori dettagli

Scheda tecnica
| ARC3008C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 8 on-board zones, can be expanded to 72 for zone alarm input | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 2 on-board PGMs, can be expanded to 82 (channel 1–2: MOS outputs, channel 3–82: Relay outputs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | 1 RJ-45 10M/100M self-adaptive Ethernet port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PSTN | One group of PSTN RJ-11 ports for connecting to PSTN module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 2-channel RS–485 ports, support keyboard (A1B1) and expansion module (A2B2) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2G | UART port for connecting to 2G module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4G | USB port for connecting to 4G module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Siren | 1 12V/1A siren output port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Battery | 1 12V/7Ah battery port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Auxiliary Power Output | 2 12V/1A AUX power output ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tamper | 1 cover removal tamper switch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMS Notification | Supports up to 8 telephone numbers for SMS and remote control (with 2G or 4G module) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Phone Call Notification | Supports up to 8 telephone numbers for vocal message (with 2G or 4G module) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | TCP/IP, DHCP, static IP, P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Configuration Method | Keypad, client software | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Arm/Disarm Method | Keyboard, swipe card, DMSS App, SMS,Schedule | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Agreement | Supports customized access to the third parties by SIA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of Keyboards | Max. 8 keypads | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Area | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Partition | Each area includes 2 partitions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Timers | 8 timers, can be used for user authorization restrictions, output linkage control, automatic arming and disarming control, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Management | Automatic switching between main power supply and backup power supply | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Event Logs | Max. 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User Management | Max. 100 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Query | Query for zone fault, system fault, program version, and signal strength | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Language | English, Italian | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| App | DMSS App | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RFID Card | Arm and disarm by swiping card (With ASR1101A/ASR1101A-D) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Power | Input: 110-220V AC, 50/60Hz Output: 14.5V DC 2.7A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standby Power | 12V DC/7Ah lead-acid battery | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Max. 35W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –10°C to +50°C (14°F to 122 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%–90% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 275.0 mm × 275.0 mm × 77.0 mm (10.83" × 10.83" × 3.03") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | ≤3 kg (6.61 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE: 4789104635 EN 50131-3; Security Grade 2; Environment Class II | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
