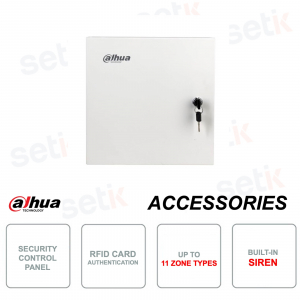

Dahua ARC3008C Wired Alarm Control Panel – 8 Expandable Zones and SMS Notifications

Dahua ARC3008C Wired Alarm Control Panel – 8 Expandable Zones and SMS Notifications

 
-35%

ARC3008C - is a wired alarm control panel from the Dahua Fortress series, designed for residential and commercial installations with up to 8 zones expandable up to 72 , with 3 programmable outputs and support for up to 8 keypads via RS-485 . The board manages over 11 zone types , including NC, NO, EOL / D-EOL / T-EOL, inertial and pulse sensors, with configurable resistance (2K7 / 4K7 / 6K8). Equipped with LAN port, PSTN and GSM / GPRS / LTE 2G or 4G modules , it ensures reliable communication even in the absence of an Ethernet connection. It supports notifications via SMS and phone calls to up to 8 numbers , allowing the sending of voice messages and remote control, as well as management via DMSS app . The system can be armed and disarmed via keypad, proximity card, DMSS app, SMS or time programming . It also supports network, tamper, battery, and power alarms and can be updated via firmware directly in the field. Thanks to the embedded Linux operating system , it guarantees high stability and security. With logs of up to 1000 events, 100 users, and 8 areas/partitions , it represents a professional, reliable, and scalable solution for the creation of Dahua security systems.

Technical Data Sheet

Artikel-Nr.: ARC3008C

Marke: Dahua

EAN: 6939554928307

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

ARC3008C | WIRED ALARM CONTROL UNIT


Dahua

The Dahua ARC3008C is a professional wired alarm control unit designed for residential and commercial installations, capable of managing up to 8 zones, expandable to 72 , and 2 programmable outputs, expandable up to 82. It supports over 11 zone types , with configurable NC, NO, EOL, DEOL and 3DEOL terminations, as well as inputs dedicated to inertial or pulse sensors. Equipped with a LAN port and compatible with GSM/GPRS/LTE/PSTN communication modules, it guarantees continuity of communications even in the event of Ethernet network unavailability. The system supports notifications via SMS and phone calls to up to 8 numbers , with sending of voice messages and the possibility of remote control via 2G or 4G module, as well as management via DMSS app . The system can be armed and disarmed via keypad, proximity card, DMSS app, SMS or time programming . The control unit also detects anomalies such as tampering, faults and power loss , supports firmware upgrades directly in the field and integrates a log of up to 1,000 events . The management of up to 100 users with 7 authorization levels completes a professional, reliable and scalable solution for the creation of Dahua security systems.

Further details

✅ Up to 72 expandable zones and 82 programmable outputs
✅ Support for 11+ zone types with EOL resistors (2K7/4K7/6K8)
✅ Ethernet, PSTN and GSM/GPRS/LTE modules for DMSS app, SMS and voice notifications
✅ Anomaly detection: network failure, PSTN, battery, power supply, tampering
✅ Support up to 100 users, 8 areas, 2 partitions per area, 8 programmable timers
✅ Event log up to 1000, multi-level user management, RS-485 integration for keyboards/modules
✅ Power supply 110-220 V, battery backup 12 V/7 Ah, max power 35 W
✅ Field-upgradable firmware, built-in Linux OS for advanced stability
✅ Certifications: CE, EN 50131-3 Grade 2, Environmental Class II

Technical data sheet

ARC3008C

Port

Alarm Input

8 on-board zones, can be expanded to 72 for zone alarm input

Alarm Output

2 on-board PGMs, can be expanded to 82 (channel 1–2: MOS outputs, channel 3–82: Relay outputs)

Network

1 RJ-45 10M/100M self-adaptive Ethernet port

PSTN

One group of PSTN RJ-11 ports for connecting to PSTN module

RS-485

2-channel RS–485 ports, support keyboard (A1B1) and expansion module (A2B2)

2G

UART port for connecting to 2G module

4G

USB port for connecting to 4G module

Siren

1 12V/1A siren output port

Battery

1 12V/7Ah battery port

Auxiliary Power Output

2 12V/1A AUX power output ports

Tamper

1 cover removal tamper switch
1 siren tamper input

Function

SMS Notification

Supports up to 8 telephone numbers for SMS and remote control (with 2G or 4G module)

Phone Call Notification

Supports up to 8 telephone numbers for voice message (with 2G or 4G module)

Network Protocol

TCP/IP, DHCP, static IP, P2P

Configuration Method

Keypad, client software

Arm/Disarm Method

Keyboard, swipe card, DMSS App, SMS, Schedule

External Agreement

Supports customized access to the third parties by SIA

Number of Keyboards

Max. 8 keypads

Area

8 areas

Partition

Each area includes 2 partitions

Timers

8 timers, can be used for user authorization restrictions, output linkage control, automatic arming and disarming control, and more

Power Management

Automatic switching between main power supply and backup power supply
Alarm for main power loss
Alarm for battery loss and battery voltage fault

Event Logs

Max. 1000

User Management

Max. 100 users
7 permission levels: Supervisor, Manager, Master, User, Temporary, Duress, and Patrol
1 TECHNICIAN

Query

Query for zone fault, system fault, program version, and signal strength

Language

English, Italian

App

DMSS App

RFID Card

Arm and disarm by swiping card (With ASR1101A/ASR1101A-D)

General

Main Power

Input: 110-220V AC, 50/60Hz Output: 14.5V DC 2.7A

Standby Power

12V DC/7Ah lead-acid battery

Power Consumption

Max. 35W

Operating Temperature

–10°C to +50°C (14°F to 122 °F)

Operating Humidity

10%–90% (RH)

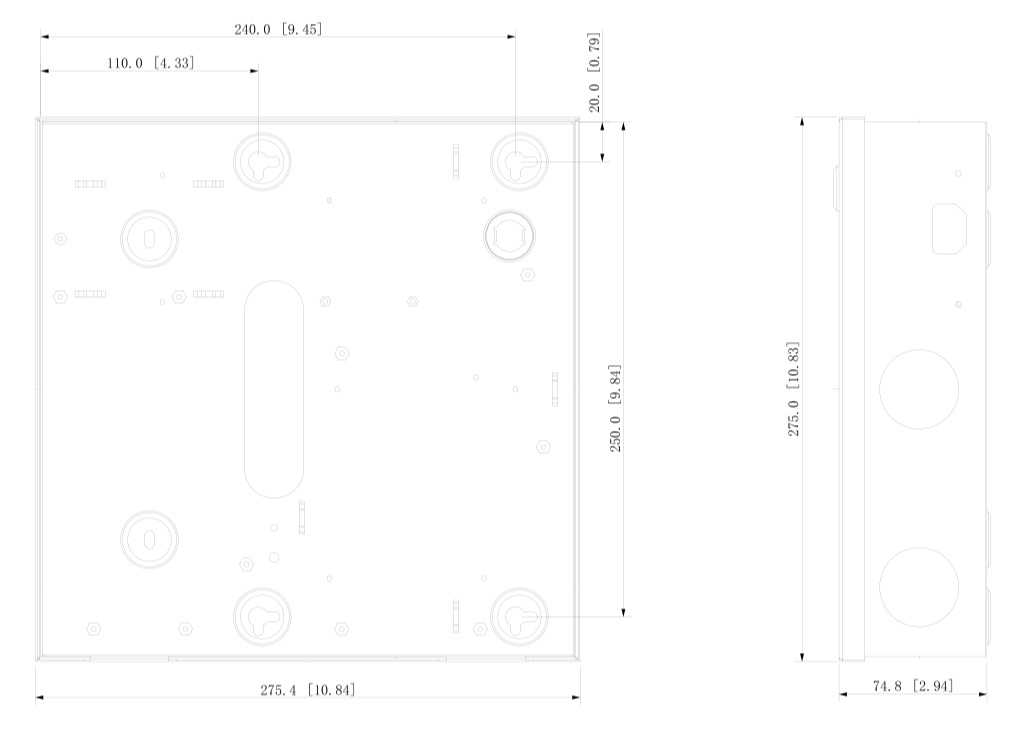

Product Dimensions

275.0mm × 275.0mm × 77.0mm

(10.83" × 10.83" × 3.03") (L × W × H)

Installation

Wall mount

Net Weight

≤3 kg (6.61 lb)

Certification

CE: 4789104635 EN 50131-3; Security Grade 2; Environment Class II
