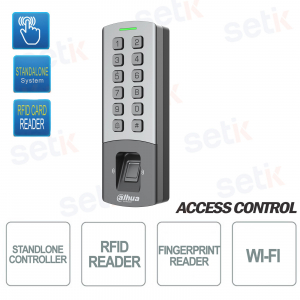

ASI1212M-W Controllo Accessi Standalone con Impronta Digitale Badge RFID e Wi-Fi per Ambienti Professionali e Outdoor - Dahua
ASI1212M-W è un terminale di controllo accessi standalone ideale per ambienti professionali e outdoor, progettato per garantire sicurezza avanzata e gestione intelligente degli ingressi. Supporta accesso tramite badge RFID, password e impronta digitale con capacità fino a 10.000 utenti e 100.000 eventi, offrendo massima affidabilità anche in contesti ad alto traffico. La struttura con frontale in lega di zinco, tastiera retroilluminata e protezione IP65 e IK08 assicura resistenza e durata nel tempo. Dotato di connettività TCP/IP e Wi-Fi, integrazione con sistemi Dahua e allarmi di sicurezza multipli, rappresenta una soluzione completa e moderna per il controllo accessi evoluto. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
ASI1212M-W | ACCESSO AUTONOMO TRAMITE CARTA, PASSWORD E IMPRONTA DIGITALE

Il Dahua ASI1212M-W è un terminale di controllo accessi standalone evoluto, progettato per garantire sicurezza, affidabilità e gestione intelligente degli ingressi in contesti professionali e outdoor come uffici, aziende, scuole e strutture pubbliche. Il dispositivo consente l’autenticazione tramite badge RFID, password e impronta digitale, assicurando rapidità di accesso e un elevato livello di protezione. Grazie alla connettività TCP/IP e Wi-Fi, alla configurazione via web e alla compatibilità con le principali piattaforme Dahua, rappresenta una soluzione moderna e scalabile. La struttura robusta con frontale in lega di zinco e le certificazioni IP65 e IK08 lo rendono ideale anche per installazioni esterne, mentre i sistemi di allarme integrati aumentano il controllo e la sicurezza complessiva
Specifiche principali:
- Accesso multifattore con badge RFID, password e impronta digitale
- Capacità fino a 10.000 utenti e 100.000 eventi memorizzati
- Connettività TCP/IP e Wi-Fi con configurazione web
- Struttura robusta con protezione IP65 e IK08 per uso outdoor
- Supporto protocolli RS-485 e Wiegand per massima integrazione
- Allarmi avanzati contro manomissione, intrusione e coercizione
Ulteriori dettagli

Scheda tecnica
| ASI1212M-W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4;UDP;P2P;IPv6;TCP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OSDP Protocol |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF;CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Type |
Standalone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Buzzer |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backlight |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
PC and zinc alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Verification Method |
Card;Password;Fingerprint;Remote |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Period List |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Holiday Period |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Update |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
First User Unlock |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Verification |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Restricted List/Trusted List |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Peripheral Card Reader |
Includes the 1-channel RS-485 card reader and 1-channel Wiegand card reader. You can easily switch between the two with just the flip of the switch. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Issuing Card by Master Card |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-user Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Real-time Monitoring |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-factor Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card;Desfire card (EV3,Compatible with Dahua card by default) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Modulation Type |
ASK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Range |
13.56 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Transmission Power |
42dBuA/m @10m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Transmission Power |
≤20 dBm@2,400–2,483.5 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Standard |
IEEE 802.11b, 802.11g and 802.11n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Frequency Range |
2,400–2,483.5 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Security Encryption |
WPA/WPA2 and WPA-PSK/WPA2-PSK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
0 mm–30 mm (0"–1.18") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint Sensor Type |
Capacitive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint Verification Mode |
1:N |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint Comparison Time |
1.5 sec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint Recognition Time |
0.5 sec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User (Card) Type |
Normal, VIP, patrol, guest, blocklist, and other users, custom user 1 and custom user 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User Capacity | 10,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fingerprint Capacity | 3,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Capacity | 10,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Password Capacity | 10,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Capacity | 100,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 port that can also be used by the Wiegand card reader |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
1 port that can also be used by the RS-485 card reader. (Wiegand input is 26, 34 or 66 bits self-adaptive. Wiegand output is 34 bits by default, and can be configured to 26 or 66 bits.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 channel that can also be used by the doorbell output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Doorbell |
1 channel that can also be used by the alarm output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Output Port | 1 channel (12 V, 0.5 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-pass Back |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Sensor Timeout |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intrusion |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illegal Card Exceeding Threshold |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress Fingerprint |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 1.5 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65;IK08 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤18 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
169 mm × 57.5 mm × 33.3 mm (6.65" × 2.26" × 1.31") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
219 mm × 111 mm × 98 mm (8.62" × 4.37" × 3.86") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Transport Package Dimensions |
585 mm × 470 mm × 320 mm (23.03" × 18.50" × 12.60") (H× W × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.65 kg (1.43 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
The bracket of wall mount is included. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20 °C to +70 °C (–4 °F to + 158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
