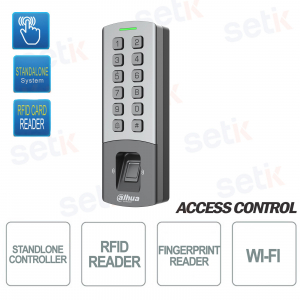

ASI1212M-W | INDEPENDENT ACCESS VIA CARD, PASSWORD, AND FINGERPRINT

Dahua

The Dahua ASI1212M-W is an advanced standalone access control terminal designed to ensure security, reliability, and intelligent management of entrances in professional and outdoor environments such as offices, companies, schools, and public facilities. The device allows authentication via RFID badge, password, and fingerprint, ensuring quick access and a high level of protection. Thanks to TCP/IP and Wi-Fi connectivity, web configuration, and compatibility with major Dahua platforms, it represents a modern and scalable solution. The rugged construction with a zinc alloy front and IP65 and IK08 certifications make it ideal for outdoor installations, while the integrated alarm systems increase control and overall security.

Main specifications:

- Multi-factor access with RFID badge, password and fingerprint

- Capacity up to 10,000 users and 100,000 stored events

- TCP/IP and Wi-Fi connectivity with web configuration

- Robust construction with IP65 and IK08 protection for outdoor use

- RS-485 and Wiegand protocol support for maximum integration

- Advanced alarms against tampering, intrusion and coercion

Further details

System :
Dahua ASI1212M-W is based on embedded processor and standalone architecture, integrates IPv4 and IPv6 network protocols, supports OSDP, and ensures broad interoperability through ONVIF, CGI, SDK and API, ensuring seamless integration with professional security and access control systems.
Function:
The terminal enables complete access management through badge, password, fingerprint, and remote verification authentication. It supports multi-user and multi-factor authentication, real-time monitoring, web configuration from PC and mobile, and online updates for centralized and flexible management.
RFID:
The RFID system operates at 13.56 MHz and is compatible with IC cards and DesFire EV3, ensuring fast and secure reading at short distances, high reliability and full compatibility with Dahua badges for professional high-security applications.
Network :
Network connectivity includes RJ-45 Ethernet and IEEE 802.11 b/g/n Wi-Fi with WPA/WPA2 encryption, supports TCP/IP, P2P, DHCP and auto-registration, ensuring stable, secure communications and easy integration into existing network infrastructures.
Performance :
Biometric performance is guaranteed by a capacitive sensor with fingerprint recognition in 0.5 seconds and 1:N mode, ensuring fast, precise and reliable access even in high-traffic environments.
Capacity:
The device supports up to 10,000 users, 10,000 badges, 10,000 passwords, 3,000 fingerprints and 100,000 events, making it ideal for businesses, public facilities and complex contexts that require high scalability .
Doors:
It features configurable RS-485 and Wiegand ports, Ethernet network port, alarm inputs and outputs, lock control, exit button, door sensor and direct power supply for external locks or readers, offering maximum installation flexibility.
Alarm :
The security system integrates advanced functions such as anti-passback, tamper alarm, duress, intrusion, door sensor timeout and illegal badge threshold crossing, increasing the level of protection and real-time access control.
ASI1212M-W dimensions

Technical data sheet

ASI1212M-W

System

Main Processor

Embedded Processor

Button Type

Mechanical

Network Protocol

IPv4;UDP;P2P;IPv6;TCP

OSDP Protocol

Yes

Interoperability

ONVIF;CGI

SDK and API

Yes

Basic

Product Type

Standalone

Buzzer

Yes

Backlight

Yes

Casing Material

PC and zinc alloy

Function

Verification Method

Card;Password;Fingerprint;Remote

Period List

Door Status Detection

1 channel

Lock Control

1 channel

Power Output Port 1 channel (12 V, 0.5 A)

Alarm

Anti-pass Back

Yes

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

Duress Fingerprint

Yes

General

Power Adapter

Optional

Power Supply

12 VDC, 1.5 A

Protection

IP65;IK08

Power Consumption

≤18 W

Product Dimensions

169 mm × 57.5 mm × 33.3 mm (6.65" × 2.26" × 1.31") (L × W × H)

Packaging Dimensions

219 mm × 111 mm × 98 mm (8.62" × 4.37" × 3.86") (L × W × H)

Transport Package Dimensions

585 mm × 470 mm × 320 mm (23.03" × 18.50" × 12.60") (H × W × D)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

5%–95% (RH), non-condensing

Operating Environment

Outdoor

Gross Weight

0.65 kg (1.43 lb)

Accessory

The bracket of wall mount is included.

Installation

Wall Mount

Certifications

THERE IS

Storage Temperature

–20 °C to +70 °C (–4 °F to + 158 °F)

Storage Humidity

30%–75% (RH), non-condensing

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
