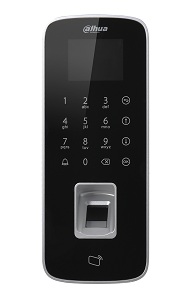

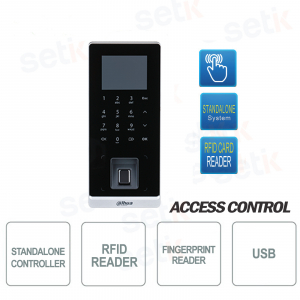

TERMINALE BIOMETRICO CON LETTORE DI PROSSIMITA' RFID PER TESSERE MIFARE & NFC - DAHUA

Dettagli prodotto

- Terminale biometrico - Dahua Security
- Utile per controllo accesso
- Tastiera touchscreen
- Display TFT da 2,4"
- Comunicazione: Wiegand, RS485 al lettore
- Identificazione attraverso Tessere RFID, Codice, impronta digitale o combinazione
- Compatibile tessere RFID Mifare 13,56MHz (Range 0-5 cm)
- Capacità fino a 30.000 utenti, fino a 3000 impronte, fino a 30.000 carte, fino a 30.000 password, fino a 150.000 eventi
- Supporta l'aggiunta di dispositivi P2P
- Porta 1x USB 2.0
- Alimentazione: 12 VDC, 1A
- Dimensioni: 183 mm*80 mm*25.5 mm
Scheda tecnica
| Model | ASI2212H-W |
| System | |
| Main processor | High-performance embedded processor |
| Network Protocol | IPv4; TCP; UDP; P2P |
| Basic | |
| Display Screen | 2.4" LCD |
| Screen Type | LCD |
| Resolution | 240 (H) × 320 (V) |
| Voice Prompt | Yes |
| Buzzer | Yes |
| Casing | PC + ABS |
| Function | |
| Unlock Mode | Card/Remote/Password/Fingerprint unlock and unlock through their combinations |
| Card Type | IC or ID card |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Wi-Fi | Yes |
| Peripheral Card Reader | 1 × RS-485 card reader 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Multi-factor Authentication | Yes |
| Web Configuration | Yes |
| Auto Regolation | Yes |
| Performance | |
| Card Reading Distance | 0-5 cm (0" to 1.97") |
| Fingerprint Sensor Type | Capacitive fingerprint scanner |
| Fingerprint Comparison Time | 1 s |
| User | |
| User (Card) Type | General user, VIP user, patrol user, guest user, blocklist user and others |
| Capacity | |
| User Capacity | 30,000 users |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 30,000 |
| Password Capacity | 30,000 |
| Record Capacity | 150,000 unlock records |
| Port | |
| RS-485 | 1 |
| RS-232 | 1 |
| Wiegand | 1-ch input/output |
| USB | 1 × USB2.0 port |
| Network Port | 1 × RJ-45, 100 Mbps |
| Alarm Input | 2 (digital quantity) |
| Alarm Output | 1 (relay) |
| Alarm Linkage | Yes |
| Doorbell | 1 |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-pass Back | 1 |
| Tamper Alarm | 1 |
| Duress Alarm | 1 |
| Door Sensor Timeout | 1 |
| Intrusion | 1 |
| Illegal Card Exceeding Threshold | 1 |
| Duress Fingerprint | 1 |
| General | |
| Power Adapter | Optional |
| Power Supply | 12 V DC, 1 A |
| Protection | IP65 (silicone sealant is needed, see the quick start guide) |
| Power Consumption | ≤ 12 W |
| Product Dimensions | 183 mm × 80 mm × 25.5 mm (7.20" × 3.15" × 1.00") (H × W × D) |
| Packaging Dimensions | 248 mm × 143 mm × 66 mm (9.76" × 5.63" × 2.60") (H × W × D, 1 in an inner carton) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–95% (RH), no condensing |
| Operating Environment | Indoor; outdoor |
| Net Weight | 264 g (0.58 lb) |
| Gross Weight | 464 g (1.02 lb) |
| Accessory | Bracket (included) |
| Installation | Surface mount |
| Certifications | CE; FCC |
Ulteriori dettagli
![]() |
Questo terminale è STANDALONE. Ciò significa che è autonomo, in grado di gestire le funzioni senza dover integrare altri dispositivi. |
![]() |
Dotato di Display LCD da 2,4" (320x240) |
|
|
Terminale biometrico autonomo con tastiera touch e identificazione tramite: - Combinazione - Tessera Mifare (13.56MHz) |
![]() ![]() |
Comunicazione tramite TCP/IP RJ45 (100Mbps), RS485 o Wiegand |
|
|
Fino a 30.000 utenti, |
|
Software Smart PSS di Dahua
|
|
![]() |
Equipaggiato di porta USB |
|
Questo prodotto è coperto da Garanzia di 24 mesi. |
