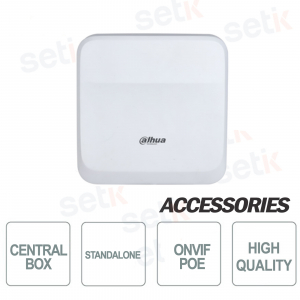

CONTROLLO ACCESSI: CENTRALINA PER CONTROLLO ACCESSI - 2 VARCHI - DAHUA

Dettagli prodotto
- Centralina a 2 Varchi - Dahua Security
- Supporta Remoto, tessere, password, impronta e combinazione
- Processore Incorporato
- Onvif PoE
- Interfaccia TCP/IP per comunicazione PC
- Comunicazione a PC attraverso RJ45 10/100 Mbps Porta Ethernet
- Interfaccia RS485 (2x) o Wiegand per lettori (2x)
- Supporta fino a 1000 Utenti, 3000 Impronte Digitali, 5000 Tessere, 300,000 Record
- Alimentazione: 12V DC
- Dimensioni (L x P x A) : 186.4 mm × 185.8 mm × 58.3mm
- Installazione a superficie, Montaggio su guida
Scheda tecnica
| Model | ASC3202B | |
| System | ||
| Main Processor | Embedded processor | |
| Internet Protocol | P2P; IPv4; DNS; DDNS; TCP; UDP | |
| Interoperability | ONVIF®; CGI | |
| SDK and API | Yes | |
| Basic | ||
| Product Type | Controller | |
| Buzzer | Yes | |
| Casing Material | PC + ABS | |
| Function | ||
| Unlock Mode | Card; remote; password; fingerprint; combination unlock | |
| Period List | 128 periods | |
| Holiday Period | 128 periods | |
| Network Update | Yes | |
| Blocklist/Allowlist | Yes | |
| Peripheral Card Reader | Supports 2 × RS-485 card readers; 2 × Wiegand card readers | |
| Multi-user Authentication | Yes (Use with platform) | |
| Real-time Monitoring | Yes | |
| Multi-factor Authentication | Yes | |
| Web Configuration | Yes | |
| User | ||
| User (Card) Type | General users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users | |
| Capacity | ||
| User Capacity | 1000 | |
| Fingerprint Capacity | 3000 | |
| Card Capacity | 5000 | |
| Record Capacity | 300,000 | |
| Port | ||
| RS-485 | 3 | |
| Wiegand | 2 × input | |
| Network Port | 1 × RJ-45 10/100 Mbps Ethernet port | |
| Alarm Input | 2 (digital quantity) | |
| Alarm Output | 2 (digital quantity) | |
| Alarm Linkage | Yes | |
| Exit Button | 2 | |
| Door Status Detection | 2 | |
| Lock Control | 2 | |
| Alarm | ||
| Tamper Alarm | Yes | |
| Duress Alarm | Yes | |
| Door Sensor Timeout | Yes | |
| Intrusion | Yes | |
| Illegal Card Exceeding Threshold | Yes | |
| Duress Fingerprint | Yes | |
| General | ||
| Power Supply | Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4 | |
| Protection | IK06 | |
| Power Consumption | Standby Power (no peripheral devices): ≤2 W Working Power: Total power budget if powered by DC: 1700 mA at 12 V for peripheral devices (locks, readers etc.) Total power budget if powered by PoE: 1200 mA at 12 V for peripheral devices (locks, readers etc.) | |
| Product Dimensions | 186.4 mm × 185.8 mm × 58.3mm (7.34" × 7.31" × 2.30") (L × W × H) | |
| Packaging Dimensions | 254 mm × 243 mm × 86 mm (10.00" × 9.57" × 3.39") (L × W × H) | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) | |
| Operating Humidity | 5%–95% (RH), non-condensing | |
| Operating Environment | Indoor | |
| Gross Weight | 0.99 kg (2.18 lb) | |
| Installation | Surface Mount; Guide Rail Mount | |
| Certifications | CE; FCC; UL | |
