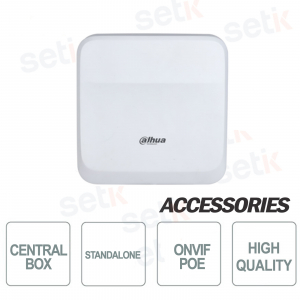

ACCESS CONTROL: ACCESS CONTROL UNIT - 2 GATES - DAHUA

Product details
- 2-door control unit - Dahua Security
- It supports Remote, Card, Password, Fingerprint and Combination
- Processor Embedded
- Onvif PoE
- TCP/IP interface for PC communication
- Communication to PC through RJ45 10/100 Mbps Ethernet port
- RS485 (2x) or Wiegand interface for readers (2x)
- Supports up to 1000 Users, 3000 Fingerprints, 5000 Cards, 300,000 Records
- Power supply: 12V DC
- Dimensions (L x W x H): 186.4mm × 185.8mm × 58.3mm
- Surface mounted, Rail mounted
Data sheet
| model | ASC3202B | |
| System | ||
| main processor | Embedded processor | |
| Internet Protocol | P2P; IPv4; DNS; DDNS; TCP; UDP | |
| Interoperability | ONVIF®; CGI | |
| SDKs and APIs | Yes | |
| Basic | ||
| ProductType | Controllers | |
| Buzzers | Yes | |
| Casing material | PC + ABS | |
| Function | ||
| UnlockMode | cards; remote; password; fingerprint; combination unlock | |
| Period List | 128 periods | |
| Holiday period | 128 periods | |
| Network Update | Yes | |
| Blocklist/Allowlist | Yes | |
| Peripheral Card Reader | Supports 2 × RS-485 card readers; 2 × Wiegand card readers | |
| Multi-user Authentication | Yes (Use with platform) | |
| Real time monitoring | Yes | |
| Multi-factor Authentication | Yes | |
| WebConfiguration | Yes | |
| user | ||
| User (Card) Type | General users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users | |
| Capacity | ||
| User Capacity | 1000 | |
| Fingerprint Capacity | 3000 | |
| Card Capacity | 5000 | |
| Record Capacity | 300,000 | |
| Port | ||
| RS-485 | 3 | |
| Wiegand | 2 × inputs | |
| Network Port | 1 × RJ-45 10/100Mbps Ethernet port | |
| Alarm Inputs | 2 (digital quantity) | |
| Alarm Output | 2 (digital quantity) | |
| Alarm Linkage | Yes | |
| Exit Button | 2 | |
| Door Status Detection | 2 | |
| Lock Control | 2 | |
| alarm | ||
| Tamper Alarm | Yes | |
| Duress Alarm | Yes | |
| Door Sensor Timeout | Yes | |
| Intrusion | Yes | |
| Illegal Card Exceeding Threshold | Yes | |
| Duress Fingerprint | Yes | |
| General | ||
| Power Supply | Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4 | |
| Protection | IK06 | |
| power consumption | Standby Power (no peripheral devices): ≤2 W Working Power: Total power budget if powered by DC: 1700 mA at 12 V for peripheral devices (locks, readers etc.) Total power budget if powered by PoE: 1200 mA at 12 V for peripheral devices (locks, readers etc.) | |
| Product Dimensions | 186.4mm × 185.8mm × 58.3mm (7.34" × 7.31" × 2.30") (L × W × H) | |
| Packaging Dimensions | 254mm × 243mm × 86mm (10.00" × 9.57" × 3.39") (L × W × H) | |
| Operating Temperature | –10°C to +55°C (+14°F to 131°F) | |
| Operating Humidity | 5%–95% (RH), non-condensing | |
| operating environment | indoors | |
| Gross Weight | 0.99kg (2.18lbs) | |
| Installation | surface mount; Rail Mount Guides | |
| Certifications | THERE IS; FCC; ul | |
