Controllo Accessi Dahua: Controller per controllo accessi a 8 varchi e singolo lettore, Due protocolli di comunicazione, fino a 100.000 tessere, 100.000 Utenti, 3.000 Impronte Digitali, 500,000 record. Supporta tessere, password, impronta digitale. Interfaccia TCP/IP per PC, Interfaccia Wiegand o RS-485 per lettori, Allarme e funzione watchdog. ASC2208C-S
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

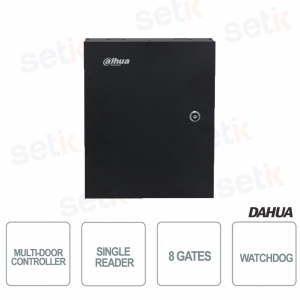

CONTROLLO ACCESSI: CONTROLLER PER CONTROLLO ACCESSI A 8 VARCHI E SINGOLO LETTORE - DAHUA

Dettagli prodotto

- Controller accessi otto varchi e singolo lettore - Dahua Security
 - Supporta tessere, password, impronta digitale
 - Interfaccia verso lettori RS485 o Wiegand
 - Utenti 100.000, Impronte Digitali 3.000, Tessere 100.000, Record 500.000
 - Funzioni allarme: Time out porta, Intrusione, Costrizione, Manomissione
 - Funzione WatchDog per evitare l'arresto del dispositivo
 - Dimensioni 337 mm × 272 mm × 90 mm
 - Alimentazione 100-240 V AC
 - Peso Lordo: 3,5kg

Scheda tecnica
| Model | ASC2208C-S | |
| System | ||
| Main Processor | Embedded processor | |
| Internet Protocol | IPv4; TCP; UDP | |
| OSDP Protocol | Yes | |
| SDK | Yes | |
| Basic | ||
| Product Appearance | Type C Iron Container | |
| Buzzer | Yes | |
| Casing Material | SECC steel board | |
| Function | ||
| Unlock Mode |
Card swiping; Remote; Password; Fingerprint | |
| Period List | 128 | |
| Holiday Period | 128 | |
| Network Update | Yes | |
| First-Card Unlock | Yes | |
| Remote Verification | Yes | |
| Blocklist/Allowlist | Yes | |
| Peripheral Card Reader | 8 RS-485 card readers  8 Wiegand card readers  |
|
| Multi-door Interlock | Yes | |
| Group Combination | Card swiping; password; fingerprint | |
| Real-Time Surveillance | Yes | |
| Multiple Authentication | Yes | |
| User | ||
| User (Card) Type | General user; VIP user; patrol user; guest user; blocklist user; other user | |
| Capacity |
||
| User | 100,000 | |
| Fingerprint | 3,000 | |
| Card | 100,000 | |
| Record Capacity | 500,000 | |
| Port | ||
| RS-485 Port | 9x RS-485 ports | |
| Wiegand | 8x Wiegand ports | |
| Network | 1 × 10/100 Mbps Ethernet port | |
| Alarm Input | 8 (digital quantity) | |
| Alarm Output | 8 (relay) | |
| Alarm Linkage | Yes | |
| Exit Button | 8 | |
| Door Status Detection | 8 | |
| Lock Control | 8 channels, NO by default | |
| Alarm | ||
| Anti-Passback | Yes | |
| Tamper | Yes | |
| Duress | Yes | |
| Door Sensor Timeout | Yes | |
| Intrusion | Yes | |
| Illegal Card Exceeding Threshold | Yes | |
| Duress Fingerprint | Yes | |
| General | ||
| Power Supply | 100-240 V AC | |
| IP Rating | IP20; Ik04 | |
| Power Consumption | ≤ 0.8 W (standby), ≤ 39.6 W (working) | |
| Product Dimensions | 337 mm × 272 mm × 90 mm (13.27”× 10.71”× 3.54") (H × W × D) | |
| Packaging Dimensions | 472 mm × 352 mm × 163 mm (18.58" × 13.86" × 6.42") (H × W × D) (one product in an inner carton) | |
| Operating Temperature | –30°C to +60°C (–22 °F to +140 °F) | |
| Operating Humidity | 5%–95% RH (non-condensing) | |
| Operating Environment | Indoor | |
| Gross Weight | 3.5 kg (7.72 lb) | |
| Installation | Surface mount | |
| Certification | CE; FCC; UL | |
