KTW04 - Il kit videocitofonico IP e Wi-Fi Dahua è una soluzione completa per il controllo degli accessi, composta da posto esterno con telecamera 2 MP e monitor interno touchscreen capacitivo da 7" con risoluzione 1024×600. Supporta Wi-Fi, PoE, audio bidirezionale, video H.265/H.264 e gestione remota tramite App DMSS, consentendo apertura porte con card IC, monitor interno o smartphone. Grazie alla certificazione IP65, alla visione notturna IR, al WDR 120 dB e alla compatibilità ONVIF, garantisce comunicazioni sicure e immagini di alta qualità in qualsiasi condizione. Dahua

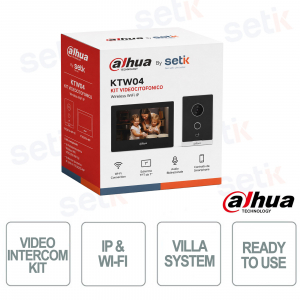

KTW04 | KIT VIDEOCITOFONICO DAHUA - IP & WIFI

Il kit videocitofonico Dahua KTW04 IP & Wi-Fi offre una soluzione completa per il controllo degli accessi, integrando un posto esterno con telecamera CMOS da 2 MP e un monitor interno touchscreen capacitivo da 7" con risoluzione 1024×600. Supporta Wi-Fi, PoE, audio bidirezionale, video H.265/H.264 e gestione remota tramite App DMSS, consentendo l'apertura della porta tramite card IC, monitor o smartphone. La visione notturna IR, il WDR 120 dB, la certificazione IP65 e la compatibilità ONVIF assicurano immagini di qualità e comunicazioni affidabili in ogni condizione, rendendolo ideale per ville e abitazioni moderne.
Specifiche principali:
- Kit: Videocitofono IP & Wi-Fi
- Telecamera: CMOS 2 MP con IR
- Monitor: Touchscreen capacitivo 7"
- Risoluzione display: 1024×600
- Connettività: Wi-Fi e PoE
- Compressione video: H.265 / H.264
- Audio: Bidirezionale
- Sblocco: Card IC, App e monitor
- Protezione: IP65
- Compatibilità: ONVIF
- Gestione: App DMSS
- Capacità card: 10.000 utenti
Ulteriori dettagli
- Postazione esterna WiFi Wireless
- Protocollo WiFi IEEE802.11b/802.11g/802.11n
- Telecamera integrata con sensore CMOS 1/2.8" da 2Mp
- Lettore Tessere IC per apertura porta
- Day/Night (IR CUT FILTER)
- Controllo porta ( 1 RS485, 1 Bottone Uscita)
- 1 Tamper Switch
- Protezione IP65
- Monitor 7 pollici capacitivo touchscreen
- Display 7" a colori touchscreen capacitivo (1024x600 pixel di risoluzione)
- Allarme: 6 ingressi + 1 uscita
- Audio Bidirezionale: Microfono + Altoparlante
- Integrazione allarme (6ingressi e 1 uscita)
- Ethernet 100M
Scheda tecnica
| Model | KTW04 |
| Technical Specification | |
| Model | VTO2211G-WP-S2 |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Camera | 1/2.8" 2 MP CMOS high definition, low illumination/WDR/color/IR |
| Field of View | H: 125°; V: 71°; D: 142° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720p, WVGA, D1, CIF Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate | PAL: 25 fps; NTSC: 30 fps |
| Video Bit Rate | 256 Kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W;Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card; app; indoor monitor |
| Card Type | IC card |
| Auto Snapshot | Yes |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Wi-Fi | Yes |
| Wi-Fi Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Max Transmission Power | ≤[email protected] |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 0 cm–4.3 cm (0"–1.69") |
| Issue Card Locally | Yes |
| Casing Material | PC + Acrylic |
| Capacity | |
| Card Capacity | 10000 |
| Port | |
| RS-485 | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 port,12 V and 200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 port, normally closed by default |
| Network Port | 1 × 10M/100M network port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Black plate and silvery frames |
| Power Supply | 12 VDC, 1 A Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE |
| Accessory | Included: Alarm power ribbon cable, brackets |
| Product Dimensions | IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | Beneath 3,000 m (9842.52 ft) |
| Operating Environment | Outdoor |
| Power Consumption | ≤ 1 W (standby), ≤ 7 W (working) |
| Gross Weight | 510 g (1.12 lb) |
| Anti-corrosion Level | Basic Protection |
| Technical Specification | |
| Model | VTH2621G-WP |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Interoperability | ONVIF |
| Network Protocol | RTSP; DNS; RTP; SIP; SSH |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7" TFT |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 KHz; 16 bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view text information released by the management center |
| DND Mode | Do not disturb period can be set;Do not disturb mode can be set |
| Number of Extensions | Villa: 9 Apartment: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Wi-Fi Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Max Transmission Power | ≤[email protected] |
| Storage | Micro SD Card, Max 64 GB (reserved for software) |
| Port | |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Door Bell | Yes (use any alarm input port) |
| Network Port | 1 × RJ-45 , 10/100 Mbps self-adaptive port |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Color | Black |
| Power Supply | 12 VDC, 1 A Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Accessory | Bracket (included) Alarm ribbon cable (included) |
| Product Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.46" × 5.30" × 1.02") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | Beneath 3,000 m (9,842.52 ft) |
| Power Consumption | ≤ 2 W (standby); ≤ 6 W (working) |
| Gross Weightl | 575 g (1.27 lb) |
| Anti-corrosion Level | Basic Protection |
