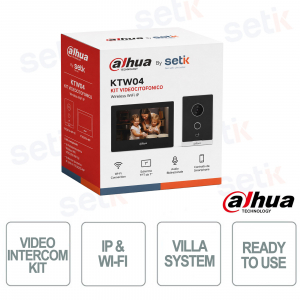

Dahua KTW04 IP Wi-Fi Video Intercom Kit with 7" Touchscreen Monitor and 2MP PoE IP65 Camera

Dahua KTW04 IP Wi-Fi Video Intercom Kit with 7" Touchscreen Monitor and 2MP PoE IP65 Camera

 
-56%

KTW04 - The Dahua IP and Wi-Fi video intercom kit is a complete solution for access control, consisting of an external unit with 2 MP camera and an internal 7" capacitive touchscreen monitor with 1024×600 resolution. It supports Wi-Fi , PoE , two-way audio , H.265/H.264 video and remote management via DMSS App , allowing door opening with IC card , internal monitor or smartphone. Thanks to the IP65 certification, IR night vision , 120 dB WDR and ONVIF compatibility, it guarantees secure communications and high-quality images in any condition. Dahua

Technical Data Sheet

Artikel-Nr.: KTW04

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


KTW04 | DAHUA VIDEO INTERCOM KIT - IP & WIFI


Dahua

The Dahua KTW04 IP & Wi-Fi video intercom kit offers a complete solution for access control, integrating an external unit with a 2 MP CMOS camera and a 7" capacitive touchscreen internal monitor with 1024×600 resolution. It supports Wi-Fi , PoE , two-way audio , H.265/H.264 video and remote management via DMSS App , allowing the door to be opened via IC card , monitor or smartphone. IR night vision , 120 dB WDR , IP65 certification and ONVIF compatibility ensure quality images and reliable communications in all conditions, making it ideal for villas and modern homes.

Main specifications:

  • Kit: IP & Wi-Fi Video Intercom
  • Camera: 2 MP CMOS with IR
  • Monitor: 7" capacitive touchscreen
  • Display resolution: 1024×600
  • Connectivity: Wi-Fi and PoE
  • Video Compression: H.265 / H.264
  • Audio: Two-way
  • Unlocking: IC Card, App and Monitor
  • Protection: IP65
  • Compatibility: ONVIF
  • Management: DMSS App
  • Card capacity: 10,000 users

Further details

  • Outdoor WiFi Wireless Station
  • WiFi protocol IEEE802.11b/802.11g/802.11n
  • Built-in camera with 1/2.8" 2Mp CMOS sensor
  • IC card reader for door opening
  • Day/Night (IR CUT FILTER)
  • Door Control (1 RS485, 1 Exit Button)
  • 1 Tamper Switch
  • IP65 protection
  • 7-inch capacitive touchscreen monitor
  • 7" capacitive touchscreen color display (1024x600 pixel resolution)
  • Alarm: 6 inputs + 1 output
  • Two-Way Audio: Microphone + Speaker
  • Alarm integration (6 inputs and 1 output)
  • 100M Ethernet

Technical data sheet

Model KTW04
Technical Specification
Model VTO2211G-WP-S2
System
Main Processor Embedded Processor
Operating System Embedded Linux OS
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
Basic
Room 1/2.8" 2 MP CMOS high definition, low illumination/WDR/color/IR
Field of View H: 125°; V: 71°; D: 142°
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.264; H.265
Video Resolution Main stream: 720p, WVGA, D1, CIF
Sub stream: 1080p, WVGA, D1, QVGA, CIF
Video Frame Rate PAL: 25 fps;
NTSC: 30 fps
Video Bit Rate 256 Kbps–8 Mbps
Light Compensation Auto IR
Day/Night Auto(ICR)/Color/B/W;Color/B/W
Audio Compression G.711a; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 bit
Function
Communication Mode Full digital
Unlock Mode Card; app; indoor monitor
Card Type IC card
Auto Snapshot Yes
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
Wi-Fi Yes
Standard Wi-Fi IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.4 GHz
Max Transmission Power ≤[email protected]
Storage Supports Micro SD card (up to 256 GB)
Web Configuration Yes
Performance
Card Reading Distance 0 cm–4.3 cm (0"–1.69")
Issue Card Locally Yes
Casing Material PC + Acrylic
Capacity
Card Capacity 10000
Port
RS-485 1
Alarm Input 1
Alarm Output 1
Power Output 1 port, 12 V and 200 mA
Exit Button 1
Door Status Detection 1
Lock Control 1 port, normally closed by default
Network Port 1 × 10M/100M network port
Alarm
Tamper Alarm Yes
General
Appearance Color Black plate and silvery frames
Power Supply 12 VDC, 1 A
PoE Standard
Power Adapter Optional
Installation Surface Mount
Certifications THERE IS
Accessory Included: Alarm power ribbon cable, brackets
Product Dimensions IP65 (silicone sealant is needed, see the quick start guide)
Operating Temperature –30 °C to +60 °C (–22 °F to +140°F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Altitude Beneath 3,000 m (9842.52 ft)
Operating Environment Outdoor
Power Consumption ≤ 1 W (standby), ≤ 7 W (working)
Gross Weight 510 g (1.12 lb)
Anti-corrosion Level Basic Protection
Technical Specification
Model VTH2621G-WP
System
Main Processor Embedded Processor
Operating System Embedded Linux OS
Interoperability ONVIF
Network Protocol RTSP; DNS; RTP; SIP; SSH
Basic
Screen Type Capacitive Touchscreen
Display Screen 7" TFT
Screen Resolution 1024 (H) × 600 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression
Audio Bit Rate 16 KHz; 16 bit
Function
Communication Mode Full digital
Information Release Receive and view text information released by the management center
DND Mode Do not disturb period can be set;Do not disturb mode can be set
Number of Extensions Villa: 9
Apartment: 4
Wi-Fi intercom: 1 main monitor, 2 extension monitors
Wi-Fi Yes
Standard Wi-Fi IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.4 GHz
Max Transmission Power ≤[email protected]
Storage Micro SD Card, Max 64 GB (reserved for software)
Port
Alarm Input 6
Alarm Output 1
Door Bell Yes (use any alarm input port)
Network Port 1 × RJ-45, 10/100 Mbps self-adaptive port
Performance
Casing Material PC + ABS
General
Appearance Color Black
Power Supply 12 VDC, 1 A
PoE Standard
Power Adapter Optional
Installation Surface Mount
Certifications CE; FCC
Accessory Bracket (included)
Alarm ribbon cable (included)
Product Dimensions 189.6 mm × 134.6 mm × 26.0 mm (7.46" × 5.30" × 1.02")
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Beneath 3,000 m (9,842.52 ft)
Power Consumption ≤ 2W (standby); ≤ 6W (working)
Gross Weightl 575 g (1.27 lb)
Anti-corrosion Level Basic Protection
