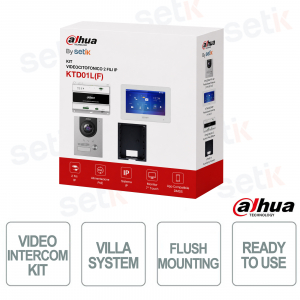

KTD01LF Dahua Kit Videocitofonia IP Completo - Da incasso: 1x postazione esterna 2 fili Onvif PoE VTO2202F-P-S2, + 1x Scatola da incasso VTM114 , 1x Postazione interna dahua monitor 7" VTH5422HW, + 1x Switch rete Bifilare VTNS1001B-2 . Dahua Security KTD01LF
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
KIT DI SORVEGLIANZA VIDEOCITOFONIA IP DAHUA VILLA - COMPLETO - DA INCASSO - KTD01LF

|
COSA INCLUDE QUESTO KIT? |
Dettagli prodotto
|
Postazione esterna Onvif e PoE con telecamera 2MP 160° - Antivandalo Dahua VTO2202F-P-S2
|
1x Postazione esterna IP e 2 Fili - VTO2202F-P > Telecamera 2MP CMOS
|
1X Scatola da incasso per VTO2202F-P-S2 - VTM114![]() |
1x Scatola per VTO220F-P-S2 VTM114 + Box per montaggio ad incasso - VTM114 |
VTH5422HW![]() |
1x Postazione interna IP bifilare bianca con display 7" - Audio/Allarme - PoE - VTH5422HW > Touch screen capacitivo TFT 7"> 6 ingressi e 1 uscita allarme > Alimentazione anche tramite PoE standard > Compressione video H.265 e H.264 > Comunicazione digitale bifilare > Alimentazione anche tramite switch bifilare > Chiamata con un tocco > Supporto topologia daisy chain > Vetro protettivo 2.5D |
|
1x Switch per videocitofonia bifilare dahua
|
1x Switch per videocitofonia bifilare - VTNS1001B-2 > Connessione fino a 20 monitor interni e 2 posti esterni |
Scheda tecnica
| Model | VTO2202F-P-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Interoperability | ONVIF®; CGI |
| Network Protocol | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Camera | 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera |
| Field of View | Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° |
| Focal Length | 1.9 mm |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265 |
| Video Resolution | 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 4 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR) |
| Audio Compression | G.711u |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way voice communication |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Status Indicator Light | 3 |
| Port | |
| Electric Lock | 1 |
| Alarm Output | 1 |
| Power Output | 1-ch 12 VDC 100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | One RJ45 10M/100M network port |
| General | |
| Appearance color | Silver |
| Power Supply | Dahua 2-wire switch (max. power supply distance 50 m) DC 48V 1A Standard PoE |
| Power Adapter | Optional |
| Installation | Flush/surface mount |
| Certifications | CE; FCC; UL |
| Accessory | Flush/surface mount |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity | 10%–90% (RH, non-condensing) |
| Operating Altitude | 0 m–3000 m |
| Power Consumption | ≤ 12W |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.4 kg (0.88 lb) |
Ulteriori dettagli
