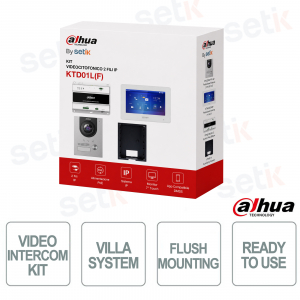

DAHUA VILLA IP VIDEO DOOR ENTRY SURVEILLANCE KIT - COMPLETE - FLUSH MOUNTING - KTD01LF

|
WHAT DOES THIS KIT INCLUDE? |
Product details
|
Onvif and PoE external station with 2MP 160 ° camera - Dahua VTO2202F-P-S2 vandal resistant
|
1x IP and 2-wire outdoor station - VTO2202F-P > 2MP CMOS camera |
1X Back box for VTO2202F-P-S2 - VTM114 ![]() |
1x Box for VTO220F-P-S2 VTM114 + Box for flush mounting - VTM114 |
VTH5422HW ![]() |
1x White two-wire IP indoor station with 7" display - Audio/Alarm - PoE - VTH5422HW > TFT 7" capacitive touch screen> 6 inputs and 1 alarm output > Power supply also via standard PoE > H.265 and H.264 video compression > Two-wire digital communication > Power supply also via two-wire switch > One tap call > Daisy chain topology support > 2.5D protective glass |
|
1x Dahua two-wire video door phone switch
|
1x Two-wire video intercom switch - VTNS1001B-2 > Connection of up to 20 indoor monitors and 2 outdoor stations |
Data sheet
| model | VTO2202F-P-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| ButtonType | Mechanical |
| Interoperability | ONVIF®; CGI |
| NetworkProtocol | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Room | 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera |
| Field of View | Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° |
| Focal Length | 1.9mm |
| wdr extension | 120dB |
| Noise reduction | 3D NO |
| Video compression | H.265 |
| Video Resolution | 50Hz: Main Stream (720P@25fps), sub stream (1080P@25fps) 60Hz: Main Stream (720P@30fps), sub stream (1080P@30fps) |
| Video Frame Rate | 25fps |
| Video Bit Rate | 256Kbps to 4Mbps |
| Light Compensation | Auto IR |
| Day/Night | Car (ICR) |
| Audio Compression | G.711u |
| Audio inputs | 1 channel |
| Audio Outputs | Built-in speaker |
| Sound Mode | 2-way voice communication |
| Audio Enhancements | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Status Indicator Light | 3 |
| Port | |
| Electric Lock | 1 |
| Alarm Output | 1 |
| Power Output | 1-ch 12VDC 100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | One RJ45 10M/100M network port |
| General | |
| Appearance colour | Silver |
| Power Supply | Dahua 2-wire switch (max. power supply distance 50m) DC 48V 1A Standard PoE |
| Power Adapters | Options |
| Installation | Flush/surface mount |
| Certifications | THERE IS; FCC; ul |
| accessory | Flush/surface mount |
| Product Dimensions | 130mm × 96mm × 28.5mm (5.12" × 3.78" × 1.12") |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity | 10%–90% (RH, noncondensing) |
| Operating Altitude | 0m–3000m |
| power consumption | ≤ 12W |
| Net Weight | 0.35kg (0.77lb) |
| Gross Weight | 0.4kg (0.88lb) |
