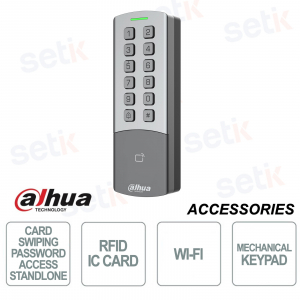

ASI1201M-MEW-BB | TERMINALE CONTROLLO ACCESSI CON RFID - WI-FI -IP65

Il terminale Dahua ASI1201M-MEW-BB è una soluzione standalone per il controllo accessi, ideale per ambienti residenziali e commerciali. Supporta fino a 10.000 utenti, carte e password, con memoria per 100.000 eventi. Offre accesso tramite RFID, password e verifica remota, ed è dotato di connettività TCP/IP, Wi-Fi, RS-485 e Wiegand. La configurazione è semplice tramite interfaccia web, ed è compatibile con SmartPSS Lite, DSS PRO e DMSS. Dispone di allarmi integrati per coazione, manomissione e intrusioni. Il design compatto è certificato IP65 e IK08, perfetto anche per installazioni esterne. Funziona con alimentazione 12V DC e garantisce prestazioni sicure, affidabili e scalabili.
Ulteriori dettagli
✅ Sicurezza avanzata: Include allarmi per coazione, manomissione, intrusione, timeout di sblocco e uso eccessivo di carte non autorizzate.
✅ Configurazione semplice: Interfaccia web accessibile da PC e dispositivi mobili per una gestione intuitiva.
✅ Design resistente: Certificato IP65 e IK08, adatto per installazioni in ambienti esterni e soggetti a vandalismo.
Scheda tecnica
MODEL | ASI1201M-MEW-BB |
System | |
Main Processor | Embedded Processor |
Button Type | Mechanical |
Network Protocol | IPv4;UDP;P2P;IPv6;TCP |
OSDP Protocol | Yes |
Interoperability | ONVIF;CGI |
SDK and API | Yes |
Basic | |
Product Type | Standalone |
Buzzer | Yes |
Backlight | Yes |
Casing Material | PC and zinc alloy |
Function | |
Verification Method | Card;Password;Remote |
Period List | 128 periods |
Holiday Period | 128 periods |
Network Update | Yes |
First User Unlock | Yes |
Remote Verification | Yes |
Restricted List/Trusted List | Yes |
Peripheral Card Reader | Includes the 1-channel RS-485 card reader and 1-channel Wiegand card reader. You can easily switch between the two with just the flip of the switch. |
Issuing Card by Master Card | Yes |
Multi-user Authentication | Yes |
Real-time Monitoring | Yes |
Multi-factor Authentication | Yes |
Web Configuration | Yes |
Auto Registration | Yes |
RFID | |
Card Type | ID card;M1 Card;Desfire Card (EV3,Compatible with Dahua card by default) |
Modulation Type | AM |
Frequency Range | 13.56 MHz and 125 kHz |
Max. Transmission Power | 125 kHz: 66 dBuA/m@10 m 13.56 MHz: 42 dBuA/m@10 m |
Network | |
Wi-Fi | Yes |
Wireless Standard | IEEE 802.11b, 802.11g and 802.11n |
Wireless Frequency Range | 2,400–2,483.5 MHz |
Max. Transmission Power | ≤20 dBm@2,400–2,483.5 MHz |
Wireless Security Encryption | WPA/WPA2 and WPA-PSK/WPA2-PSK |
Performance | |
IC Card Encryption | Yes |
Card Reading Distance | 0 mm–30 mm (0"–1.18" |
User | |
User (Card) Type | Normal, VIP, patrol, guest, blocklist, and other users, custom user 1 and custom user 2 |
Capacity | |
User Capacity | 10,000 |
Card Capacity | 10,000 |
Password Capacity | 10,000 |
ecord Capacity | 100,000 |
Port | |
RS-485 | 1 port that can also be used by the Wiegand card reader |
Wiegand | 1 port that can also be used by the RS-485 card reader. (Wiegand input is 26, 34 or 66 bits self-adaptive. Wiegand output is 34 bits by default, and can be configured to 26 or 66 bits.) |
Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
Alarm Input | 2 channels |
Alarm Output | 1 channel that can also be used by the doorbell output |
Alarm Linkage | Yes |
Doorbell | 1 channel that can also be used by the alarm output |
Exit Button | 1 channel |
Door Status Detection | 1 channel |
Lock Control | 1 channel |
Power Output Port | 1 channel (12 V, 0.5 A) |
Alarm | |
Anti-pass Back | Yes |
Tamper Alarm | Yes |
Duress Alarm | Yes |
Door Sensor Timeout | Yes |
Intrusion | Yes |
Illegal Card Exceeding Threshold | Yes |
General | |
Power Adapter | Optional |
Power Supply | 12 VDC, 1.5 A |
Protection | IP65 IK08 |
Power Consumption | ≤18 W |
Product Dimensions | 169.0 mm × 57.5 mm × 33.3 mm (6.65" × 2.26" × 1.31") (H× W × D) |
Packaging Dimensions | 219 mm × 111 mm × 98 mm (8.62" × 4.37" × 3.86") (H× W × D) |
Transport Package Dimensions | 585 mm × 470 mm × 320 mm (23.03" × 18.50" × 12.60") (H× W × D) |
Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity | 5%–95% (RH), non-condensing |
Operating Environment | Outdoor |
Gross Weight | 0.65 kg (1.43 lb) |
Accessory | The bracket of wall mount is included. |
Installation | Wall Mount |
Certifications | CE |
Storage Temperature | –20 °C to +70 °C (–4 °F to + 158 °F) |
Storage Humidity | 30%–75% (RH), non-condensing |
