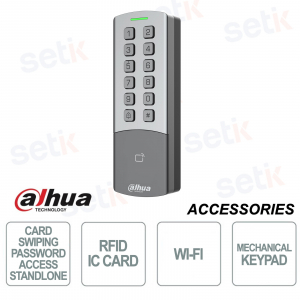

ASI1201M-MEW-BB | ACCESS CONTROL TERMINAL WITH RFID - WI-FI -IP65


Dahua

Dahua ASI1201M-MEW-BB is a standalone access control solution for residential and commercial applications. It supports up to 10,000 users, cards and passwords, with 100,000 event memory. It offers RFID access, password and remote verification, and is equipped with TCP/IP, Wi-Fi, RS-485 and Wiegand connectivity. Configuration is easy via web interface, and it is compatible with SmartPSS Lite, DSS PRO and DMSS. It has built-in alarms for duress, tampering and intrusion. The compact design is IP65 and IK08 certified, also perfect for outdoor installations. It operates with 12V DC power supply and guarantees safe, reliable and scalable performance.

Further details


READ OUR ARTICLE ABOUT DAHUA SOLUTIONS FOR STRUCTURING A B&B - READ THE ARTICLE!!


User capacity: Supports up to 10,000 users, 10,000 passwords, 10,000 cards, and stores up to 100,000 events.
Verification Methods: Allows access via RFID card (ID, M1, Desfire EV3), password or remote verification.
Connectivity: Equipped with RS-485 and Wiegand ports, it supports TCP/IP and Wi-Fi connections, with IPv4/IPv6, UDP, P2P and DHCP protocols.

Advanced Security: Includes alarms for coercion, tampering, intrusion, unlock timeout and excessive use of unauthorized cards.

Easy setup: Web interface accessible from PC and mobile devices for intuitive management.
Compatibility: Integrates with platforms such as SmartPSS Lite, DSS PRO and DMSS for centralized management.

Durable Design: IP65 and IK08 certified, suitable for outdoor and vandalism installations.

Power supply: Works with 12 VDC, 1.5 A power supply, with maximum consumption of 18 W.

Technical data sheet

MODEL ASI1201M-MEW-BB
System
Main Processor Embedded Processor
Button Type Mechanical
Network Protocol IPv4;UDP;P2P;IPv6;TCP
OSDP Protocol Yes
Interoperability ONVIF;CGI
SDK and API Yes
Basic
Product Type Standalone
Buzzer Yes
Backlight Yes
Casing Material PC and zinc alloy
Function
Verification Method Card;Password;Remote
Period List 128 periods
Holiday Period 128 periods
Network Update Yes
First User Unlock Yes
Remote Verification Yes
Restricted List/Trusted List Yes
Peripheral Card Reader Includes the 1-channel RS-485 card reader and 1-channel Wiegand card reader. You can easily switch between the two with just the flip of the switch.
Issuing Card by Master Card Yes
Multi-User Authentication Yes
Real-time Monitoring Yes
Multi-factor Authentication Yes
WebConfiguration Yes
Auto Registration Yes
RFID
Card Type ID card;M1 Card;Desfire Card (EV3,Compatible with Dahua card by default)
Modulation Type AM
Frequency Range 13.56MHz and 125kHz
Max. Transmission Power 125kHz: 66dBuA/m@10m
13.56 MHz: 42 dBuA/m@10 m
Network
Wi-Fi Yes
Wireless Standard IEEE 802.11b, 802.11g and 802.11n
Wireless Frequency Range 2,400–2,483.5 MHz
Max. Transmission Power ≤20 dBm@2,400–2,483.5 MHz
Wireless Security Encryption WPA/WPA2 and WPA-PSK/WPA2-PSK
Performance
IC Card Encryption Yes
Card Reading Distance 0mm–30mm (0"–1.18"
User
User (Card) Type Normal, VIP, patrol, guest, blocklist, and other users, custom user 1 and custom user 2
Capacity
User Capacity 10,000
Card Capacity 10,000
Password Capacity 10,000
eRecord Capacity 100,000
Port
RS-485 1 port that can also be used by the Wiegand card reader
Wiegand 1 port that can also be used by the RS-485 card reader. (Wiegand input is 26, 34 or 66 bits self-adaptive. Wiegand output is 34 bits by default, and can be configured to 26 or 66 bits.)
Network Port 1 × RJ-45 10/100Mbps self-adaptive Ethernet port
Alarm Input 2 channels
AlarmOutput 1 channel that can also be used by the doorbell output
Alarm Linkage Yes
Doorbell 1 channel that can also be used by the alarm output
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel
Power Output Port 1 channel (12V, 0.5A)
Alarm
Anti-pass Back Yes
Tamper Alarm Yes
Duress Alarm Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
General
Power Adapter Optional
Power Supply 12VDC, 1.5A
Protection IP65
IK08
Power Consumption ≤18W
Product Dimensions 169.0 mm × 57.5 mm × 33.3 mm (6.65" × 2.26" × 1.31") (H× W × D)
Packaging Dimensions 219 mm × 111 mm × 98 mm (8.62" × 4.37" × 3.86") (H × W × D)
Transport Package Dimensions 585 mm × 470 mm × 320 mm (23.03" × 18.50" × 12.60") (H× W × D)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 5%–95% (RH), non-condensing
Operating Environment Outdoor
Gross Weight 0.65 kg (1.43 lb)
Accessories The bracket of wall mount is included.
Installation Wall Mount
Certifications THERE IS
Storage Temperature –20 °C to +70 °C (–4 °F to + 158 °F)
Storage Humidity 30%–75% (RH), non-condensing
