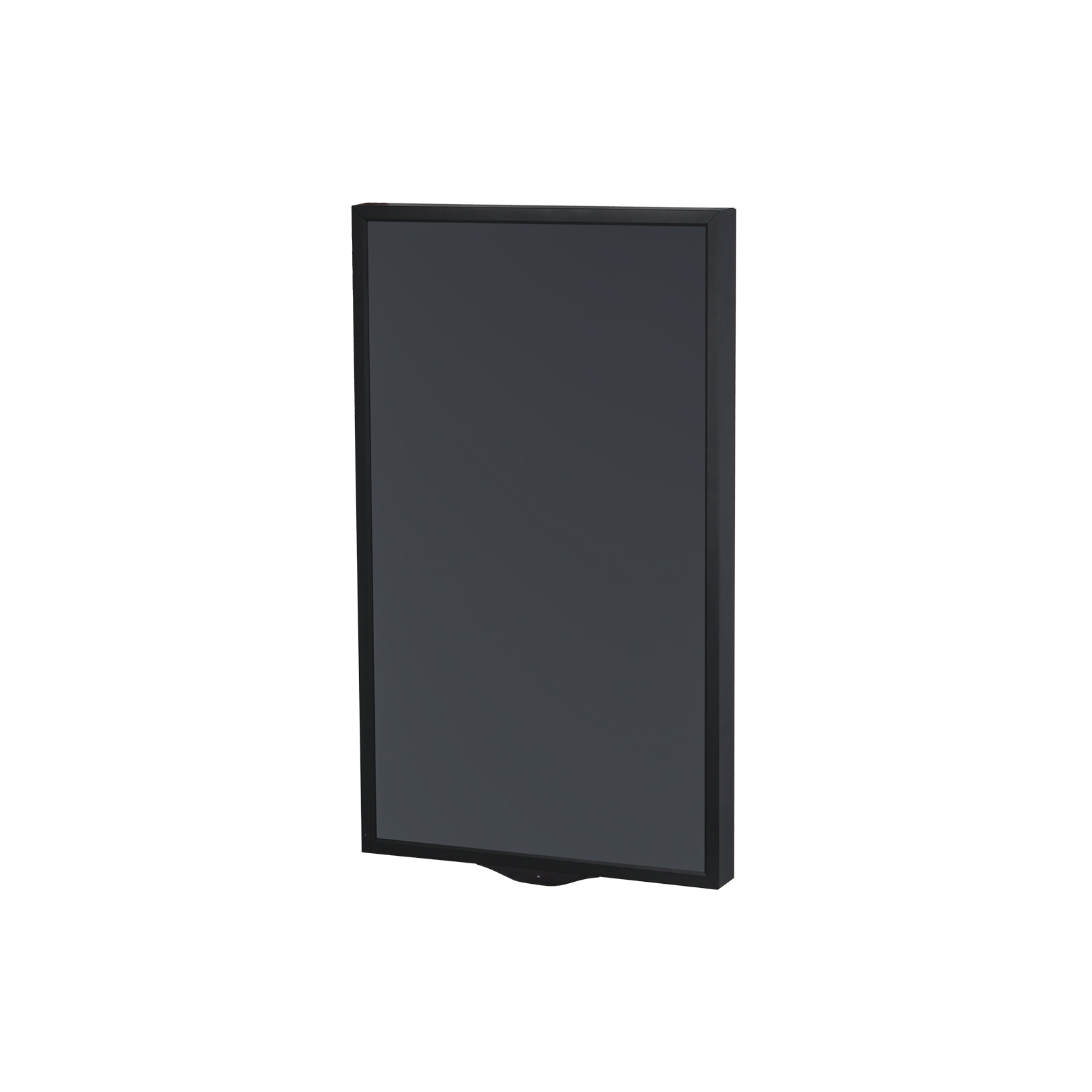

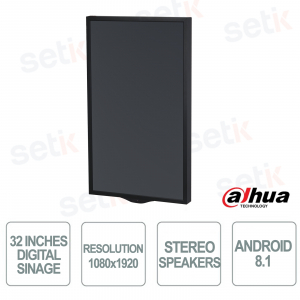

DIGITAL SIGNAGE - CARTELLONE INDUSTRIALE 24/7 - LCD - 32 POLLICI - VERTICALE - ANDROID 8.1 - DAHUA - LDH32-WAI200K
CARATTERISTICHE PRINCIPALI:
- Cartellone industriale digitale - Dahua - LDH32-WAI200K
- Retroilluminazione LCD
- 24/7
- Display integrato da 32 Pollici
- Risoluzione 1080 × 1920
- Formato 9:16
- Colore 8 bit, 16.7 Milioni di colori
- Contrasto 1.200:1
- Luminosità: 2500 cd/m²
- Tempo di risposta: 6ms
- Idoneo all'uso verticale
- Angolo di visione: 178/178°
- RAM 2 GB
- ROM 16 GB
- Sistema operativo Android 8.1
- Speaker integrati 2x5W Stereo
- Ingressi: RJ45 ×1, USB ×2, TF card Slot ×1, HDMI ×1, 3.5mm Audio In×1
- Staffa per montaggio, cavo di alimentazione e telecomando
- Alimentazione: AC100-240V, 50/60Hz
- Unità di alimentazione: interna
- Temperatura di funzionamento: 0 °C to +40 °C
- Umidità relativa: 10%~85%
- Dimensioni: 433 mm × 739 mm × 85.5 mm
- Peso netto: 19Kg
Scheda tecnica
Model | LDH32-WAI200K |
LCD Panel | |
Panel Dimensions | 32 inch |
Backlight | DLED |
LCD Technology | IPS |
Aspect Ratio | 9: 16 |
Brightness | 2500 cd/m² (typ.) |
Contrast | IPS 1200:1(typ.) |
Display Colors | 8 bit, 16.7M colors |
Resolution | 1080 (H) × 1920 (V) |
Viewing Angle | 178° (H); 178° (V) |
Response Time | 6 ms (typ.) |
Surface Treatment | Haze 1% |
Built-in System | |
Operating System | Android 8.1 |
CPU | 4 cores A17, 1.6 GHZ |
RAM | 2 GB |
ROM | 16 GB |
Video Decoding | 2-ch H.264 1080p@25 fps; 4-ch H.265 1080p@25 fps; 4-ch H.265 1080p@30 fps; 2-ch H.264 1080p@25 fps; 2-ch H.265 1080p@30 fps; The decoding capacity statistics are based on tests with a single video file. |
Function | |
Audio Compression | MPEG-3,WMA,WAV |
Video Compression | MPEG-4, H.264 AVC/MVC, H.265 HEVC |
Video Format | mp4, avi, mov, mkv, wmv |
Device Ports | |
Network Port | 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet port |
Wi-Fi | Optional (External Wi-Fi module) |
Bluetooth | No |
Data Transmission Ports | 2 × USB 2.0 ports (type A) 1 × TF card slot, up to 128 GB |
Video Input | 1 × HDMI 1.4 (1080P @60Hz) |
Video Output | No |
Audio Port | 1 × 3.5 mm jack Mic |
IR Receiver | Yes |
Speaker | |
Built-in Speaker | 2 × 5 W |
General | |
Power Supply | 100–240 VAC, 50/60 Hz |
Power Consumption | ≤125 W |
Standby Power Consumption | ≤0.5 W |
Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Storage Temperature | –20 °C to +60 °C (-4 °F to +140 °F) |
Operating Humidity | 10%–85% (RH), non-condensing |
Storage Humidity | 10%-90% (RH) |
Product Material | Metal casing |
Casing Color (Frame/Rear) | Black |

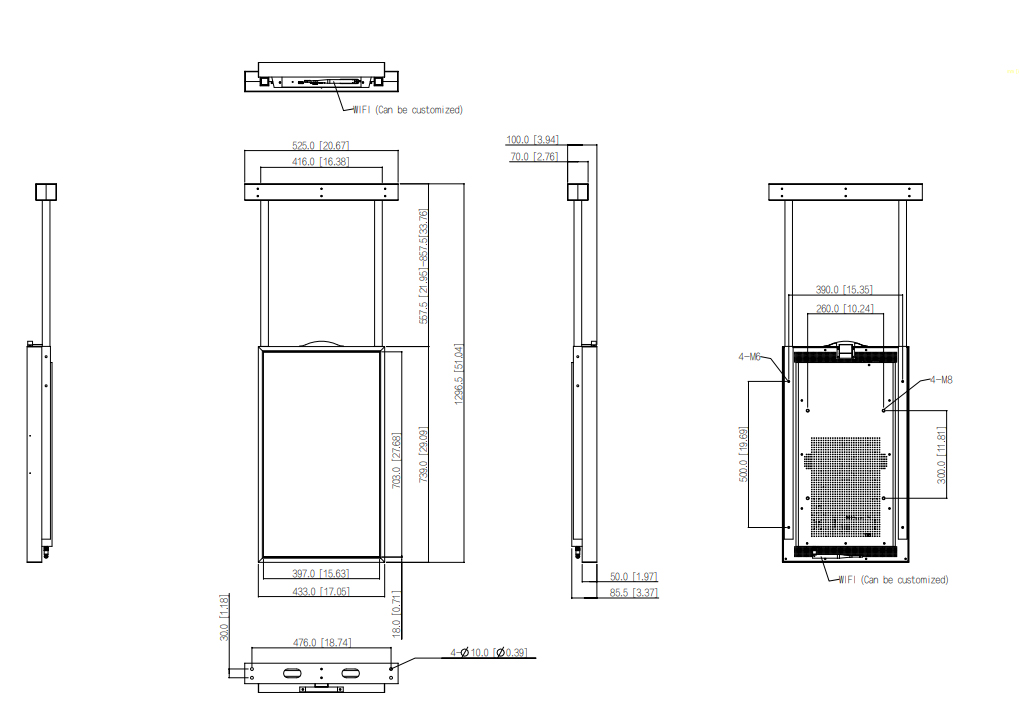

Product Dimensions | 433 mm × 739 mm × 85.5 mm (17.05" × 29.09" × 3.37”) (without wall mount bracket) |
Packaging Dimensions | 1,070 mm × 670 mm × 236 mm (42.13" × 26.38" × 9.29") |
Net Weight | 19 kg (41.88 lb) |
Gross Weight | 22 kg (48.50 lb) |
Installation | Installation |
Display Mode | Portrait |
Wall-mounting Hole Position | 300mm × 260mm |
Accessory | Ceiling mount bracket, power cord, legal and regulatory information, remote control, screw |
Certification | |
Certification | CE; ERP |
