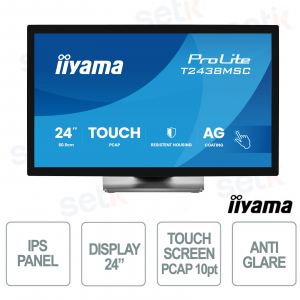

Il monitor touch iiyama ProLite T2438MSC-B2 da 24" Full HD è progettato per applicazioni professionali e ambienti interattivi che richiedono precisione, affidabilità e qualità visiva. Il pannello IPS con risoluzione 1920×1080 garantisce colori vivaci, immagini nitide e ampi angoli di visione, rendendolo ideale per retail, chioschi informativi e sistemi POS. La tecnologia touch Projected Capacitive (PCAP) a 10 punti assicura un’interazione multitouch fluida e altamente reattiva. Il vetro frontale edge-to-edge resistente ai graffi migliora la visibilità e offre una superficie elegante e facile da pulire. Grazie alla struttura robusta con supporto regolabile e compatibilità VESA, il monitor si adatta facilmente a diverse installazioni. La connettività completa con HDMI, DisplayPort e USB garantisce un’integrazione semplice in qualsiasi ambiente professionale.
T2438MSC-B2 – MONITOR IPS 24" FULL HD IIYAMA PROLITE - TOUCSCREEN PCAP+ 10PT - UTILIZZO VERSATILE - ANTIGLARE
Il monitor touch iiyama ProLite T2438MSC-B2 da 24" Full HD è progettato per ambienti professionali, retail e applicazioni interattive che richiedono precisione, affidabilità e qualità visiva. Il pannello IPS con risoluzione 1920×1080 garantisce colori vivaci, immagini nitide e ampi angoli di visione, ideali per chioschi informativi e sistemi POS. La tecnologia touch Projected Capacitive (PCAP) a 10 punti assicura un’interazione multitouch fluida e precisa. Il vetro frontale edge-to-edge resistente ai graffi migliora la visibilità e facilita la pulizia dello schermo. Grazie al supporto regolabile e alla compatibilità VESA, il monitor si adatta facilmente a diverse installazioni professionali. La connettività completa con HDMI, DisplayPort e USB consente un’integrazione semplice in qualsiasi ambiente operativo.
Caratteristiche principali:
- Schermo 24" con risoluzione Full HD 1920×1080
- Pannello IPS con colori accurati e ampi angoli di visione
- Tecnologia touch Projected Capacitive (PCAP) a 10 punti
- Vetro Edge-to-Edge con trattamento anti-glare
- Supporto regolabile e compatibilità VESA
- Connettività HDMI, DisplayPort e USB
Ulteriori dettagli
Scheda tecnica
| Model | T2438MSC-B2 |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 23.8", 60.5cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 600 cd/m² |
| Brightness | 525 cd/m² with touch |
| Light transmittance | 87% |
| Static contrast | 1300:1 with touch |
| Response time MPRT) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln 8bit |
| Horizontal Sync | 30 - 138kHz |
| Viewable area W x H | 527 x 296.5mm |
| Bezel width (sides, top, bottom) | 17.25mm, 20.3mm, 20.3mm |
| Pixel pitch | 0.275mm |
| Colour | black, matte |
| TOUCH | |
| Touch technology | DeepContrast-PCAP+ |
| Touch points | 10 (HID, only with supported OS) |
| Touch accuracy | +- 2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal input |
HDMI x1 |
| Audio output |
Mini jack x1 |
| USB HUB | x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA)) |
| HDCP | Yes |
| FEATURES | |
| Extra | DeepContrast PCAP+, metal housing, anti fingerprint coating, waterproof Touch function |
| Kiosk mode | Yes |
| Glass thickness | 3.6mm |
| Glass hardness | 7H |
| 60950 Ball drop test | Yes |
| Water and dust protection | IP1X (front) |
| Housing (bezel) | metal |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Blue light reducer |
Yes |
| Flicker free | Yes |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| Fanless design | Yes |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.5m), HDMI (1.5m) |
| Other | quick start guide, safety guide |
| Other | Screwdriver |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 22W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 562 x 366 x 240mm |
| Box dimensions W x H x D | 650 x 430 x 150mm |
| Weight (without box) | 8kg |
| Weight (with box) | 10kg |
