The iiyama ProLite T2438MSC-B2 24" Full HD touch monitor is designed for professional applications and interactive environments that require precision, reliability and visual quality. The IPS panel with 1920x1080 resolution ensures vivid colors, sharp images and wide viewing angles , making it ideal for retail, information kiosks and POS systems. 10-point Projected Capacitive Touch (PCAP) technology ensures smooth and highly responsive multitouch interaction. The scratch-resistant edge-to-edge front glass improves visibility and offers a stylish, easy-to-clean surface. Thanks to the robust construction with an adjustable stand and VESA compatibility , the monitor easily adapts to various installations. Full connectivity with HDMI, DisplayPort and USB ensures simple integration into any professional environment.

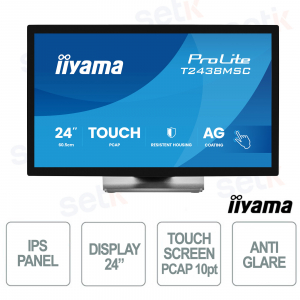

T2438MSC-B2 – IIYAMA PROLITE 24" FULL HD IPS MONITOR - PCAP+ 10PT TOUCHSCREEN - VERSATILE USE - ANTIGLARE
The iiyama ProLite T2438MSC-B2 24" Full HD touch monitor is designed for professional, retail and interactive applications that require precision, reliability and visual quality. The IPS panel with 1920x1080 resolution guarantees vivid colors, sharp images and wide viewing angles , ideal for information kiosks and POS systems. 10-point Projected Capacitive Touch (PCAP) technology ensures smooth and precise multitouch interaction. The scratch-resistant edge-to-edge front glass improves visibility and makes cleaning the screen easier. Thanks to the adjustable stand and VESA compatibility , the monitor easily adapts to various professional installations. Full connectivity with HDMI, DisplayPort and USB allows for simple integration into any operating environment.
Main features:
- 24" screen with Full HD 1920×1080 resolution
- IPS panel with accurate colors and wide viewing angles
- 10-point Projected Capacitive (PCAP) touch technology
- Edge-to-Edge glass with anti-glare treatment
- Adjustable stand and VESA compatibility
- HDMI, DisplayPort and USB connectivity
Further details
Technical data sheet
| Model | T2438MSC-B2 |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 23.8", 60.5cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 600 cd/m² |
| Brightness | 525 cd/m² with touch |
| Light transmittance | 87% |
| Static contrast | 1300:1 with touch |
| Response time (MPRT) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 16.7 million 8-bit |
| Horizontal Sync | 30 - 138kHz |
| Viewable area W x H | 527 x 296.5mm |
| Bezel width (sides, top, bottom) | 17.25mm, 20.3mm, 20.3mm |
| Pixel pitch | 0.275mm |
| Color | black, matte |
| TOUCH | |
| Touch technology | DeepContrast-PCAP+ |
| Touch points | 10 (HID, only with supported OS) |
| Touch accuracy | +- 2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal input |
HDMI x1 |
| Audio output |
Mini jack x1 |
| USB HUB | x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA)) |
| HDCP | Yes |
| FEATURES | |
| Extra | DeepContrast PCAP+, metal housing, anti fingerprint coating, waterproof Touch function |
| Kiosk mode | Yes |
| Glass thickness | 3.6mm |
| Glass hardness | 7H |
| 60950 Ball drop test | Yes |
| Water and dust protection | IP1X (front) |
| Housing (bezel) | metal |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, |
| Blue light reducer |
Yes |
| Flicker free | Yes |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| Fanless design | Yes |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.5m), HDMI (1.5m) |
| Other | quick start guide, safety guide |
| Other | Screwdriver |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 22W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) | AND |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 562 x 366 x 240mm |
| Box dimensions W x H x D | 650 x 430 x 150mm |
| Weight (without box) | 8kg |
| Weight (with box) | 10kg |
