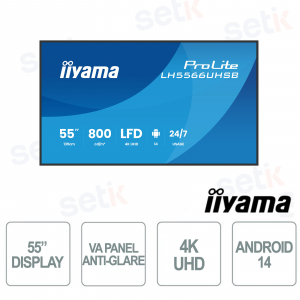

Il iiyama ProLite LH5566UHSB-B1AG è un display professionale Digital Signage da 55" 4K UHD progettato per retail, aziende, hospitality e ristorazione, con pannello VA, luminosità di 800 cd/m² e contrasto 5000:1 per immagini definite e di forte impatto. Integra Android 14, iiSignage², iiControl e iiShare per una gestione semplice, remota e sicura dei contenuti. La connettività Wi-Fi 5 dual band, LAN, HDMI 2.0 e USB-C garantisce elevata versatilità, mentre il funzionamento continuo 24/7 assicura affidabilità nelle installazioni professionali. La funzione Signal FailOver mantiene i contenuti sempre attivi passando automaticamente a una sorgente disponibile, mentre l’orientamento Landscape/Portrait consente installazioni flessibili. Completano la dotazione altoparlanti 2 x 10 W, design fanless, protezione frontale IP5X e supporto VESA 400 x 400 mm.
Riferimento: LH5566UHSB-B1AG
Marca: IIYAMA
EAN: 4948570128228
Disponibilità: 2
LH5566UHSB-B1AG – MONITOR VA ANTI-GLARE 55" IIYAMA PROLITE - IISIGNAGE - ANDROID OS
Il iiyama ProLite LH5566UHSB-B1AG è un display professionale Digital Signage da 55" con risoluzione 4K UHD, progettato per garantire una comunicazione visiva efficace in retail, aziende, hospitality e ristorazione. Il pannello VA con luminosità di 800 cd/m², contrasto 5000:1 e trattamento antiriflesso assicura immagini nitide e ben visibili. Integra Android 14, iiSignage², iiControl e iiShare per una gestione semplice, remota e sicura dei contenuti. La connettività Wi-Fi 5 dual band, LAN, HDMI 2.0 e USB-C offre elevata flessibilità, mentre il funzionamento continuo 24/7 garantisce affidabilità professionale. Completano il display Signal FailOver, orientamento Landscape/Portrait, altoparlanti 2 x 10 W, design fanless e protezione frontale IP5X.
Caratteristiche principali:
- Display: 55" 4K UHD
- Luminosità: 800 cd/m²
- Pannello: VA
- Contrasto: 5000:1
- Sistema: Android 14
- CMS: iiSignage²
- Connettività: Wi-Fi 5, LAN, HDMI, USB-C
- Operatività: 24/7
- FailOver: cambio sorgente automatico
- Protezione: IP5X frontale
Ulteriori dettagli
Scheda tecnica
| Model | LH5566UHSB-B1AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 55", 138.7cm |
| Panel | VA, Anti-Glare coated glass, matte finish, haze 25% |
| Native resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect ratio | 16:9 |
| Panel Brightness | 800 cd/m² |
| Static contrast | 5000:1 |
| Response time (GTG) | 6.5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync | 57 - 62kHz |
| Viewable area W x H | 1209.6 x 680.4mm |
| Bezel width (sides, top, bottom) | 12.8mm, 12.8mm, 12.8mm |
| Pixel pitch | 0.315mm |
| Colour | matte, black |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal input |
HDMI x2 (v.2.0, max. 3840x2160 @60Hz) |
| Monitor control input | RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini) |
| Audio output | Mini jack x1 (3.5mm) Speakers 2 x 10W |
| Monitor control output | RS-232c x1 (2.5mm) IR loop through x1 (3.5mm) |
| HDCP | v.1.4 & 2.0 |
| USB ports | x2 (v.2.0) |
| FEATURES | |
| Integrated software | Android 14 OS, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager |
| WiFi | yes (Wifi 5 @ 2.4G/5G) |
| Hardware | SOC: MT9679, CPU: A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB |
| Extra | Wall mounting kit included (VESA 400x400mm) |
| Max. non-stop operating time | 24/7 |
| Anti image retention | Yes |
| Media playback | Yes |
| Water and dust protection | IPX5 (front) |
| Housing (bezel) | Plastic |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons | Power Indicator, Power button, Remote Sensor |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
| MECHANICAL | |
| Orientation | landscape, portrait |
| Fanless design | Yes |
| VESA mounting | 400 x 400mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 10°C - 60°C |
| MTBF | 50.000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.8m), HDMI (1.8m), Audio (1.8m), DP (1.8m) |
| Guides | quick start guide, safety guide |
| Other | Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Energy Star 8.0 (POn at 230V) | 92.7W |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 144W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS) |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead, Lead monoxide |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1238.5 x 709.2 x 70mm |
| Box dimensions W x H x D | 1390 x 144 x 830mm |
| Pallet volume | 12pcs |
| Pallet dimensions W x H x D | 1400 x 1162 x 1660mm |
| Weight (without box) | 13.09kg |
| Weight (with box) | 18.17kg |
