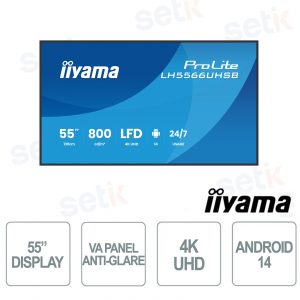

The iiyama ProLite LH5566UHSB-B1AG is a 55" 4K UHD professional digital signage display designed for retail, corporate, hospitality and food service, with a VA panel, 800 cd/m² brightness and 5000:1 contrast ratio for sharp, impactful images. It integrates Android 14 , iiSignage² , iiControl and iiShare for simple, remote and secure content management. Dual band Wi-Fi 5, LAN, HDMI 2.0 and USB-C connectivity ensure high versatility, while 24/7 continuous operation ensures reliability in professional installations. The Signal FailOver function keeps content always active by automatically switching to an available source, while Landscape/Portrait orientation allows for flexible installations. 2 x 10 W speakers , fanless design, IP5X front protection and 400 x 400 mm VESA support complete the package.
INSTALLATEUR FINDEN
LH5566UHSB-B1AG – MONITOR VA ANTI-GLARE 55" IIYAMA PROLITE - IISIGNAGE - ANDROID OS
The iiyama ProLite LH5566UHSB-B1AG is a 55" professional Digital Signage display with 4K UHD resolution , designed to ensure effective visual communication in retail, corporate, hospitality and catering. The VA panel with 800 cd/m² brightness , 5000:1 contrast and anti-reflection treatment ensures sharp and clearly visible images. It integrates Android 14 , iiSignage² , iiControl and iiShare for simple, remote and secure content management. Dual band Wi-Fi 5, LAN, HDMI 2.0 and USB-C connectivity offer high flexibility, while continuous 24/7 operation guarantees professional reliability. Signal FailOver , Landscape/Portrait orientation, 2 x 10 W speakers, fanless design and IP5X front protection complete the display.
Main features:
- Display: 55" 4K UHD
- Brightness: 800 cd/m²
- Panel: VA
- Contrast: 5000:1
- System: Android 14
- CMS: iiSignage²
- Connectivity: Wi-Fi 5, LAN, HDMI, USB-C
- Operation: 24/7
- FailOver: Automatic source switching
- Protection: IP5X front
Further details
Technical data sheet
| Model | LH5566UHSB-B1AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 55", 138.7cm |
| Panel | VA, Anti-Glare coated glass, matte finish, haze 25% |
| Native resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect ratio | 16:9 |
| Panel Brightness | 800 cd/m² |
| Static contrast | 5000:1 |
| Response time (GTG) | 6.5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Color support | 1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync | 57 - 62kHz |
| Viewable area W x H | 1209.6 x 680.4mm |
| Bezel width (sides, top, bottom) | 12.8mm, 12.8mm, 12.8mm |
| Pixel pitch | 0.315mm |
| Color | matte, black |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal input |
HDMI x2 (v.2.0, max. 3840x2160 @60Hz) |
| Monitor control input | RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini) |
| Audio output | Mini jack x1 (3.5mm) Speakers 2 x 10W |
| Monitor control output | RS-232c x1 (2.5mm) IR loop through x1 (3.5mm) |
| HDCP | v.1.4 & 2.0 |
| USB ports | x2 (v.2.0) |
| FEATURES | |
| Integrated software | Android 14 OS, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager |
| WiFi | yes (Wifi 5 @ 2.4G/5G) |
| Hardware | SOC: MT9679, CPU: A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB |
| Extra | Wall mounting kit included (VESA 400x400mm) |
| Max. non-stop operating time | 24/7 |
| Anti-image retention | Yes |
| Media playback | Yes |
| Water and dust protection | IPX5 (front) |
| Housing (bezel) | Plastic |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons | Power Indicator, Power button, Remote Sensor |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, color temp., color control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, OSD information), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
| MECHANICAL | |
| Orientation | landscape, portrait |
| Fanless design | Yes |
| VESA mounting | 400 x 400mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 10°C - 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.8m), HDMI (1.8m), Audio (1.8m), DP (1.8m) |
| Guides | quick start guide, safety guide |
| Other | Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Energy Star 8.0 (POn at 230V) | 92.7W |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 144W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS) |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead, Lead monoxide |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1238.5 x 709.2 x 70mm |
| Box dimensions W x H x D | 1390 x 144 x 830mm |
| Pallet volume | 12pcs |
| Pallet dimensions W x H x D | 1400 x 1162 x 1660mm |
| Weight (without box) | 13.09kg |
| Weight (with box) | 18.17kg |
