Il HS4412-8ET-120 di Dahua, è uno switch 12 porte Hardened di rete 8 Porte PoE + 4 SFP 1000 Mbps. Alimentazione IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt. Standard di comunicazione IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab. Watchdog PoE, trasmissioni fino a 250 metri-MAC Table Size 8K, PoE power on/off, Supports Intelligent PoE.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

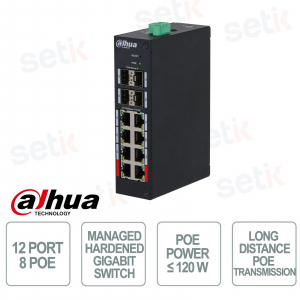

SWITCH DI RETE 12 PORTE HARDENED - 8 PORTE POE + 4 PORTE SFP 1000 Mbps - DAHUA

Dettagli prodotto

- Switch di rete PoE - Dahua
- 8 Porte PoE + 4 SFP 1000 Mbps
- PoE protocollo: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- 120W PoE Power
- Standard supportati: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
- Capacità lista MAC address 8K
- Disegnato per resistere alle alte temperature
- Dimensioni: 152.9 mm × 110.4 mm × 42.0 mm
Scheda tecnica
| Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Included Power Adapter | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port Speed | 10/100 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port Speed | 1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port Uplink Speed | 1 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description of Function Slots | Port1-8:8×RJ45 10/100Mbps(PoE); Port9-12:4×SFP 1000Mbps(Uplink) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reset Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | External power supply: 48–57 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30 °C to +65 °C (+22 °F to +149 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40 °C to +75 °C (–40 °F to +167 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Humidity | 5%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Idling: ≤6 W Full load: 120 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Layer | Layer 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Type | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Capacity | 9.6 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Forwarding Rate | 7.1424 Mpps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Buffer Size | 4.1 Mbit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAC Table Size | 8K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Number | 4094 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Interface | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IPv4 Routes | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3az | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Feature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power | port1-2<=90W,port3-8<=30W,total<=120W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power Consumption Management | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Long Distance PoE Transmission | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Spanning Tree Protocol | STP/RSTP/ERPS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Function | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Link Aggregation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IEEE 802.3x Flow Control | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multicast | IGMP snooping | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DHCP Function | DHCP Client | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security | IEEE 802.1x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Equipment Management | SNMPv1/v2/v3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Statics Protection | Air discharge: 8 kV, Contact discharge: 6 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lighting Protection | Common mode: 4 kV Differential mode: 2 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 152.9 mm × 110.4 mm × 42.0 mm (6.02" × 4.35" × 1.65") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 254.0 mm × 243.0 mm ×86.0 mm (10.00" × 9.57" × 3.39") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing Material | Iron | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Desktop mount; DIN-Rail mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
