The HS4412-8ET-120 from Dahua is a 12-port Hardened network switch with 8 PoE ports + 4 SFPs 1000 Mbps. Power supply IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt. IEEE802.3 communication standard; IEEE802.3u; IEEE802.3x; IEEE802.3ab. PoE Watchdog, transmissions up to 250 meters - MAC Table Size 8K, PoE power on/off, Supports Intelligent PoE.
DAHUA: LOSS LEADER×
 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>
CLEARANCE SALE ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

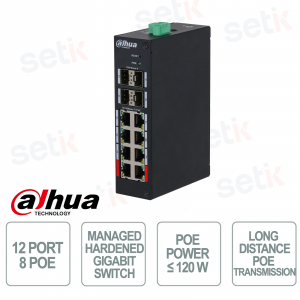

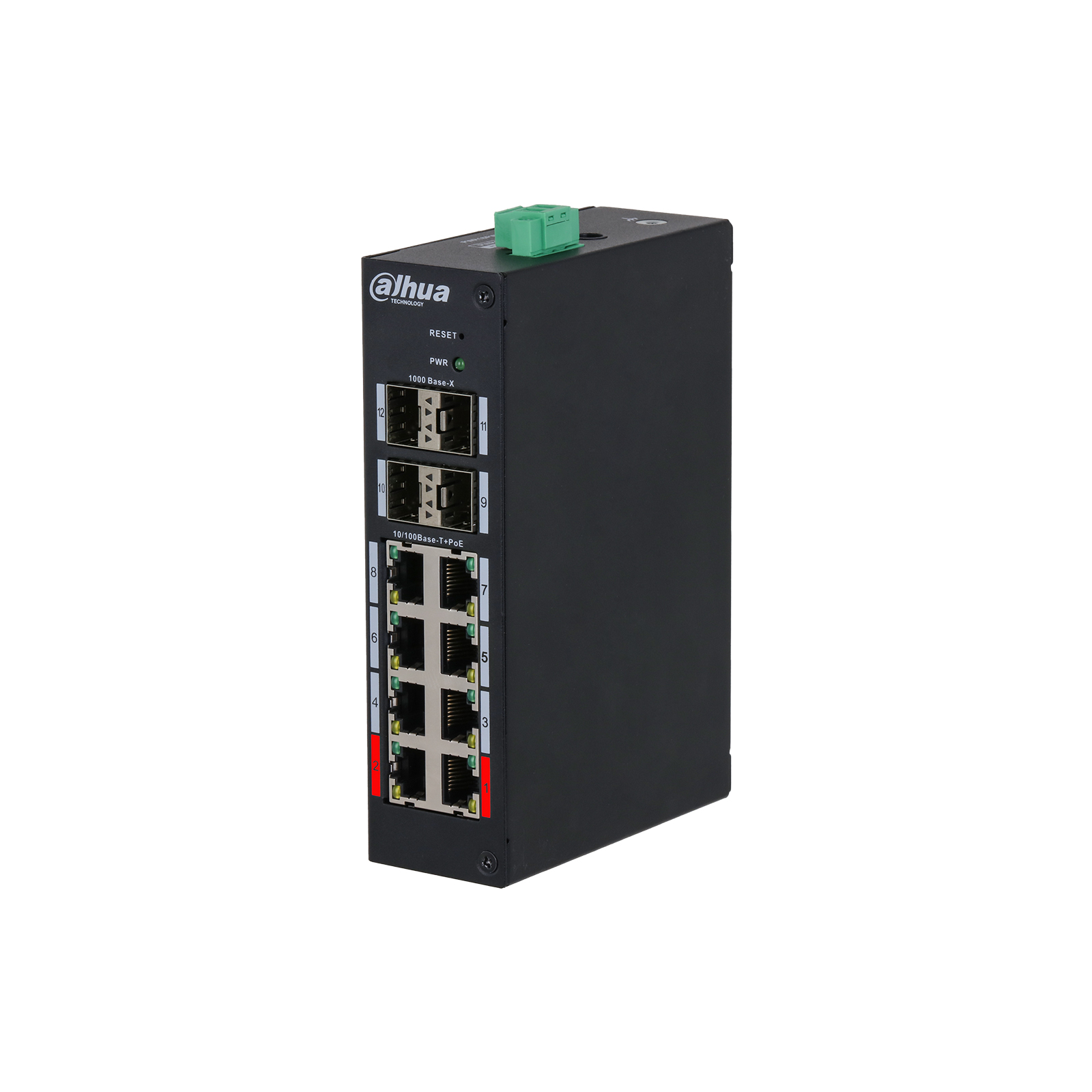

NETWORK SWITCH 12 HARDENED PORTS - 8 POE PORTS + 4 SFP PORTS 1000 Mbps - DAHUA

Product details

- PoE Network Switch - Dahua
 - 8 PoE Ports + 4 SFP 1000 Mbps
 - PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
 - 120W PoE Power
 - Supported standards: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
 - 8K MAC address list capacity
 - Designed to resist high temperatures
 - Dimensions: 152.9mm × 110.4mm × 42.0mm

Data sheet
Basic  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Included Power Adapter  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port  | 8  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port Speed  | 10/100Mbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Port Speed  | 1000Mbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Port Uplink Speed  | 1Gbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Description of Function Slots  |
Port1-8:8×RJ45 10/100Mbps(PoE); Port9-12:4×SFP 1000Mbps(Uplink)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reset Button  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply  | External power supply: 48–57 VDC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature  | –30 °C to +65 °C (+22 °F to +149 °F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity  | 10%–95% (RH), non-condensing  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures  | –40 °C to +75 °C (–40 °F to +167 °F)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity  | 5%–95% (RH), non-condensing  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption  | Idling: ≤6W Full load: 120W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Layers  | Layer 2  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Type  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity  | 9.6Gbps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate  | 7.1424 Mpps  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Size  | 4.1 Mbit  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Table Size  | 8K  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Number  | 4094  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 VLAN Interface  | 10  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IPv4 Routes  | 1  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Standards  | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3az  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Protocol  | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power  | port1-2<=90W,port3-8<=30W,total<=120W  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power Consumption Management  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Pin Assignment  | 1,2,4,5 (V+),3,6,7,8 (V-)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Long Distance PoE Transmission  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spanning Tree Protocol  | STP/RSTP/ERPS  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Function  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Link Aggregation  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IEEE 802.3x Flow Control  | Yes  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multicast  | IGMP snooping  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP Function  | DHCP Client  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security  | IEEE 802.1x  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Equipment Management  |
SNMPv1/v2/v3  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Statics Protection  | Air discharge: 8 kV, Contact discharge: 6 kV  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lighting Protection  | Common mode: 4 kV Differential mode: 2 kV  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions  | 152.9 mm × 110.4 mm × 42.0 mm (6.02" × 4.35" × 1.65") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  | 254.0 mm × 243.0 mm ×86.0 mm (10.00" × 9.57" × 3.39") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material  | Iron  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation  | Desktop mount; DIN-Rail mount  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
