Il TP-Link Omada DR3220v-4G è un gateway DSL rackmount di nuova generazione, progettato per garantire connettività stabile e ad alte prestazioni grazie al supporto 4G+ Cat6 fino a 300 Mbps. Compatibile con VDSL2 35b fino a 350 Mbps e ADSL/ADSL2+, offre massima versatilità per reti professionali e aziendali. Integra un’ampia gamma di porte tra cui Gigabit RJ45, RJ11 DSL/FXS, una porta combo SFP/RJ45 e USB 3.0 per backup LTE o storage. Grazie al supporto multi-WAN con bilanciamento del carico, VPN avanzate e gestione centralizzata Omada SDN, assicura sicurezza, continuità e controllo completo della rete. Una soluzione affidabile e scalabile per chi cerca velocità e protezione in un unico dispositivo.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

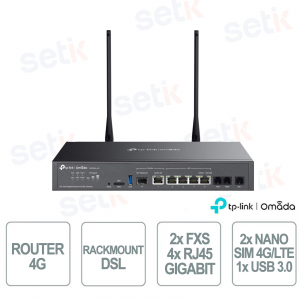

DR3220V-4G | ROUTER 4G+ CAT6 GIGABIT RACKMOUNT DSL - TPLINK OMADA

Il TP-Link Omada DR3220v-4G è un gateway DSL rackmount di nuova generazione che unisce velocità, sicurezza e gestione avanzata. Grazie al supporto 4G+ Cat6 fino a 300 Mbps, garantisce continuità operativa e prestazioni elevate, ideale per reti aziendali e professionali che richiedono stabilità e flessibilità.
Specifiche principali:
- 4G+ Cat6: connettività fino a 300 Mbps con slot Dual Nano SIM.
- DSL ad alte prestazioni: supporto VDSL2 35b fino a 350 Mbps e compatibilità ADSL/ADSL2+
- Porte Gigabit: 4×RJ45 LAN, 1×DSL, 2×FXS e 1 combo SFP/RJ45 per massima versatilità
- USB 3.0: per backup LTE e storage esterno
- Sicurezza avanzata: VPN multiple (IPSec, OpenVPN, WireGuard, SSL) e DPI
- Gestione centralizzata: integrazione completa con Omada SDN e bilanciamento multi-WAN
Ulteriori dettagli
Scheda tecnica
Model | DR3220V-4G |
SICUREZZA | |
Access Control | Source/Destination IP Based Access Control |
Filtering | WEB Group Filtering§ URL Filtering Web Security§ |
ARP inspection | Sending GARP Packets§ ARP Scanning§ IP-MAC Binding§ |
Attack defence | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
CARATTERISTICHE HARDWARE | |
Interfaccia | 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port) 4 × RJ45 Gigabit LAN Ports 1× DSL Port 2× FXS Ports |
Tasto | Reset Button |
Alimentazione | 100-240V/50-60Hz 0.6A |
Slot | 1*USB 3.0 (supports USB LTE dongle and USB Storage) |
Flash | 256 MB NAND |
DRAM | 512 MB DDR4 |
Dimensioni ( L x P x A ) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions are not included) |
Antenna | LTE: Two 3dBi omnidirectional detachable antennas |
Tipo di montaggio | Desktop/ Rack-mounting |
Max Power Consumption | 8.55 W (No Link) 24.4 W (Full load + USB ) |
PRESTAZIONI | |
GRE | Unencrypted: 491.9Mbps Encrypted: 244.3Mbps |
WireGuard VPN | 290Mbps |
Sessioni concorrenti | 150.000 |
New Sessions /Second | 4,050 |
NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
Throughput VPN IPsec | ESP-SHA1-AES256: 569.9Mbps ESP-SHA256-AES256: 543.3Mbps ESP-SHA384-AES256: 549.0Mbps ESP-SHA512-AES256: 561.7Mbps |
OpenVPN | 129.3Mbps |
L2TP VPN Throughput | Unencrypted: 909.4 Mbps Encrypted: 494.9Mbps |
PPTP VPN Throughput | Unencrypted: 897.5 Mbps Encrypted: 190.8 Mbps |
66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
FUNZIONI DI BASE | |
Tipo connessione WAN | Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP |
MAC clone |
Modify WAN Address |
DHCP | DHCP Server DHCPv6 PD Server DHCP Options Customization DHCP Address Reservation Multi-net DHCP Multi-IP Interfaces |
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
FUNZIONALITA' AVANZATE | |
Bandwidth control | IP-Based Bandwidth Control |
Load balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering§ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
Session Limit | IP-based Session Limit |
VPN | |
GRE |
Only in Standalone Mode |
SSL VPN |
50 Tunnels |
VPN IPsec |
100 IPSec VPN Tunnels |
VPN PPTP | PPTP VPN Server PPTP VPN Client (10)*5 50 Tunnels PPTP with MPPE Encryption |
VPN L2TP | L2TP VPN Server L2TP VPN Client (10)*6 50 Tunnels L2TP over IPSec |
OpenVPN | OpenVPN Server OpenVPN Client (5)*6 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode |
WireGuard VPN | ✔ |
GESTIONE | |
Omada App | Yes |
Centralized Management |
Omada Cloud-Based Controller |
Cloud Access | Yes. Require the use of Omada Cloud-Based Controller. |
Servizio | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
Manutenzione | Web Management Interface Remote Management Export & Import Configuration Diagnostics (Ping & Traceroute) NTP Synchronize§ Port Mirroring CLI (only in Standalone Mode) Syslog Support TR-069 (data models of TR-098 and TR181 are supported) |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
OTHER | |
Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) Port: 80/443 Protocol: TCP TDP Server Device discovery Port: 20003 Protocol: UDP VOIP Server Monitor SIP messages Port: 5060 Protocol: UDP DHCP Server Handle DHCP packets Port: 67 Protocol: UDP DNS Handle DNS packets Port: 53 Protocol: TCP/UDP |
ALTRO | |
Certificazione | CE, RoHS |
Contenuto della confezione |
DR3220V-4G |
Requisiti di sistema | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux |
Ambiente | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
