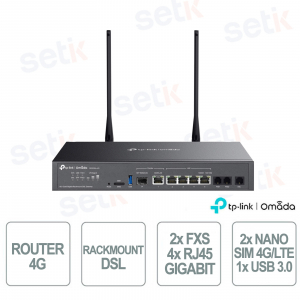

TP-Link DR3220v-4G | Rackmount DSL Gateway with 4G+ Cat6 up to 300 Mbps

TP-Link DR3220v-4G | Rackmount DSL Gateway with 4G+ Cat6 up to 300 Mbps

Neu

The TP-Link Omada DR3220v-4G is a next-generation rackmount DSL gateway, designed to ensure stable and high-performance connectivity thanks to 4G+ Cat6 support up to 300 Mbps . Compatible with VDSL2 35b up to 350 Mbps and ADSL/ADSL2+, it offers maximum versatility for professional and business networks. It integrates a wide range of ports including Gigabit RJ45, RJ11 DSL/FXS, an SFP/RJ45 combo port and USB 3.0 for LTE backup or storage. Thanks to multi-WAN support with load balancing, advanced VPN and centralized Omada SDN management, it ensures security, continuity and complete control of the network. A reliable and scalable solution for those looking for speed and protection in a single device.

Technical data sheet

Artikel-Nr.: DR3220V-4G

Marke: OMADA

EAN: 8885020626797

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Ein Schlüsselaspekt von OMADA ist die Fähigkeit, eine zentrale Verwaltung anzubieten. Dies kann über einen dedizierten Hardware-Controller, einen Software-Controller oder den Omada SDN-Cloud-Service erfolgen, der eine zentralisierte Verwaltung von Netzwerken ermöglicht. Die angebotenen Lösungen sind skalierbar und flexibel, so dass sie sich sowohl für kleine Unternehmensnetzwerke als auch für große Implementierungen an mehreren Standorten eignen.

OMADA umfasst Wireless-Lösungen mit leistungsstarken Wi-Fi-Zugangspunkten, die eine zuverlässige Hochgeschwindigkeitsabdeckung gewährleisten. Darüber hinaus bietet das Unternehmen verwaltete Switches und Gateway-Router mit fortschrittlichen Funktionen für Datenverkehrsmanagement, Sicherheit und Quality of Service (QoS).

Sicherheit ist eine weitere Stärke der OMADA-Lösungen, die fortschrittliche Funktionen wie Firewalls, VPNs und Zugriffskontrolle zum Schutz von Unternehmensnetzwerken umfassen. Darüber hinaus ermöglicht die Cloud-Plattform von OMADA die Fernkonfiguration und -überwachung von Netzwerken und bietet damit große Flexibilität beim IT-Management.

Für Unternehmen bietet OMADA eine Lösung, mit der die Betriebskosten durch ein zentrales Management gesenkt und die Netzwerkwartung vereinfacht werden kann. Hochwertige Hardware-Komponenten sorgen für eine stabile und zuverlässige Leistung, während intuitive Schnittstellen und Management-Tools die Netzwerkadministration auch für technisch nicht versiertes Personal erleichtern.

Zu den Kernprodukten von OMADA gehören Access Points für den Innen- und Außenbereich mit fortschrittlichen Technologien wie Wi-Fi 6, verwaltete Switches mit Layer 2- und Layer 3-Funktionen sowie Sicherheits- und Routing-Geräte für die Verwaltung des Netzwerkverkehrs und den Schutz vor Bedrohungen. OMADA-Lösungen werden häufig in Unternehmen zur Verwaltung interner Netzwerke, in Schulen und Universitäten zur Bereitstellung von Wi-Fi-Verbindungen für Studenten und Mitarbeiter und in Hotels zur Bereitstellung einer stabilen und schnellen Internetverbindung für Gäste eingesetzt.

[short_description] =>

Tp-Link Omada

OMADA ist eine Marke von TP-Link für Netzwerkmanagement-Lösungen für Unternehmen. Das OMADA-System umfasst sowohl Hardware als auch Software zur Zentralisierung der Verwaltung von drahtlosen Netzwerken, Switching und Gateways. Dieser Ansatz wurde entwickelt, um die Kontrolle und Verwaltung von Netzwerkinfrastrukturen zu verbessern, insbesondere in Unternehmensumgebungen.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DR3220V-4G | 4G+ CAT6 GIGABIT RACKMOUNT DSL ROUTER - TPLINK OMADA


Made Omada

The TP-Link Omada DR3220v-4G is a next-generation rackmount DSL gateway that combines speed, security, and advanced management. With support for 4G+ Cat6 up to 300 Mbps, it ensures business continuity and high performance, ideal for business and professional networks that require stability and flexibility.

Main specifications:

- 4G+ Cat6: connectivity up to 300 Mbps with Dual Nano SIM slot.

- High-performance DSL: VDSL2 35b support up to 350 Mbps and ADSL/ADSL2+ compatibility

- Gigabit ports: 4×RJ45 LAN, 1×DSL, 2×FXS and 1 SFP/RJ45 combo for maximum versatility

- USB 3.0: for LTE backup and external storage

- Advanced security: Multiple VPNs (IPSec, OpenVPN, WireGuard, SSL) and DPI

- Centralized management: Full integration with Omada SDN and multi-WAN load balancing

Further details

4G+ Cat6 :
Ultra-fast mobile connectivity up to 300 Mbps with dual Nano SIM slots, ideal for network redundancy and continuity.
DSL port :
VDSL2 35b support up to 350 Mbps and compatibility with ADSL/ADSL2+, perfect for taking advantage of different access technologies.
RJ11 ports :
Integrated for voice (FXS) and DSL functionality, ensuring flexibility in telephony and data applications.
Nano SIM ports:
Dual slot that ensures LTE backup and always-active connections in the event of failover.
Gigabit RJ45 ports :
4 high-speed LANs plus an SFP/RJ45 combo port, for stable and high-performance wired connectivity.
Versatile connectivity :
Multi-WAN with load balancing, advanced VPNs (IPSec, OpenVPN, WireGuard, SSL) and Omada SDN cloud management for complete control.

Technical data sheet

Model DR3220V-4G
SAFETY
Access Control Source/Destination IP Based Access Control
Filtering WEB Group Filtering§
URL Filtering
Web Security§
ARP inspection Sending GARP Packets§
ARP Scanning§
IP-MAC Binding§
Attack defense TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
Interface 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port)
4 × RJ45 Gigabit LAN Ports
1× DSL Port
2× FXS Ports
Key Reset Button
Diet 100-240V/50-60Hz 0.6A
Slot 1*USB 3.0 (supports USB LTE dongle and USB Storage)
Flash 256 MB NAND
DRAM 512 MB DDR4
Dimensions (L x W x H) 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions are not included)
Antenna LTE: Two 3dBi omnidirectional detachable antennas
Mounting type Desktop/Rack-mounting
Max Power Consumption 8.55 W (No Link)
24.4 W (Full load + USB)
PERFORMANCES
GRE Unencrypted: 491.9Mbps
Encrypted: 244.3Mbps
WireGuard VPN 290Mbps
Concurrent sessions 150,000
New Sessions / Second 4,050
NAT (Static IP) 937.2 Mbps / 936.1 Mbps
NAT (DHCP) 945.8 Mbps / 940.6 Mbps
NAT (PPPoE) 942.9 Mbps / 942.9Mbps
NAT (L2TP) 837.4 Mbps / 881.5 Mbps
NAT (PPTP) 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput ESP-SHA1-AES256: 569.9Mbps
ESP-SHA256-AES256: 543.3Mbps
ESP-SHA384-AES256: 549.0Mbps
ESP-SHA512-AES256: 561.7Mbps
OpenVPN 129.3Mbps
L2TP VPN Throughput Unencrypted: 909.4 Mbps
Encrypted: 494.9Mbps
PPTP VPN Throughput Unencrypted: 897.5 Mbps
Encrypted: 190.8 Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps
BASIC FUNCTIONS
WAN Connection Type Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC clone

Modify WAN Address

DHCP DHCP Server
DHCPv6 PD Server
DHCP Options Customization
DHCP Address Reservation
Multi-net DHCP
Multi-IP Interfaces
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FEATURES
Bandwidth control IP-Based Bandwidth Control
Load balance Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering§
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit IP-based Session Limit
VPN
GRE

Only in Standalone Mode

SSL VPN

50 Tunnels

IPsec VPN

100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN PPTP VPN Server
PPTP VPN Client (10)*5
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN L2TP VPN Server
L2TP VPN Client (10)*6
50 Tunnels
L2TP over IPSec
OpenVPN OpenVPN Server
OpenVPN Client (5)*6
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
WireGuard VPN
MANAGEMENT
Omada App Yes
Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access Yes. Require the use of Omada Cloud-Based Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance Web Management Interface
Remote Management
Export & Import Configuration
Diagnostics (Ping & Traceroute)
NTP Synchronize§
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
TDP Server
Device discovery
Port: 20003 Protocol: UDP
VOIP Server
Monitor SIP messages
Port: 5060 Protocol: UDP
DHCP Server
Handle DHCP packets
Port: 67 Protocol: UDP
DNS
Handle DNS packets
Port: 53 Protocol: TCP/UDP
OTHER
Certification CE, RoHS
Package Contents

DR3220V-4G
Power Cord
Ethernet Cable
Phone Cable
Rubber Feet
SIM Card Eject Pin
Rackmount Kit
Antenna Extension Base
Quick Installation Guide

System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
