EAP6230-O - L’Access Point Wi-Fi 6 outdoor offre connessioni ultra-veloci fino a 3 Gbps, ideali per spazi esterni come strutture pubbliche, campus e aziende che necessitano di rete stabile e sicura. Grazie a MU-MIMO e OFDMA, gestisce numerosi dispositivi in contemporanea senza perdita di prestazioni, garantendo roaming continuo e copertura ampia fino a 100 metri. Il design robusto con protezione IP65 e resistenza a scariche elettrostatiche e fulmini assicura affidabilità in condizioni difficili. Installazione semplificata con PoE, gestione remota tramite piattaforma DoLynk Care e sicurezza avanzata con crittografia WPA3 e filtri IP/MAC rendono questo access point la scelta perfetta per ambienti esterni professionali. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

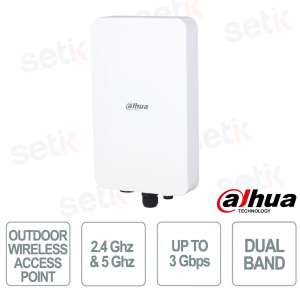

EAP6230-O | ACCESS POINT WIRELESS DA ESTERNO DA PARETE

L’Access Point Wi-Fi 6 outdoor Dahua EAP6230-O garantisce connessioni fino a 3 Gbps, ideale per spazi esterni come aziende, campus e strutture pubbliche che richiedono velocità e stabilità elevate. Con tecnologia MU-MIMO e OFDMA, gestisce più dispositivi senza rallentamenti e assicura copertura ampia fino a 100 metri. Resistente alle intemperie grazie alla protezione IP65 e alla protezione contro scariche elettrostatiche e fulmini, offre sicurezza continua e installazione semplice tramite PoE. La gestione remota tramite piattaforma DoLynk Care consente controllo e aggiornamenti a distanza, rendendo questo dispositivo perfetto per reti outdoor affidabili e scalabili.
Specifiche principali:
- Wi-Fi 6 fino a 3 Gbps con MU-MIMO e OFDMA
- Copertura fino a 100 m e antenne ad alto guadagno
- Doppia banda 2,4/5 GHz per connessione stabile e veloce
- Installazione rapida con PoE e montaggio a palo o parete
- Sicurezza avanzata con WPA3, filtri IP/MAC e gestione remota
Ulteriori dettagli

Scheda tecnica
| Model | EAP6230-O |
| Basic | |
| Device Type |
AP |
| Hardware | |
| WAN Port |
1× RJ-45 10/100/1000/2500 Mbps (PoE In) |
| LAN Port |
1 × RJ-45 10/100/1000 Mbps |
| Power Supply |
802.3 af PoE; |
| Antenna Type |
Omnidirectional |
| Built-in Antenna |
2.4 GHz: 2 × 3.5 dBi; |
| Memory |
DDR: 512 MB |
| Indicator Light | 1 × PWR 1 × SYS 4 × WAN 1 × 2.4G 1 × 5G |
| External Port | 1 × Console |
| Performance | |
| Wireless Standard | 2.4 GHz: IEEE 802.11b/g/n/ax 5 GHz: IEEE 802.11a/n/ac/ax |
| Wireless Transmission Rate | 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps |
| Operating Frequency | 2.4 GHz: 2.484 GHz; 5.150 GHz–5.850GHz |
| Channel Width | 2.4 GHz: 20/40/80 MHz; 5 GHz: 20/40/80/160 MHz |
| 2.4 GHz Antenna Gain | 3.5 dBi |
| 5 GHz Antenna Gain | 6 dBi |
| Max. Output Power | CE EIRP: ≤20 dBm@2400-2483.5 MHz; ≤23 dBm@5150-5250 MHz; ≤23 dBm@5250-5350 MHz; ≤27 dBm@5470-5725 MHz; ≤14 dBm@5725-5850 MHz |
| 2.4 GHz Max Power Output | 26 dBm |
| 5 GHz Max Power Output | 25 dBm |
| Receiver Sensitivity |
11ac VHT20_MCS0: -88 dBm |
| Max. Transmission Distance | 100 m (328.08 ft) |
| Optimal Transmission Distance | 80 m (262.47 ft) |
| SSID Number | 2.4 GHz: 4; 5 GHz: 4 |
| Connected Wireless Terminals | 2.4 GHz: 64; 5 GHz: 64 |
| PoE | PoE In: 802.3af/at (15 W/30 W) |
|
Function |
|
| Equipment Management |
Web; platform; app |
| Network Protocol |
TCP/IP;IPv4;UDP;NTP;DHCP;DNS;QoS;ICMP;ARP;IP Filter;TCP;SMB;NFS;MQTT;802.11k;802.11v;802.11e;WMM;IGMP V3 |
| Operating Mode |
FIT AP |
| Encryption Mode |
No Encryption |
| Firmware Update |
Web update;AC remote update |
| Security Mechanism |
IP address filtering; MAC address filtering |
| MU-MIMO | 2 x 2 |
| Beamforming |
Yes |
| TWT |
No |
| DHCP |
Yes (under gateway mode) |
| NAT |
Yes (under gateway mode) |
| QoS |
Yes |
| DDNS |
No |
| Wireless Repeater |
No |
| MESH |
No |
| Software |
Device Management: setup wizard; network connection method; back up/restore configuration; |
|
Function |
|
| Power Consumption |
Full load: 16 W; |
| Operating Temperature |
–20 °C to +55 °C (–4 °F to +131 °F) |
| Storage Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Humidity |
5%–95% (RH), non-condensing |
| Net Weight |
1.06 kg (2.34 lb) |
| Gross Weight |
1.62 kg (3.57 lb) |
| Product Dimensions | 304 mm × 230 mm × 107 mm (11.97" × 9.06" × 4.01") (L × W × H) |
| Packaging Dimensions |
380 mm × 230 mm × 107 mm (14.96" × 9.06" × 4.01") (L × W × H) |
| Protection |
ip65 |
| Statics Protection |
Air discharge: 8 kV; |
| Lightning Protection |
Common mode: 4 kV; |
| Installation |
Pole mount (recommended) |
| Certifications |
CE |
| Packing List |
1 × Device; |
