EAP6230-O: Fast and Secure Outdoor Wi-Fi 6 Access Point - Dahua

EAP6230-O: Fast and Secure Outdoor Wi-Fi 6 Access Point - Dahua

-57% Neu

EAP6230-O - The outdoor Wi-Fi 6 Access Point offers ultra-fast connections up to 3 Gbps , ideal for outdoor spaces such as public facilities, campuses and companies that require a stable and secure network. Thanks to MU-MIMO and OFDMA , it manages numerous devices simultaneously without performance loss, ensuring continuous roaming and wide coverage up to 100 meters. The rugged design with IP65 protection and resistance to electrostatic discharge and lightning ensures reliability in harsh conditions. Simplified installation with PoE , remote management via the DoLynk Care platform and advanced security with WPA3 encryption and IP/MAC filters make this access point the perfect choice for professional outdoor environments. Dahua

Technical Data Sheet

Artikel-Nr.: EAP6230-O

Marke: Dahua

EAN: 6939554913969

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

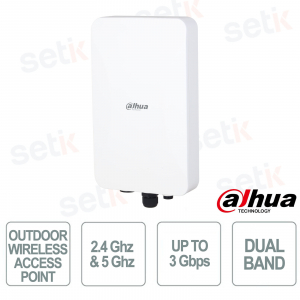

EAP6230-O | OUTDOOR WALL-MOUNTED WIRELESS ACCESS POINT


Dahua

The Dahua EAP6230-O outdoor Wi-Fi 6 access point guarantees connections up to 3 Gbps, ideal for outdoor spaces such as businesses, campuses, and public facilities that require high speed and stability. With MU-MIMO and OFDMA technology, it manages multiple devices without slowing down and ensures wide coverage up to 100 meters. Weatherproof with IP65 protection and protection against electrostatic discharge and lightning, it offers continuous security and easy installation via PoE. Remote management via the DoLynk Care platform allows for remote monitoring and updates, making this device perfect for reliable and scalable outdoor networks.

Main specifications:

- Wi-Fi 6 up to 3 Gbps with MU-MIMO and OFDMA

- Coverage up to 100 m and high gain antennas

- Dual band 2.4/5 GHz for stable and fast connection

- Quick installation with PoE and pole or wall mounting

- Advanced security with WPA3, IP/MAC filters and remote management

Further details

Seamless Roaming:
It allows users to move between different areas while maintaining an always active and stable connection, avoiding interruptions during use.
Wide Coverage :
The built-in high-gain antennas ensure wide and uniform coverage, eliminating dead zones and ensuring a strong signal even over large spaces.
Dual-Band Wi-Fi:
It supports 2.4GHz and 5GHz bands simultaneously, offering flexibility, speed and less interference for a smooth browsing experience.
One Network:
It allows you to easily integrate data networks and video surveillance systems, simplifying management and making the network infrastructure more efficient.
Quick Deployment :
Quick and easy installation thanks to PoE support and a pole or wall mounting design, ideal for quick setups.
Efficient Maintenance:
Intuitive management via the DoLynk Care cloud platform , which enables remote monitoring, firmware updates and troubleshooting .
Security Guarantee:
Complete 24/7 protection with WPA3 encryption, IP and MAC filters and user isolation to protect your network and data from unauthorized access.
EAP6230-O size

Technical data sheet

Model EAP6230-O
Basic
Device Type

AP

Hardware
WAN Port

1× RJ-45 10/100/1000/2500 Mbps (PoE In)

LAN Port

1 × RJ-45 10/100/1000 Mbps

Power Supply

802.3af PoE;
802.3 at PoE;

Antenna Type

Omnidirectional

Built-in Antenna

2.4 GHz: 2 × 3.5 dBi;
5 GHz: 2 × 6 dBi

Memory

DDR: 512 MB

Indicator Light 1 × PWR
1 × SYS
4 × WAN
1 × 2.4G
1 × 5G
External Port 1 × Console
Performance
Wireless Standard 2.4 GHz: IEEE 802.11b/g/n/ax
5 GHz: IEEE 802.11a/n/ac/ax
Wireless Transmission Rate 2.4 GHz: 574 Mbps;
5 GHz: 2402 Mbps
Operating Frequency 2.4 GHz: 2.484 GHz;
5.150 GHz–5.850 GHz
Channel Width 2.4 GHz: 20/40/80 MHz;
5 GHz: 20/40/80/160 MHz
2.4 GHz Antenna Gain 3.5 dBi
5 GHz Antenna Gain 6 dBi
Max. Output Power CE EIRP:
≤20 dBm@2400-2483.5 MHz;
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
2.4 GHz Max Power Output 26 dBm
5 GHz Max Power Output 25 dBm
Receiver Sensitivity

11ac VHT20_MCS0: -88 dBm
11ac VHT20_MCS7: -67 dBm
11ac VHT40_MCS0: -88 dBm
11ac VHT40_MCS7: -64 dBm
11ax HE20_MCS0: -88 dBm
11ax HE20_MCS11: -61 dBm
11ax HE40_MCS0: -88 dBm
11ax HE40_MCS11: -58 dBm

Max. Transmission Distance 100 m (328.08 ft)
Optimal Transmission Distance 80 m (262.47 ft)
SSID Number 2.4 GHz: 4;
5 GHz: 4
Connected Wireless Terminals 2.4 GHz: 64;
5 GHz: 64
PoE PoE In: 802.3af/at (15W/30W)

Function

Equipment Management

Web; platform; app

Network Protocol

TCP/IP;IPv4;UDP;NTP;DHCP;DNS;QoS;ICMP;ARP;IP Filter;TCP;SMB;NFS;MQTT;802.11k;802.11v;802.11e;WMM;IGMP V3

Operating Mode

FIT AP
FAT AP
Gateway mode

Encryption Mode

No Encryption
WPA/WPA2PSK; WPA2/WPA3PSK

Firmware Update

Web update; AC remote update

Security Mechanism

IP address filtering; MAC address filtering

MU-MIMO 2 x 2
Beamforming

Yes

TWT

No

DHCP

Yes (under gateway mode)

NAT

Yes (under gateway mode)

QoS

Yes

DDNS

No

Wireless Repeater

No

MESH

No

Software

Device Management: setup wizard; network connection method; back up/restore configuration;
restore factory defaults; schedule restart; system logs; change password; firmware upgrade; system time; fat/fit mode; cloud platform configuration
AP Management: Wi-Fi settings; VLAN ID configuration; frequency configuration; country/region configuration; 5G-Prior access configuration; scheduled Wi-Fi shutdown
Client Management: MAC ACL; user isolation; limit users that can access

Function

Power Consumption

Full load: 16 W;
Idling: 5.6 W

Operating Temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Storage Temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Operating Humidity

5%–95% (RH), non-condensing

Net Weight

1.06 kg (2.34 lb)

Gross Weight

1.62 kg (3.57 lb)

Product Dimensions 304 mm × 230 mm × 107 mm (11.97" × 9.06" × 4.01") (L × W × H)
Packaging Dimensions

380 mm × 230 mm × 107 mm (14.96" × 9.06" × 4.01") (L × W × H)

Protection

IP65

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lightning Protection

Common mode: 4 kV;
Differential mode: 2 kV

Installation

Pole mount (recommended)
Wall mount (might affect signal coverage)

Certifications

THERE IS

Packing List

1 × Device;
1 × Pole-mounting Kit
1 × Wall-mounting Kit
1 × Waterproof Kit
1 × PoE Adapter
1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Bracket

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
