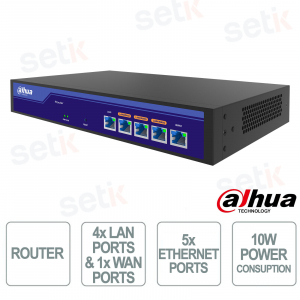

ERC305 | ROUTER ALL IN GIGABIT

Il Dahua ERC305 è un router Gigabit cloud-managed progettato per garantire prestazioni elevate e gestione intelligente della rete. Grazie alla piattaforma DoLynk Care, consente il controllo remoto e l’ottimizzazione automatica della topologia di rete. Offre connessioni stabili e sicure, supporta fino a 128 access point, e integra funzioni avanzate di QoS, firewall e bilanciamento del carico multi-WAN, ideali per aziende e installazioni professionali.
Specifiche principali:
- 5 porte Gigabit Ethernet con gestione LAN/WAN flessibile
- Supporto fino a 128 AP gestibili
- Gestione cloud e controllo remoto tramite DoLynk Care
- Roaming rapido e rete wireless intelligente
- Firewall integrato e VPN per sicurezza avanzata
- QoS dinamico per ottimizzare traffico e larghezza di banda
Ulteriori dettagli

Scheda tecnica
| Model | ERC305 |
| Hardware | |
| Modular Switch/Fixed Switch |
Fixed |
| PoE Power Supply |
No |
| Ethernet Port |
5 |
| Ethernet Port Speed |
10/100/1000 Mbps |
| LAN Port |
4 × 10/100/1000 Mbps (3 LAN port can be switched to WAN port) |
| WAN Port |
1 × 10/100/1000 Mbps |
| Reset Button |
Yes |
| Power Supply |
100–240 VAC, 50 Hz |
| Dual Power Supplies |
No |
| Power Consumption |
<10 W |
|
Function |
|
| 802.11 LAN Protocols | 802.11k;802.11v |
| CAPWAP | Yes |
| Roaming | Yes |
| Forwarding | Local forwarding |
| User Isolation | Yes |
| User Management | Yes |
| STA RSSI Threshold | -90 dBm |
| RF Management | 100%; 50%; 25% |
| WAN Port Function | PPPoE; DHCP; Static IP |
| Multi-WAN Load Balancing | Yes |
| Link Detection | Yes |
| IP Routing | Yes |
| VPN | Yes |
| Multicast | Yes |
| DHCP Function | Yes |
| Security | Firewall |
| ARP | Yes |
| QoS/ACL | Yes |
| Equipment Management | Yes |
|
Performance |
|
| Default Number of Manageable APs | 128 |
| Maximum Number of Manageable APs | 128 |
| Maximum Number of Configurable APs | 128 |
| Users Capacity | 128 |
| Maximum Number of Clients Supported by the Built-in Portal | 128 |
| Maximum Number of Wireless Users | 128 |
| Inter-AC Roaming Switch Time | <20 ms |
| Firewall | 200 Mbps |
| Encryption | 200 Mbps |
| Forwarding Capability | 1000 Mbps |
| CPU Frequency | 880 MHz |
| Processor | 2 |
| MTBF | >250,000 hours |
| Memory | 512 MB |
| Flash | 16 MB |
| MAC Address List | 8196 |
| Entries of MAC Address Filtering Table | 128 |
| IPv4 Forwarding | 1000 Mbps |
| Static Routes | 100 |
| Max. Number of Static DNS Records | 1000 |
| Max. Number of DDNS Records | 1 |
| Static ARP | 128 |
| Dynamic ARP | 8196 |
| ACL | 100 |
| Max. Number of Tunnels | 100 |
| Max. Number of Sessions | 200000 |
| Max. Number of Concurrent Connections | 200000 |
| Max. Number of Virtual Servers | 100 |
| Number of NAT | 100 |
| General | |
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 2 kV Differential mode: 1 kV |
| Net Weight | 1.42 kg (3.13 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |

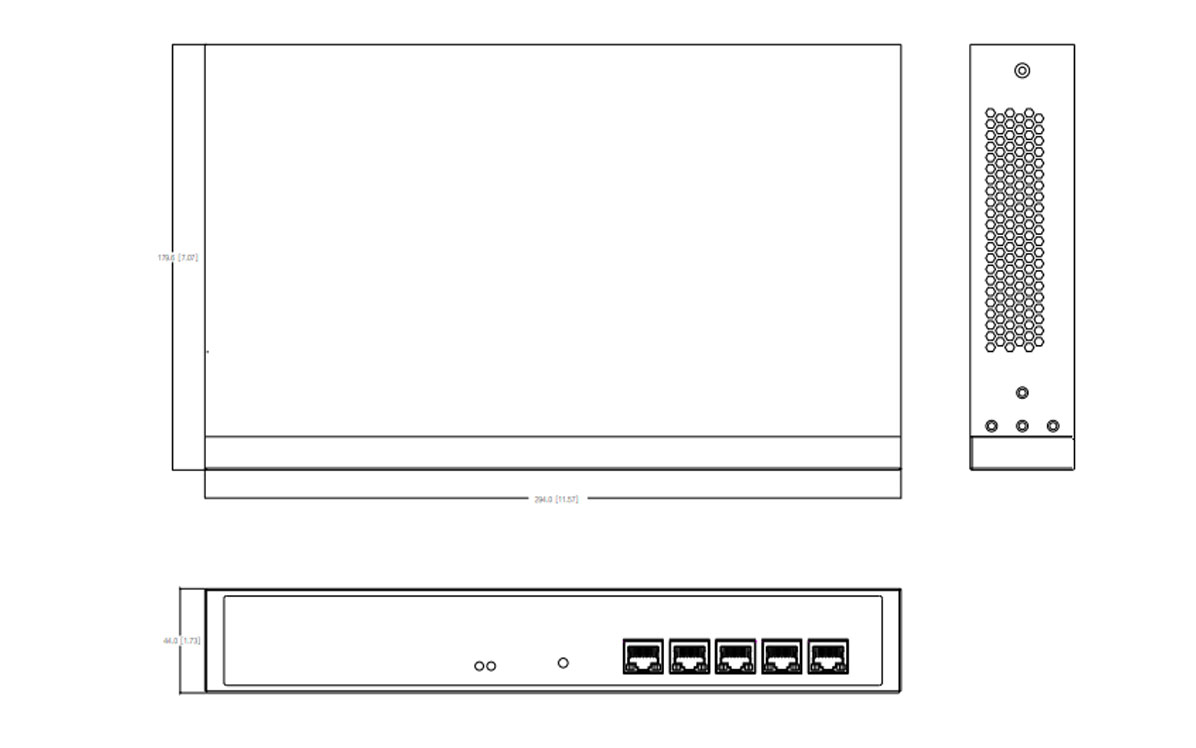

| Product Dimensions | 294 mm × 180 mm × 44 mm (11.57" × 7.09" × 1.73") (L × W × H) |
| Packaging Dimensions | 348 mm × 267 mm × 91 mm (13.70" × 10.51" × 3.58") (L × W × H) |
| Installation | Desktop mount |
| Certifications | CE |
|
Certifications |
|
| Certifications | CE |
