ERC305 | ALL IN GIGABIT ROUTERS


Dahua

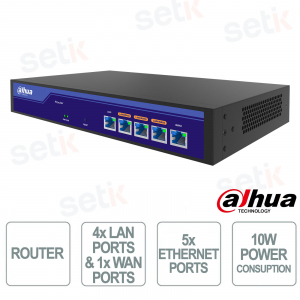

The Dahua ERC305 is a cloud-managed Gigabit router designed for high performance and intelligent network management. Thanks to the DoLynk Care platform, it enables remote control and automatic network topology optimization. It offers stable and secure connections, supports up to 128 access points, and integrates advanced QoS, firewall, and multi-WAN load balancing features, ideal for businesses and professional installations.

Main specifications:

- 5 Gigabit Ethernet ports with flexible LAN/WAN management

- Support up to 128 manageable APs

- Cloud management and remote control via DoLynk Care

- Fast roaming and intelligent wireless network

- Built-in firewall and VPN for advanced security

- Dynamic QoS to optimize traffic and bandwidth

Further details

All-in-One Router:
The ERC305 combines routing and switching functions in a single device, simplifying network architecture and reducing the need for additional hardware. It supports centralized management of access points, offering high performance and intuitive configuration for a consistently efficient network.
Smart Wireless Networking :
The intelligent wireless network system allows for seamless integration with EAP series access points, ensuring extensive Wi-Fi coverage, fast roaming, and unified maintenance. The router automatically optimizes signal parameters based on the environment, providing a stable and continuous connection.
All-Gigabit Ports :
Equipped with 5 Gigabit Ethernet ports (10/100/1000 Mbps) , the DH-ERC305 ensures fast and stable data transfer. The high-speed ports can handle HD video streams and high-bandwidth applications, ideal for business networks and integrated video surveillance systems.
One Network :
It integrates the IT network and CCTV into a single infrastructure, enabling simultaneous management of business devices and security systems. This union simplifies monitoring, reduces operational complexity, and improves the stability of the entire network ecosystem.
Quick Deployment :
Thanks to its intuitive interface and cloud support, the router allows for extremely quick installation and configuration. Plug & Play features reduce setup time and allow you to get your network up and running in minutes, even remotely.
Efficient Maintenance :
Network maintenance is performed visually through automatic topology. Administrators can quickly identify devices, anomalies, or network loads, streamlining management and reducing downtime.
Security Guarantee :
The ERC305 offers continuous protection with a built-in firewall, VPN, and multiple authentication systems. It ensures the security of connected devices and transmitted data, protecting the entire network from intrusions and external threats 24/7.
ERC305 size

Technical data sheet

Model ERC305
Hardware
Modular Switch/Fixed Switch

Fixed

PoE Power Supply

No

Ethernet Port

5

Ethernet Port Speed

10/100/1000 Mbps

LAN Port

4 × 10/100/1000 Mbps (3 LAN port can be switched to WAN port)

WAN Port

1 × 10/100/1000 Mbps

Reset Button

Yes

Power Supply

100–240 VAC, 50 Hz

Dual Power Supplies

No

Power Consumption

Function

802.11 LAN Protocols 802.11k;802.11v
CAPWAP Yes
Roaming Yes
Forwarding Local forwarding
User Isolation Yes
User Management Yes
STA RSSI Threshold -90 dBm
RF Management 100%; 50%; 25%
WAN Port Function PPPoE; DHCP; Static IP
Multi-WAN Load Balancing Yes
Link Detection Yes
IP Routing Yes
VPN Yes
Multicast Yes
DHCP Function Yes
Security Firewall
ARP Yes
QoS/ACL Yes
Equipment Management Yes

Performance

Default Number of Manageable APs 128
Maximum Number of Manageable APs 128
Maximum Number of Configurable APs 128
Users Capacity 128
Maximum Number of Clients Supported by the Built-in Portal 128
Maximum Number of Wireless Users 128
Inter-AC Roaming Switch Time <20 ms="" td="">
Firewall 200 Mbps
Encryption 200 Mbps
Forwarding Capability 1000 Mbps
CPU Frequency 880 MHz
Processor 2
MTBF >250,000 hours
Memory 512 MB
Flash 16 MB
MAC Address List 8196
Entries of MAC Address Filtering Table 128
IPv4 Forwarding 1000 Mbps
Static Routes 100
Max. Number of Static DNS Records 1000
Max. Number of DDNS Records 1
Static ARP 128
Dynamic ARP 8196
ACL 100
Max. Number of Tunnels 100
Max. Number of Sessions 200000
Max. Number of Concurrent Connections 200000
Max. Number of Virtual Servers 100
NAT Number 100
General
Operating Temperature –20 °C to +55 °C (–4 °F to +131 °F)
Operating Humidity 5%–95% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to 158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 2 kV
Differential mode: 1 kV
Net Weight 1.42 kg (3.13 lb)
Gross Weight 1.86 kg (4.10 lb)
Product Dimensions 294 mm × 180 mm × 44 mm (11.57" × 7.09" × 1.73") (L × W × H)
Packaging Dimensions 348 mm × 267 mm × 91 mm (13.70" × 10.51" × 3.58") (L × W × H)
Installation Desktop mount
Certifications THERE IS

Certifications

Certifications THERE IS
